Electrical Installation

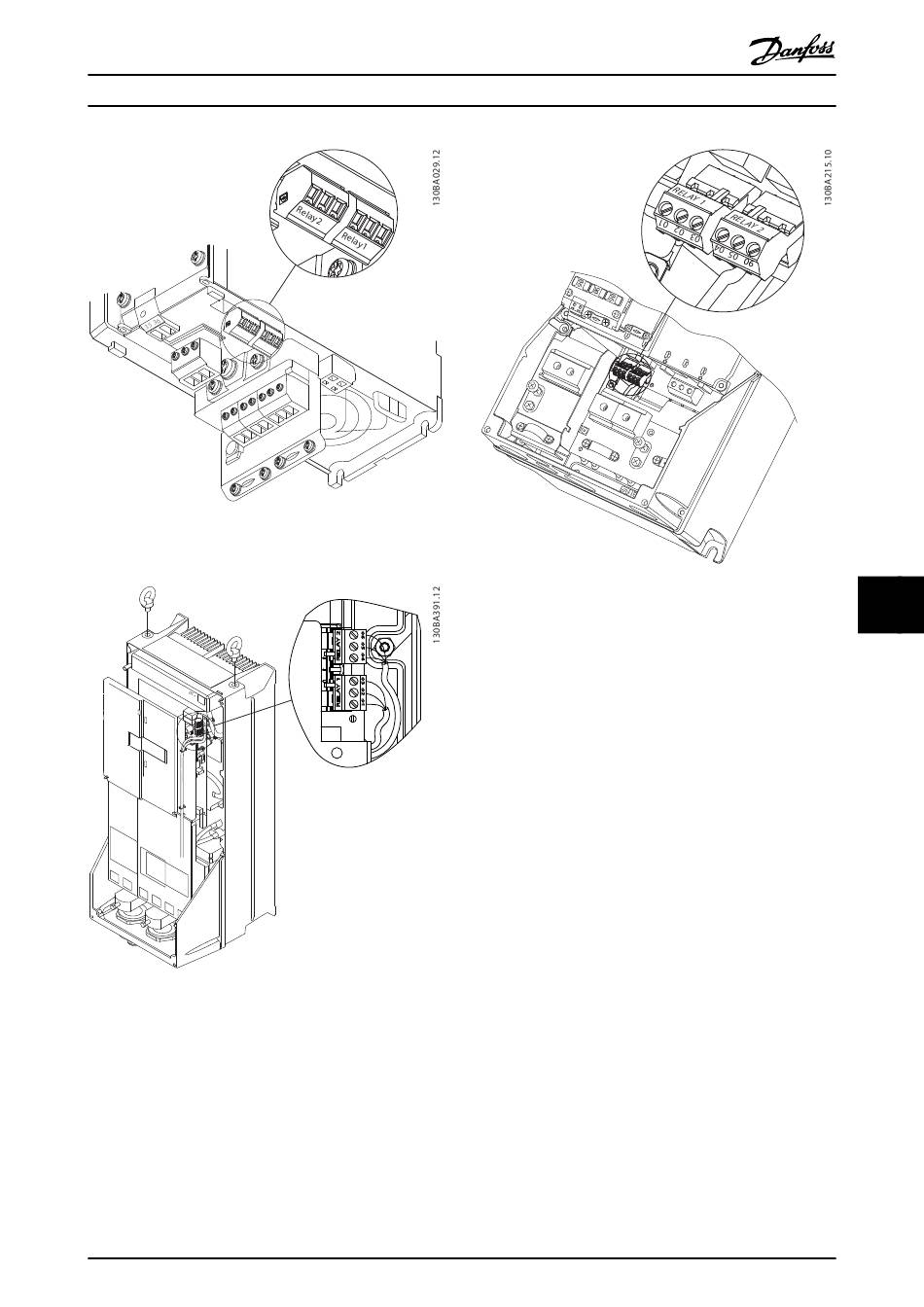

Illustration 9.42 Terminals for Relay Connection
(Enclosure Types A1, A2 and A3).
Illustration 9.43 Terminals for Relay Connection
(Enclosure Types C1 and C2).
®
VLT
AutomationDrive FC 301/FC 302 Design Guide, 0.25-75 kW
Illustration 9.44 Terminals for Relay Connection
(Enclosure Types A5, B1 and B2).
MG33BF02 - Rev. 2013-12-20
9
9
137
