Product Features
4.3 Danfoss VLT
®
Danfoss VLT
and cost-efficient frequency converter solution, mainly for
conveyors. The concept consists of the VLT
OneGearDrive
®
302 or VLT Decentral Drive FCD 302.
4 4
OneGearDrive is basically a permanent magnet motor with
a bevel gear. The bevel gear can be delivered with
different gear ratios.
P1

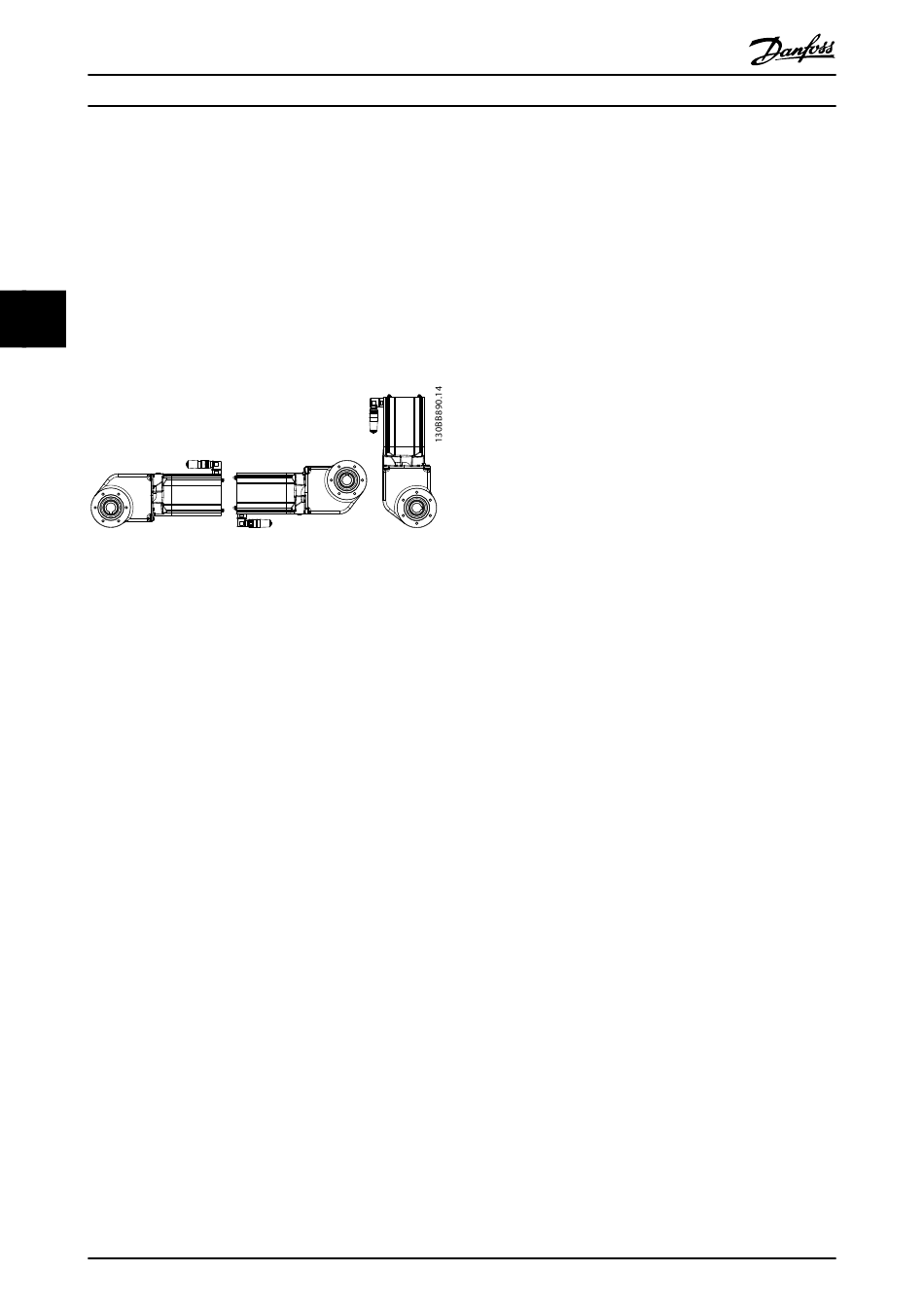

Illustration 4.8 OneGearDrive
The OneGearDrive can be driven by VLT
FC 302 and VLT
power sizes dependent on demands of the actual
application:
•
0.75 kW
•
1.1 kW
•
1.5 kW
•
2.2 kW
•
3.0 kW
When [1] PM, non salient SPM has been selected in in either
FC 302 or FCD 302, the OneGearDrive can be selected in
1-11 Motor Model, and the recommended parameters are
set automatically.
For further information, refer to the VLT
FC 301/FC 302 Programming Guide, the VLT
Selection Guide, and www.danfoss.com/BusinessAreas/Drives-
Solutions/VLTFlexConcept/
44
® ®
FlexConcept
®
FlexConcept is an energy efficient, flexible
® ®
driven by the VLT AutomationDrive FC
P2
®
AutomationDrive
®
Decentral Drive FCD 302 in the folllowing
®
AutomationDrive
®
®
VLT AutomationDrive FC 301/FC 302 Design Guide, 0.25-75 kW
®
P3
OneGearDrive
