11.2.10 VLT
The C Option Adapter MCF 106 makes it possible to add
an additional B option to the frequency converter. One A
and one B option can be installed in the standard A and B
slots of the control card and up to 2 B options can be
installed in the C Option Adapter.
For further information, see the VLT
300, C Option Adapter MCF 106 Installation Instructions.

11.3 Motion Control Options

Ordering
Motion Control Options (MCO) are supplied either as
option cards for field installation or as built-in options. For
retrofit, purchase a mounting kit. Each enclosure has its
own mounting kit. MCO 3xx is to be used in slot C0, but
can be combined with another option in slot C1.
Mounting kit depending on enclosure type
Bookstyle
A2 and A3 (40 mm for one C option)
A2 and A3 (60 mm for C0 + C1 option)
B3 (40 mm for one C option)
B3 (60 mm for C0 + C1 option)
Compact
A5
B, C, D, E and F (except B3)
11 11
Table 11.4 Mounting Kit Ordering Numbers
Technical specifications
For enclosures A5, B1 and B2 all MCO 3xx terminals are
located next to the control card. Remove the front cover
to get access.
MCO control terminals are plug connectors with screw
terminals. Terminals X55, X56, X57, X58 and X59 are
duplicated to be used for both bookstyle and compact
enclosures.
168
VLT
®
C Option Adapter MCF 106
®
AutomationDrive FC
®
AutomationDrive FC 301/FC 302 Design Guide, 0.25-75 kW
1
X55
X56
Order no.
X57
130B7530
130B7531
X58
130B1413
130B1414
130B7532
X59
130B7533
1 Terminal block for bookstyle
2 Terminal block for compact
X55 Encoder 2
X56 Encoder 1
X57 Digital inputs
X58 24 V DC supply
X59 Digital outputs
X62 MCO CAN Bus
X60 Debug connections (RS-485)

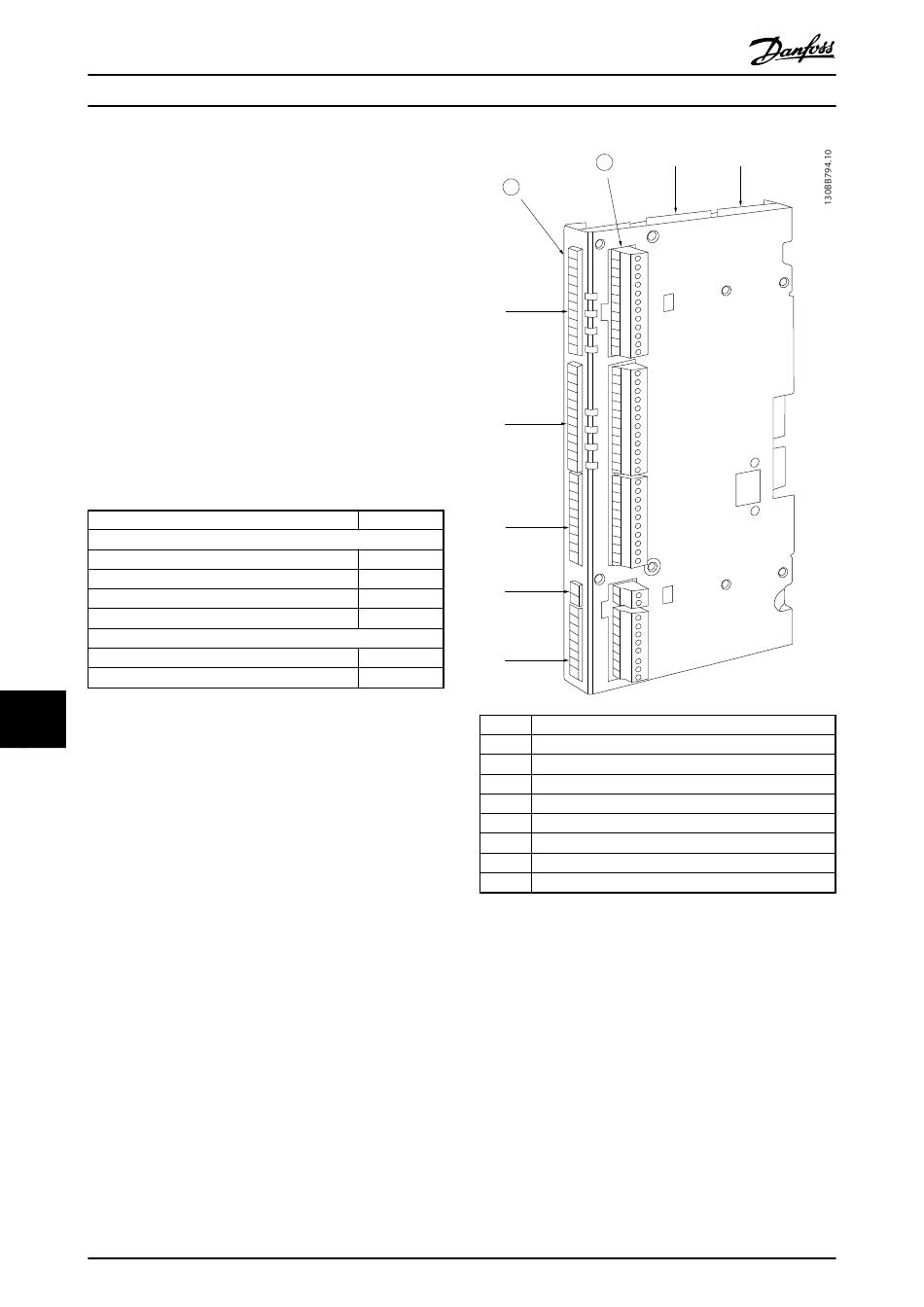

Illustration 11.22 Location of Terminal Blocks
