11.4.8 Mounting Bracket for Enclosure
Types A5, B1, B2, C1 and C2
Step 1

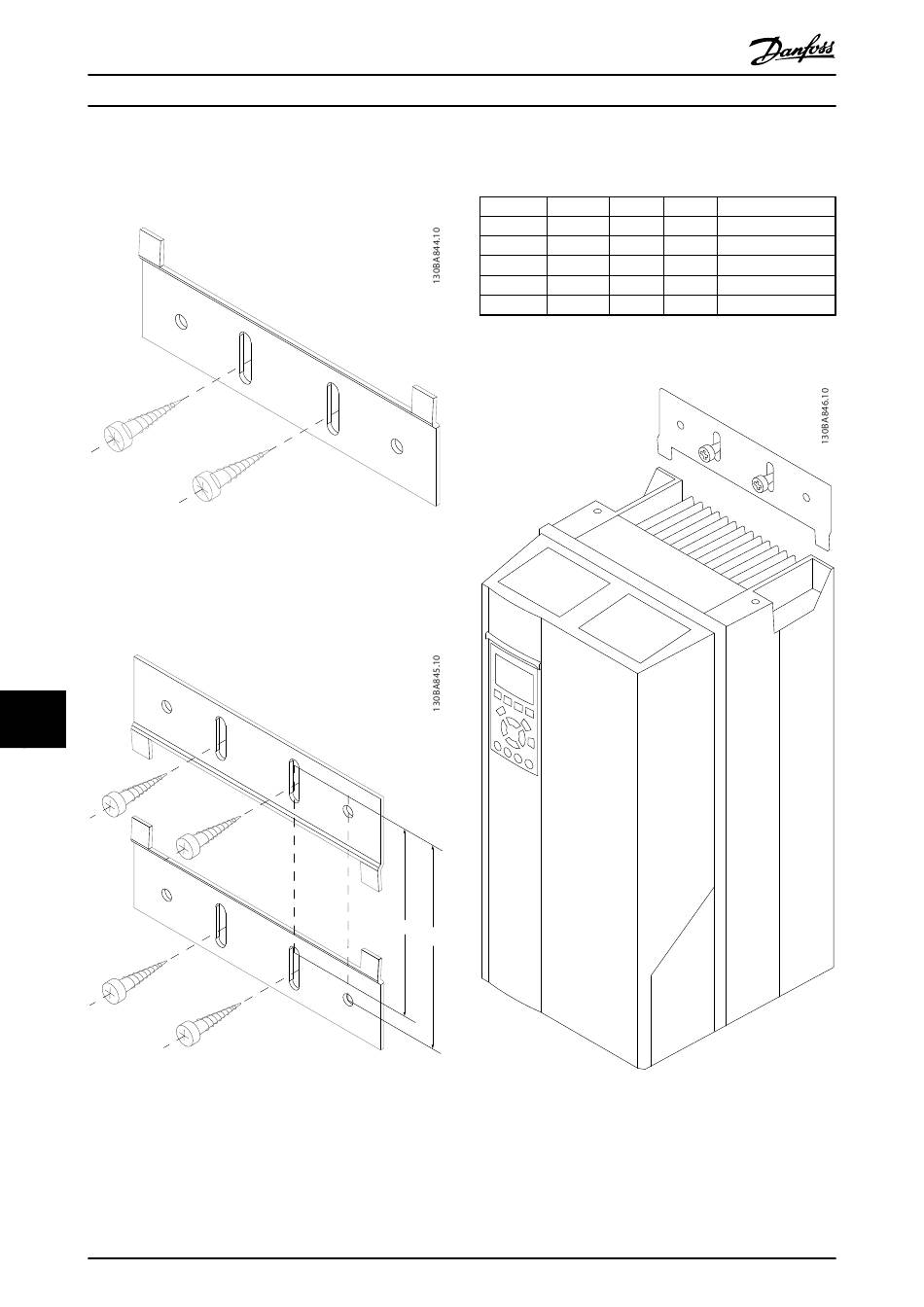

Illustration 11.30 Lower Bracket
Position the lower bracket and mount it with screws. Do
not tighten the screws completely since this will make it
difficult to mount the frequency converter.
Step 2
11 11
Illustration 11.31 Upper Bracket
174
®
VLT AutomationDrive FC 301/FC 302 Design Guide, 0.25-75 kW
Measure distance A or B, and position the upper bracket,
but do not tighten it. See dimensions in Table 11.16.
Enclosure
A5
B1
B2
B3
B4
Table 11.16 Details
Step 3
A
B
Illustration 11.32 Positioning
MG33BF02 - Rev. 2013-12-20
IP A [mm] B [mm] Ordering number
55/66 480 495
21/55/66 535 550
21/55/66 705 720
21/55/66 730 745
21/55/66 820 835
130B1080
130B1081
130B1082
130B1083
130B1084
