Selection

4 Selection

4.1 Options and Accessories

4.1.1 Local Control Panel (LCP)

For detailed information on programming, see VLT
4 4
Drive FC 51 Programming Guide.
NOTICE
The frequency converter can also be programmed from a
PC via RS485 port by installing the MCT 10 Set-up
Software.
This software can either be ordered using code number
130B1000 or downloaded from the Danfoss website:
www.danfoss.com/BusinessAreas/DrivesSolutions/software-
download

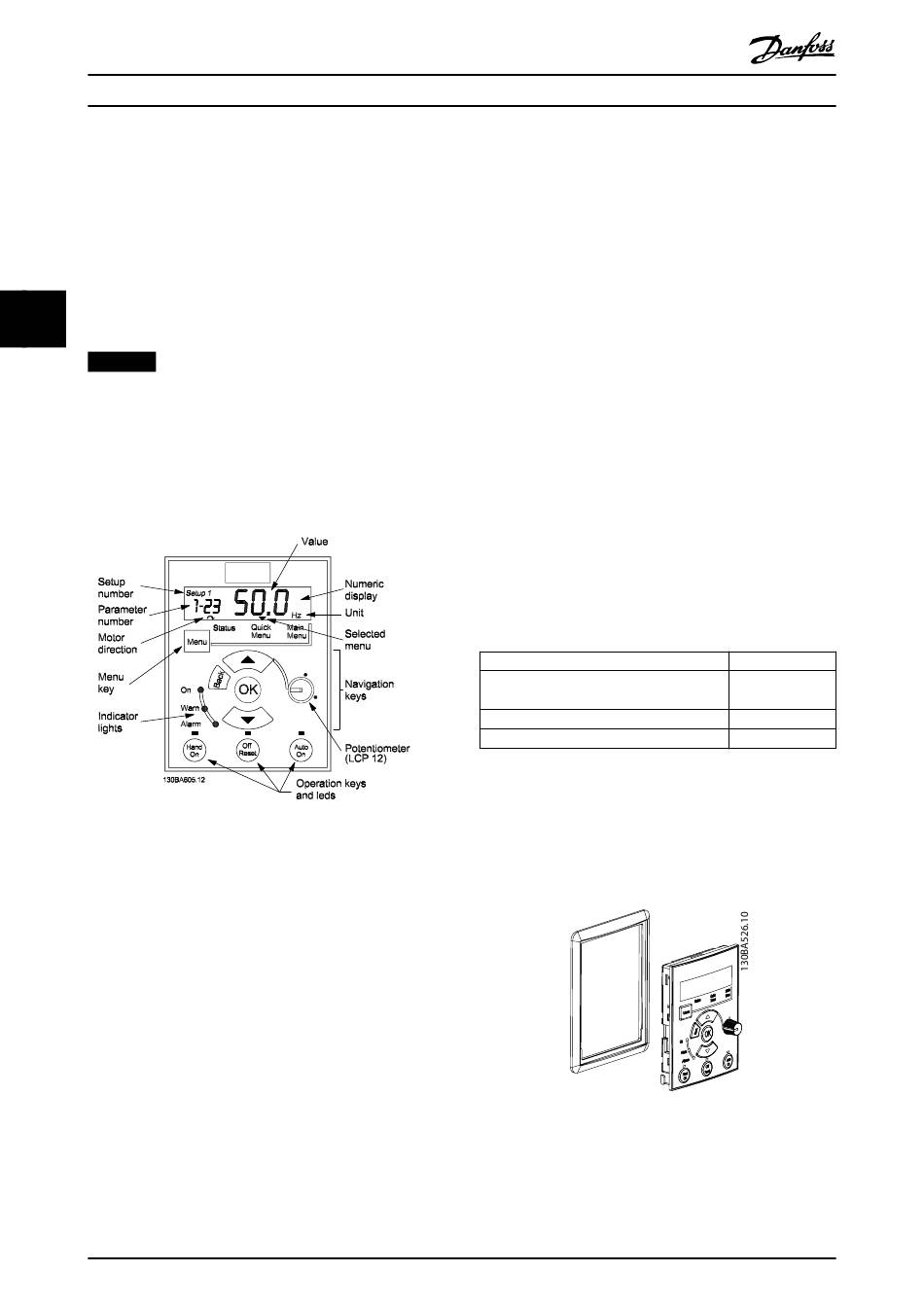

Illustration 4.1 Description of LCP Keys and Display
Press [Menu] to select one of the following menus:
Status
For readouts only.
Quick Menu
For access to Quick Menus 1 and 2.
Main Menu
For access to all parameters.
Navigation keys
[Back]: For moving to the previous step or layer in the
navigation structure.
▲ ▼
[ ] [ ]: For maneuvering between parameter groups,
parameters and within parameters.
[OK]: For selecting a parameter and for accepting changes
to parameter settings.
26
®
VLT Micro Drive FC 51
Operation keys
A yellow indicator light above the operation keys indicates
the active key.
®
Micro
[Hand On]: Starts the motor and enables control of the
frequency converter via the LCP.
[Off/Reset]: Stops the motor (off). If in alarm mode, the
alarm is reset.
[Auto On]: The frequency converter is controlled either via
control terminals or serial communication.
[Potentiometer] (LCP 12): The potentiometer works in 2
ways:
In auto mode the potentiometer acts as an extra
programmable analog input.
In hand-on mode, the potentiometer controls local
reference.

4.1.2 Remote Mounting Kit for LCP

The LCP can be moved to the front of a cabinet by using
the remote built-in kit. The enclosure is IP55.
Enclosure
Maximum cable length between LCP and
unit
Communication standard:
Ordering number
Table 4.1 Technical Data
4.1.3 FC 51 Remote Mounting Kit Mounting
Step 1
Fit the gasket on the LCP in the frequency converter.
Illustration 4.2 Fit Gasket on LCP
Danfoss A/S © 01/2016 All rights reserved.
Instruction
IP55 front
3 m
RS485
132B0102
