Programming Of Speed Control - Danfoss VLT AutomationDrive FC 301 Design Manual

Application Examples
12 13
Start
External
24 VDC
+
10 10
Illustration 10.6 External Electro-mechanical Brake
150
18 19 27 29 32 33 20 37
I max 0.1 Amp
-
Mechanical Brake
Connection
®
VLT AutomationDrive FC 301/FC 302 Design Guide, 0.25-75 kW

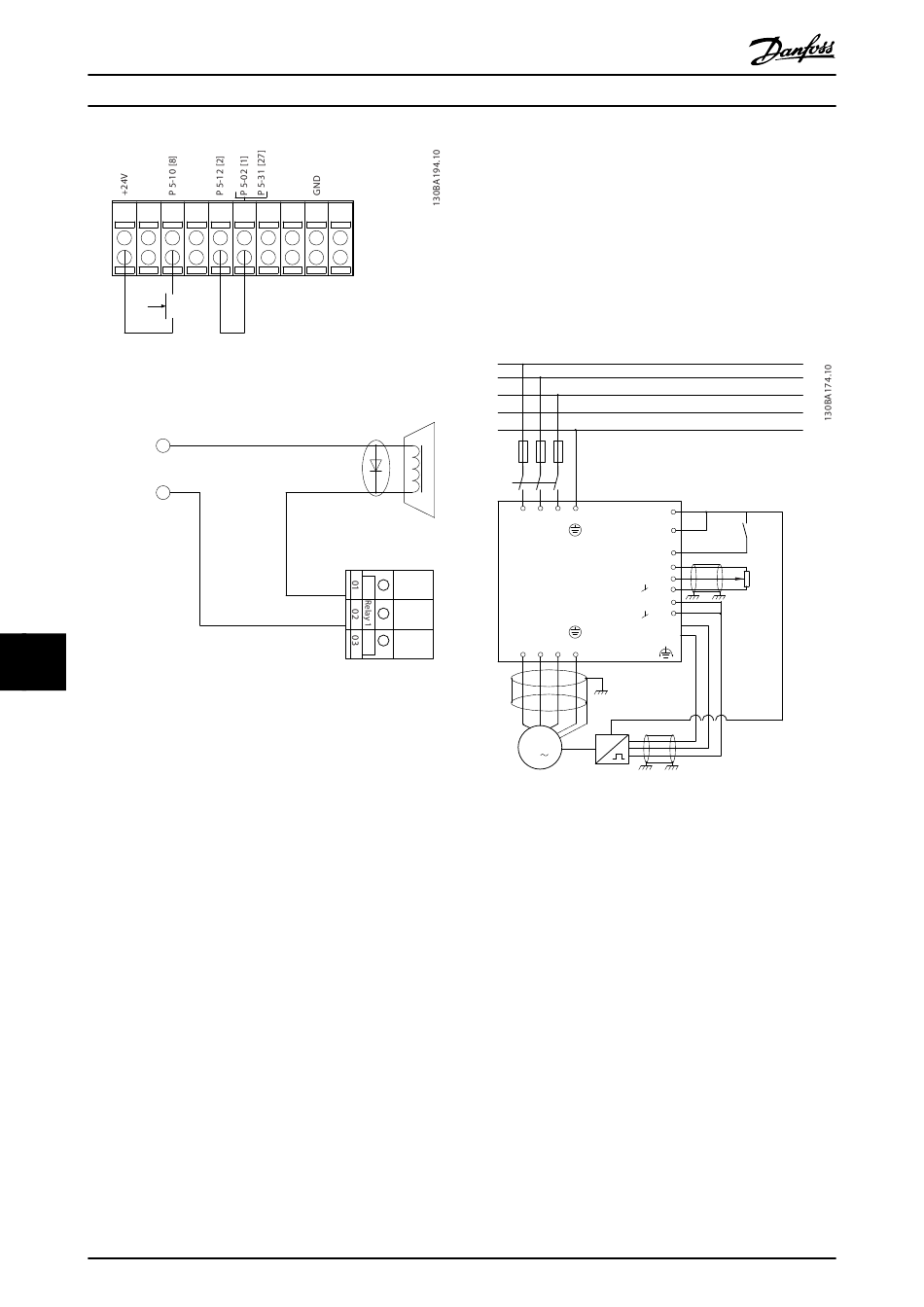

10.1.3 Programming of Speed Control

The required motor speed is set via a potentiometer
connected to terminal 53. The speed range is 0 to 1500
RPM corresponding to 0 to 10 V over the potentiometer.
Starting and stopping is controlled by a switch connected
to terminal 18. The Speed PID monitors the actual RPM of
the motor by using a 24 V (HTL) incremental encoder as
feedback. The feedback sensor is an encoder (1024 pulses
per revolution) connected to terminals 32 and 33.
L1
L2
L3
N
PE
F1
91 92 93 95
L1 L2
P 5-40 [0] [32]
U
96 97
Illustration 10.7 Example - Speed Control Connections
