11.2.7 VLT
The MCB 113 adds 7 digital inputs, 2 analog outputs and 4
SPDT relays to the standard I/O of the frequency converter
for increased flexibility and to comply with the German
11 11
NAMUR NE37 recommendations.
The MCB 113 is a standard C1 option for the VLT
AutomationDrive and is automatically detected after
mounting.
1 2 3 4 1
X45/ X48/

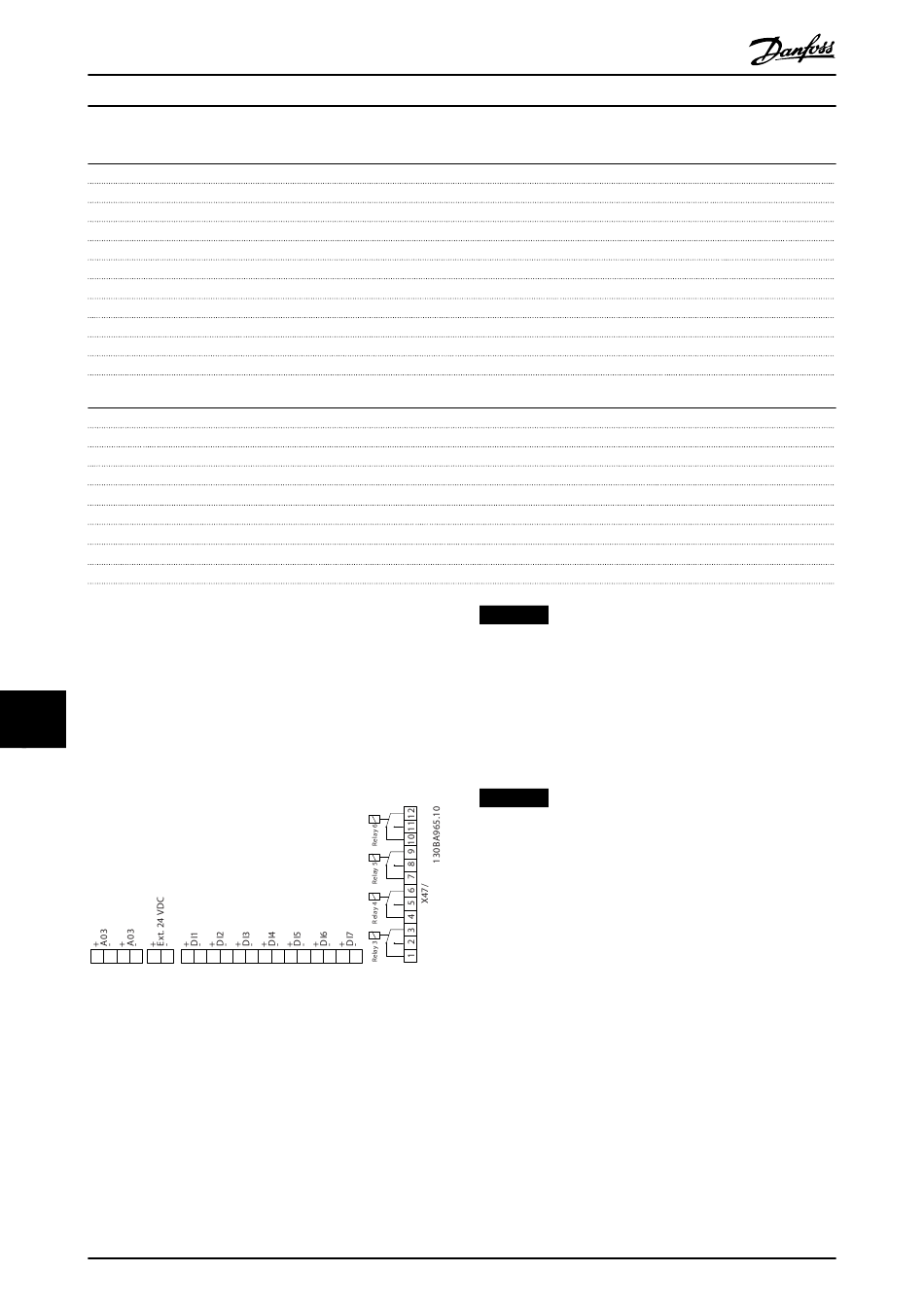

Illustration 11.17 Electrical Connections of MCB 113
MCB 113 can be connected to an external 24 V on X58/ to
ensure galvanical isolation between the VLT
AutomationDrive and the option card. If galvanical
isolation is not needed, the option card can be supplied
through internal 24 V from the frequency converter.
162
®
Extended Relay Card MCB 113
2 1 2 3 4 5 6 7 8 9 10 11 12 13 14
X46/
®
VLT AutomationDrive FC 301/FC 302 Design Guide, 0.25-75 kW
NOTICE
It is OK to combine 24 V signals with high voltage
signals in the relays as long as there is one unused relay
in-between.
To setup MCB 113, use parameter groups 5-1* Digital input,
®
6-7* Analog Output 3, 6-8* Analog output 4, 14-8* Options,
5-4* Relays and 16-6* Inputs and Outputs.
NOTICE
In parameter group 5-4* Relay, Array [2] is relay 3, array
[3] is relay 4, array [4] is relay 5 and array [5] is relay 6
®
MG33BF02 - Rev. 2013-12-20
-20 °C to +60 °C
EN 60068-2-1 Dry heat
5-95%, no condensation permissible
10 to 1000 Hz 1.14 g
2 for maintenance cycle of 2 years
1 for maintenance cycle of 3 years
4.10 *10
8494 FIT
934 FIT
6000 V
III
2
690 V
500 V
50 g
0
-3
78%
