Programming

4 Programming

4.1 Local Control Panel (LCP)

NOTICE
The frequency converter can also be programmed from a
PC via the RS-485 COM port by installing the MCT 10
4 4
Set-up Software. Refer to chapter 1.2.1 MCT 10 Set-up
Software Support for more details about the software.
The LCP is divided into 4 functional sections.
A. Display
B. Menu key
C. Navigation keys and indicator lights (LEDs)
D. Operation keys and indicator lights (LEDs)
1
2
3
A
4
B
6
C
10
7
8
9
D

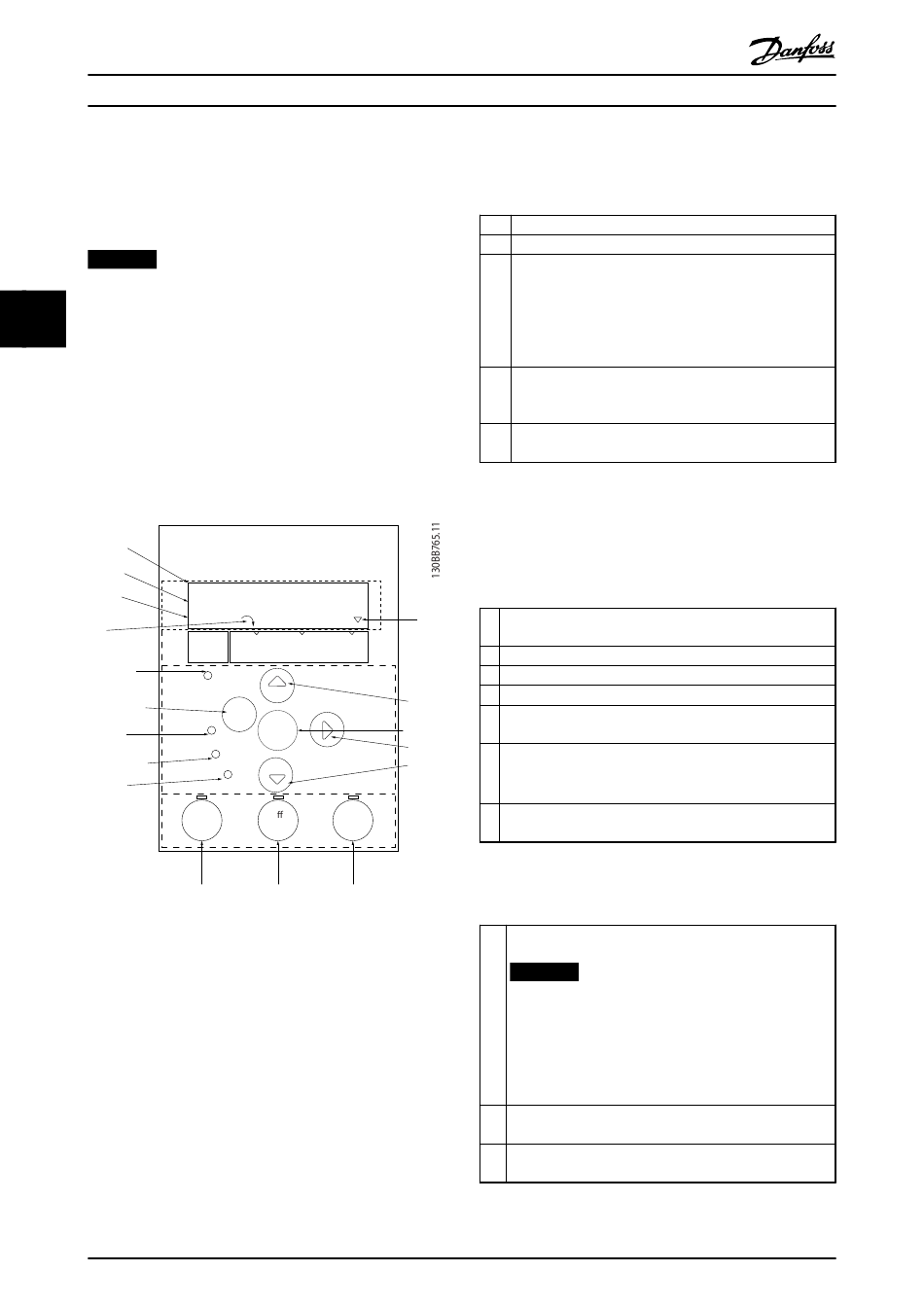

Illustration 4.1 Local Control Panel (LCP)
A. Display
The LCD-display is back-lit with 2 alphanumeric lines. All
data is displayed on the LCP.
Illustration 4.1 describes the information that can be read
from the display.
24
Quick Guide
1-20 Motor Power
[5] 0.37kW - 0.5HP
Setup 1
Main
Status Quick
Menu
Menu
Menu
Com.
Back
On
OK
Warn.
Alarm
Hand O Auto
On Reset On
13 14 15
Danfoss A/S © 08/2014 All rights reserved.
1 Parameter number and name.
2 Parameter value.
3 Set-up number shows the active set-up and the edit set-
up. If the same set-up acts as both active and edit set-up,
only that set-up number is shown (factory setting). When
active and edit set-up differ, both numbers are shown in
the display (set-up 12). The number flashing, indicates the
edit set-up.
4 Motor direction is shown to the bottom left of the display
– indicated by a small arrow pointing either clockwise or
counterclockwise.
5 The triangle indicates if the LCP is in status, quick menu or
main menu.
Table 4.1 Legend to Illustration 4.1
B. Menu key
Press [Menu] to select between status, quick menu or main
menu.
C. Navigation keys and indicator lights (LEDs)
6 Com LED: Flashes when bus communication is communi-
5
cating.
7 Green LED/On: Control section is working correctly.
8 Yellow LED/Warn.: Indicates a warning.
9 Flashing Red LED/Alarm: Indicates an alarm.
11
10 [Back]: For moving to the previous step or layer in the
12
navigation structure.
11
▲ ▼
11 [
] [ ] [►]: For navigating among parameter groups,
11
parameters and within parameters. They can also be used for
setting local reference.
12 [OK]: For selecting a parameter and for accepting changes to
parameter settings.
Table 4.2 Legend to Illustration 4.1
D. Operation keys and indicator lights (LEDs)
13 [Hand On]: Starts the motor and enables control of the
frequency converter via the LCP.
NOTICE
[2] coast inverse is the default option for
5-12 Terminal 27 Digital Input. This means that
[Hand On] does not start the motor if there is no
24 V supply to terminal 27. Connect terminal 12 to
terminal 27.
14 [Off/Reset]: Stops the motor (Off). If in alarm mode, the
alarm is reset.
15 [Auto On]: Frequency converter is controlled either via
control terminals or serial communication.
Table 4.3 Legend to Illustration 4.1
