Installation
2.

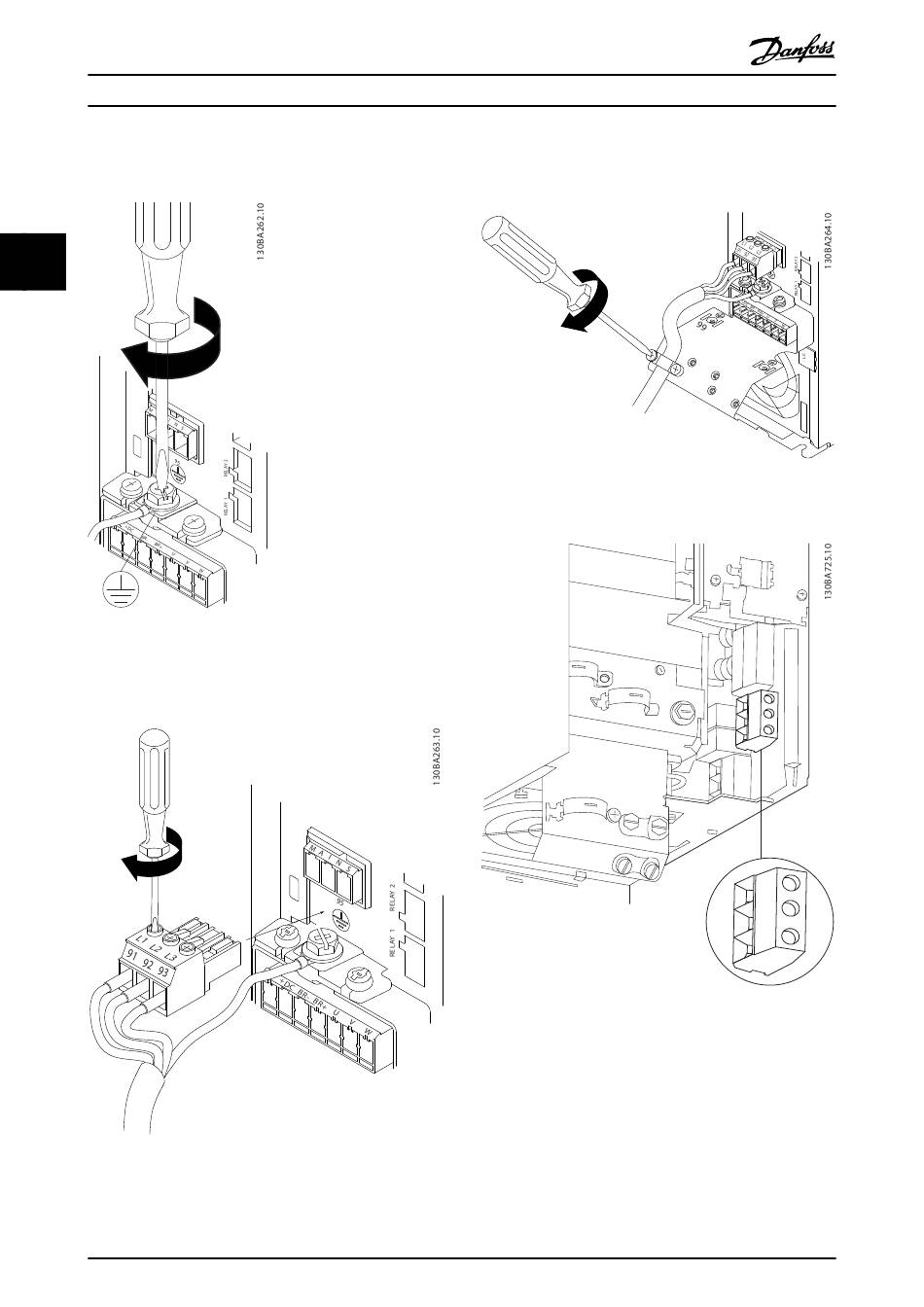

Mount the ground cable, as shown in
Illustration 3.9.
3
3
Illustration 3.9 Mounting the Ground Cable
3.
Insert the mains cables to the mains plug and
tighten the screws, as shown in Illustration 3.10.
Illustration 3.10 Mounting the Mains Plug
14
Quick Guide
4.
Illustration 3.11 Mounting the Support Bracket
Relays and terminals on H10 enclosure
Illustration 3.12 H10 Enclosure
IP20, 600 V, 11-15 kW (15-20 HP)
Danfoss A/S © 08/2014 All rights reserved.
Mount the support bracket across the mains
cables and tighten the screws, as shown in
Illustration 3.11.
MG18A602
