Danfoss FC 101 Quick Manual page 15

Installation

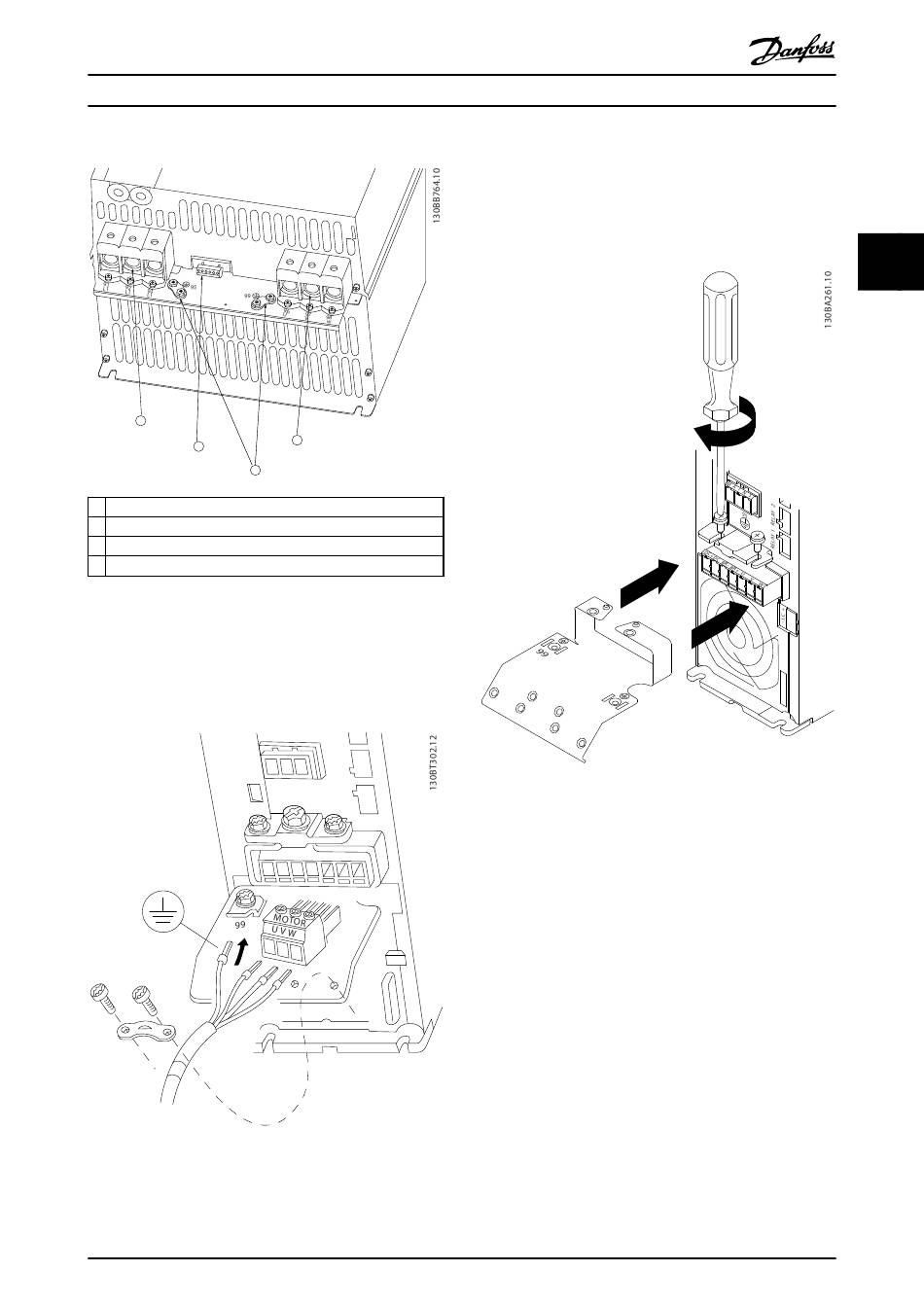

Relays and terminals on H8 enclosure
1
2
3
1 Mains
2 Relays
3 Ground
4 Motor
Illustration 3.6 H8 Enclosure
IP20, 380-480 V, 90 kW (125 HP)
IP20, 200-240 V, 37-45 kW (50-60 HP)
IP20, 525-600 V, 75-90 kW (100-125 HP)
Connecting to mains and motor for H9 enclosure
Illustration 3.7 Connecting the Frequency Converter to the
Motor, H9 Enclosure
IP20, 600 V, 2.2-7.5 kW (3-10 HP)
MG18A602
Quick Guide
4
MOTOR
Danfoss A/S © 08/2014 All rights reserved.
Complete the following steps to connect the mains cables
for H9 enclosure. Use the tightening torques described in
chapter 3.2.1 Electrical Installation in General.
1. Slide the mounting plate into place and tighten
the 2 screws, as shown in Illustration 3.8.
Illustration 3.8 Mounting the Mounting Plate
3 3
13
