6 Information

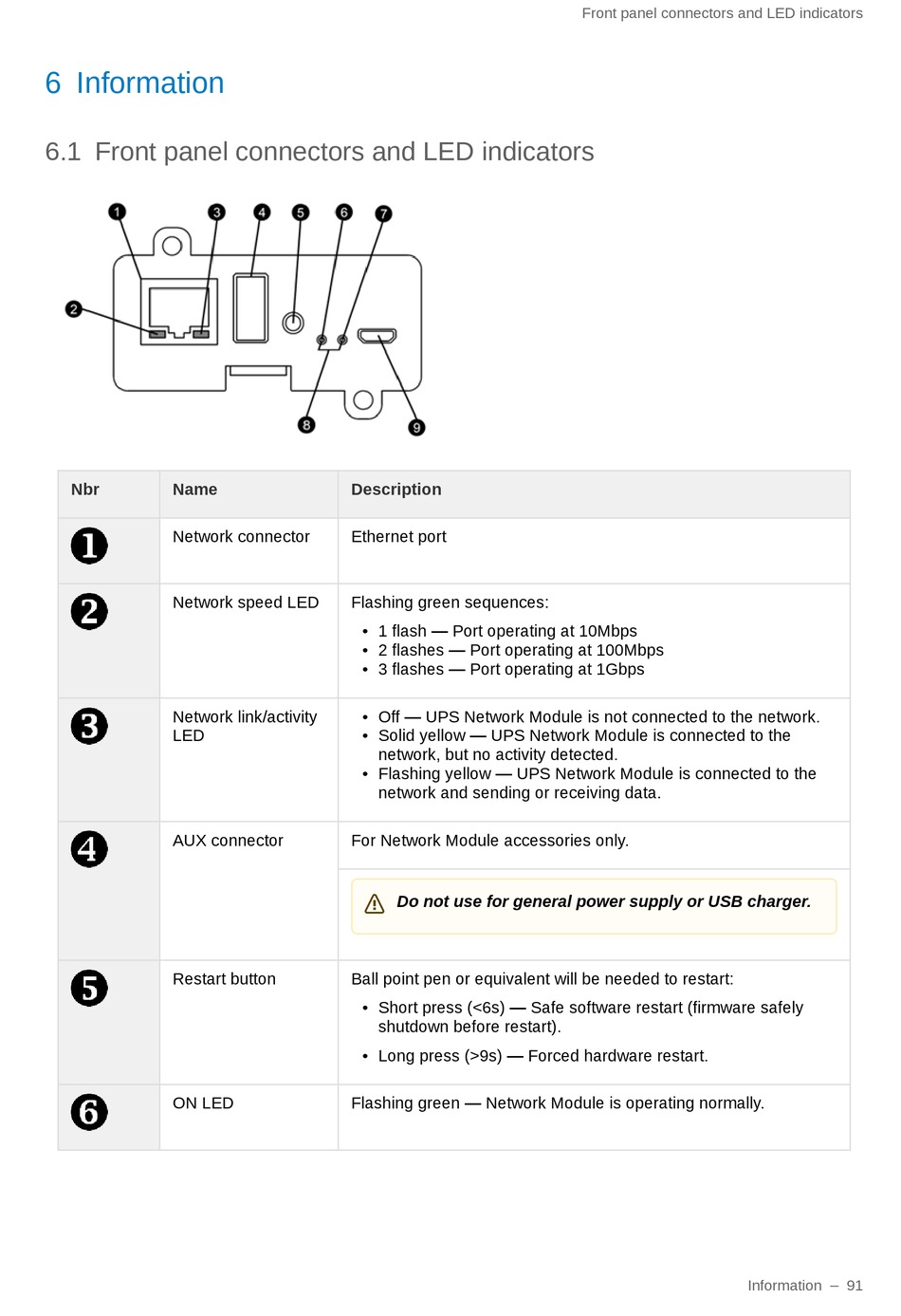

6.1 Front panel connectors and LED indicators

Nbr Name
Network connector
Network speed LED
Network link/activity
LED
AUX connector
Restart button
ON LED
Description
Ethernet port
Flashing green sequences:
• 1 flash — Port operating at 10Mbps
• 2 flashes — Port operating at 100Mbps
• 3 flashes — Port operating at 1Gbps
• Off — UPS Network Module is not connected to the network.
• Solid yellow — UPS Network Module is connected to the
network, but no activity detected.
• Flashing yellow — UPS Network Module is connected to the
network and sending or receiving data.
For Network Module accessories only.
 Do not use for general power supply or USB charger.
Ball point pen or equivalent will be needed to restart:
• Short press (<6s) — Safe software restart (firmware safely
shutdown before restart).
• Long press (>9s) — Forced hardware restart.
Flashing green — Network Module is operating normally.
Front panel connectors and LED indicators
