Green LED of the TO DEVICE RJ45 connector shows if the EMP is powered by the Network
module.

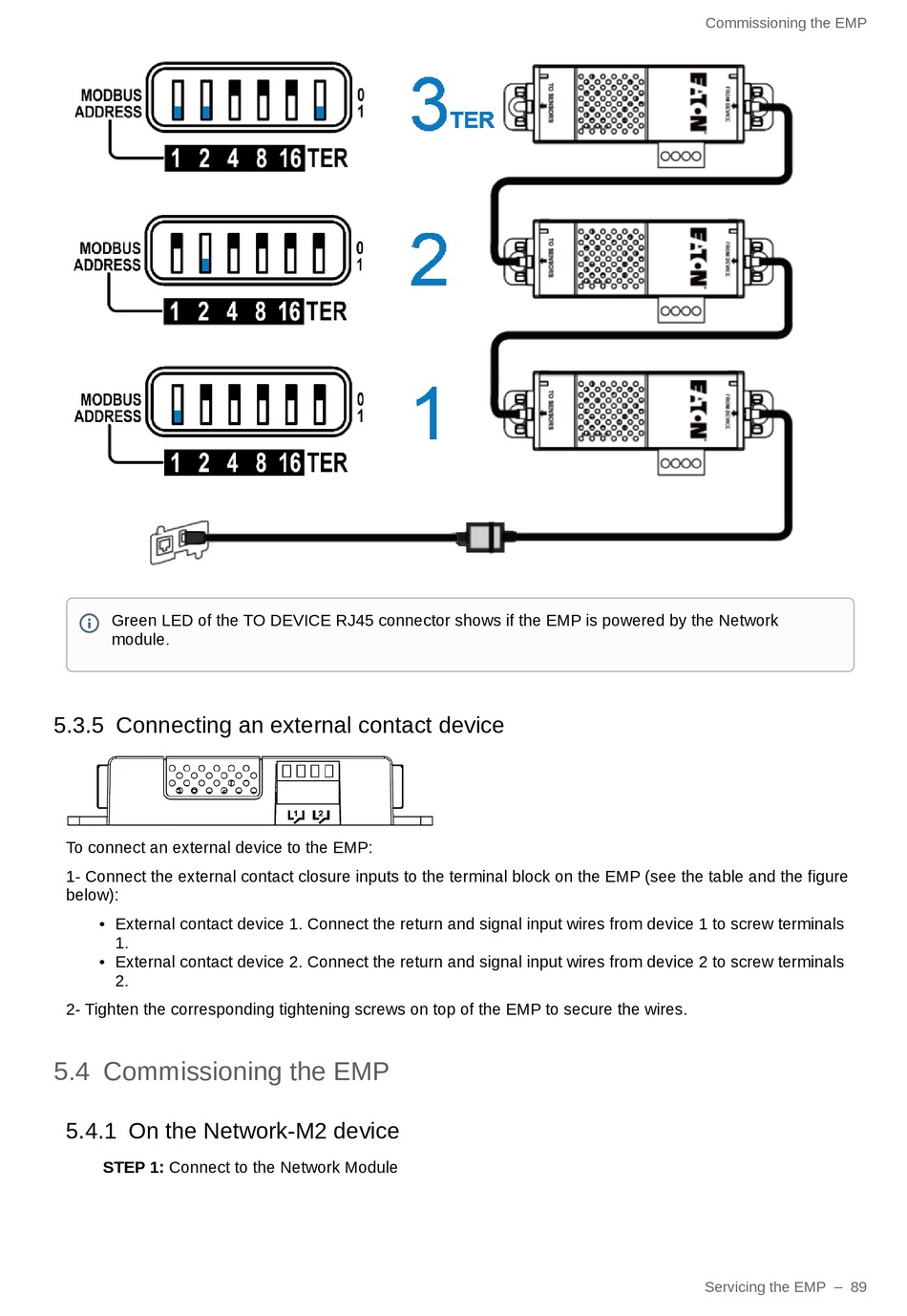

5.3.5 Connecting an external contact device

To connect an external device to the EMP:
1- Connect the external contact closure inputs to the terminal block on the EMP (see the table and the figure
below):
• External contact device 1. Connect the return and signal input wires from device 1 to screw terminals
1.
• External contact device 2. Connect the return and signal input wires from device 2 to screw terminals
2.
2- Tighten the corresponding tightening screws on top of the EMP to secure the wires.

5.4 Commissioning the EMP

5.4.1 On the Network-M2 device

STEP 1: Connect to the Network Module
Commissioning the EMP
Servicing the EMP – 89
