Installing the EMP
Bottom mounting

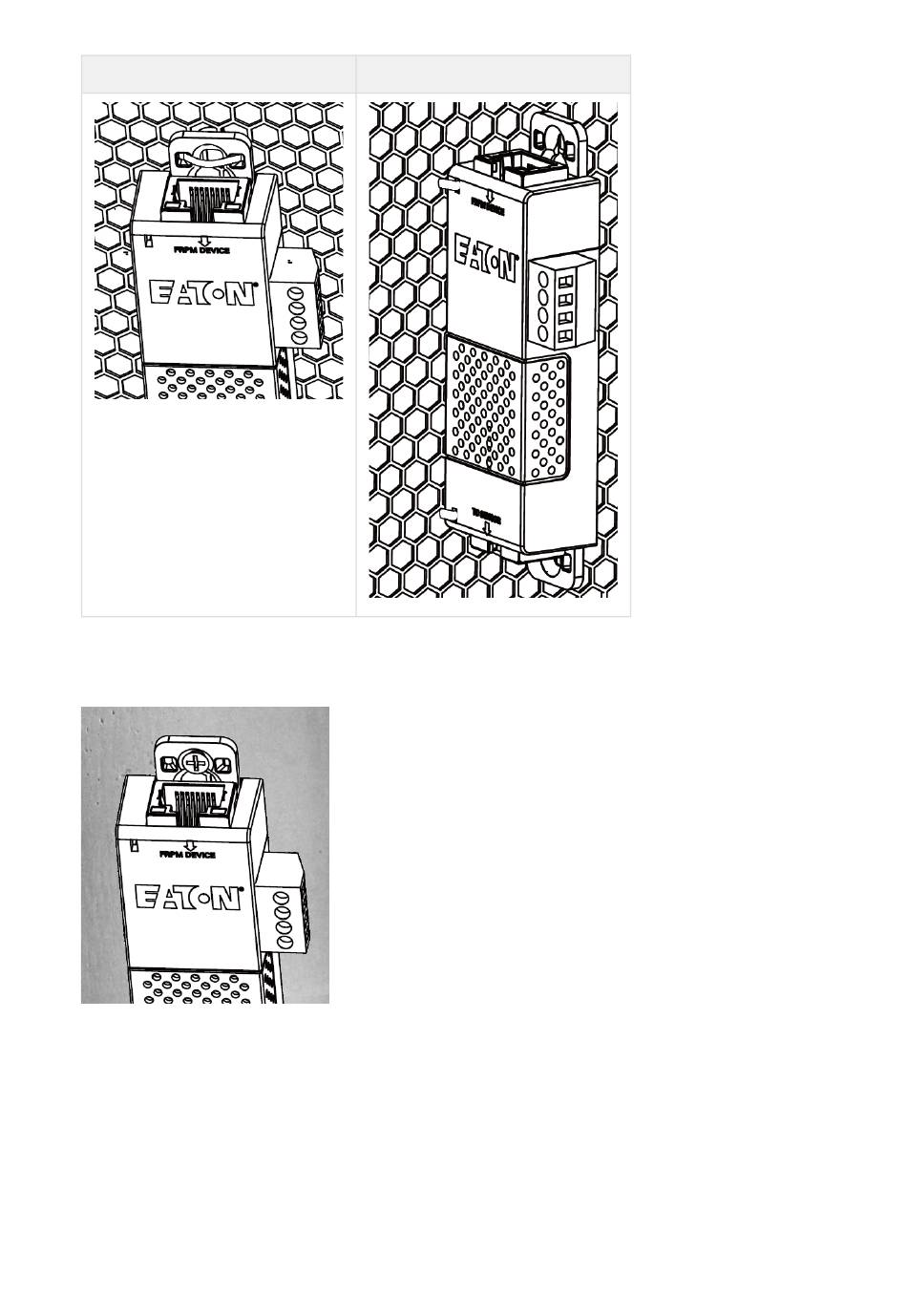

Wall mounting with screws example

To mount the EMP on the wall close to the rack, use the supplied screw and screw anchor. Then, mount
the EMP on the screw and tighten it.

Wall mounting with nylon fastener example

To mount the EMP within the enclosure environment, attach one nylon fastener to the EMP and the
other nylon fastener to an enclosure rail post. Then, press the two nylon strips together to secure the
EMP to the rail post.
Servicing the EMP – 86
Side mounting
