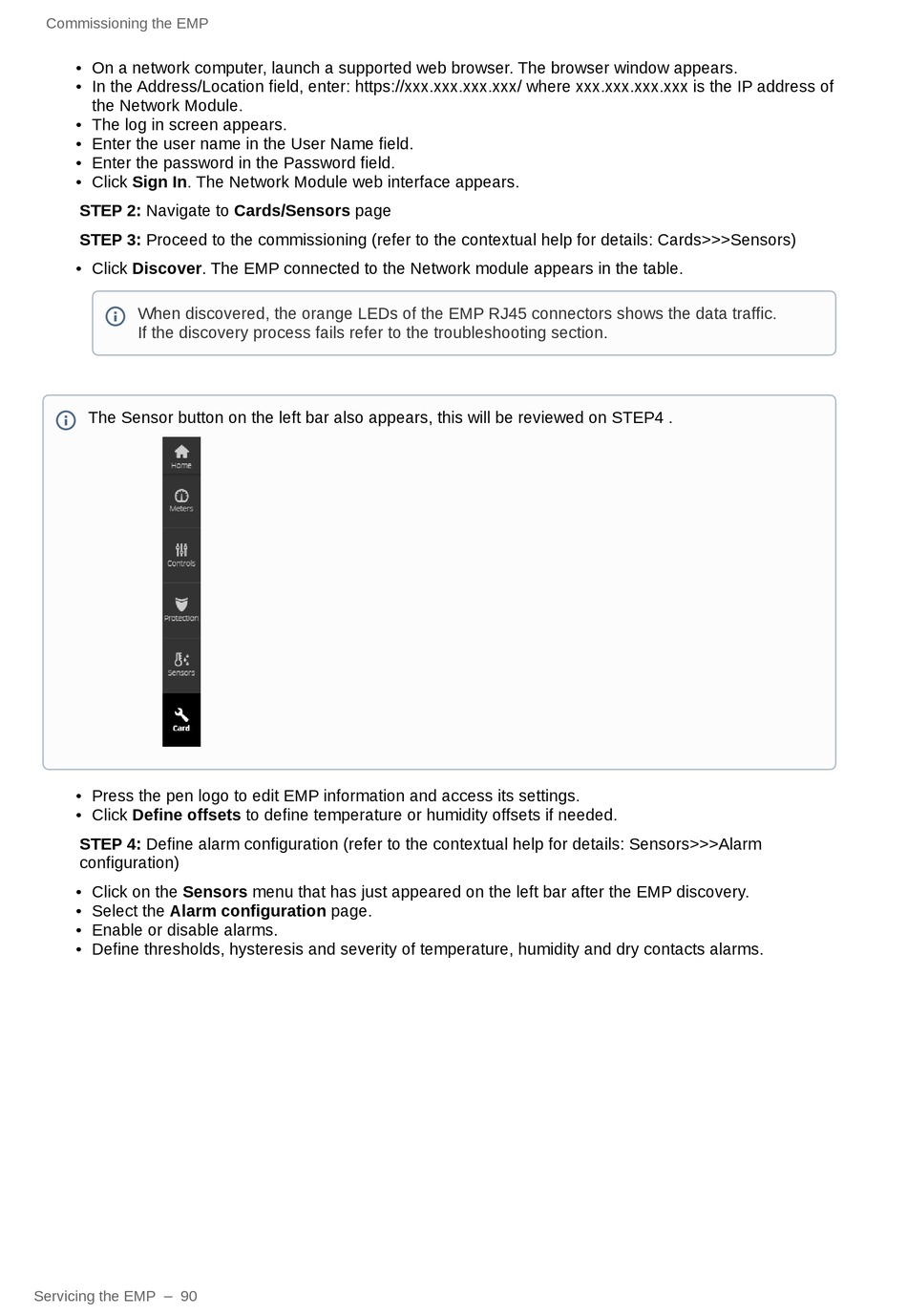

Eaton Network-M2 User Manual page 90

Commissioning the EMP
• On a network computer, launch a supported web browser. The browser window appears.
• In the Address/Location field, enter: https://xxx.xxx.xxx.xxx/ where xxx.xxx.xxx.xxx is the IP address of
the Network Module.
• The log in screen appears.
• Enter the user name in the User Name field.
• Enter the password in the Password field.
• Click Sign In. The Network Module web interface appears.
STEP 2: Navigate to Cards/Sensors page
STEP 3: Proceed to the commissioning (refer to the contextual help for details: Cards>>>Sensors)
• Click Discover. The EMP connected to the Network module appears in the table.

When discovered, the orange LEDs of the EMP RJ45 connectors shows the data traffic.
If the discovery process fails refer to the troubleshooting section.

The Sensor button on the left bar also appears, this will be reviewed on STEP4 .
• Press the pen logo to edit EMP information and access its settings.
• Click Define offsets to define temperature or humidity offsets if needed.
STEP 4: Define alarm configuration (refer to the contextual help for details: Sensors>>>Alarm
configuration)
• Click on the Sensors menu that has just appeared on the left bar after the EMP discovery.
• Select the Alarm configuration page.
• Enable or disable alarms.
• Define thresholds, hysteresis and severity of temperature, humidity and dry contacts alarms.
