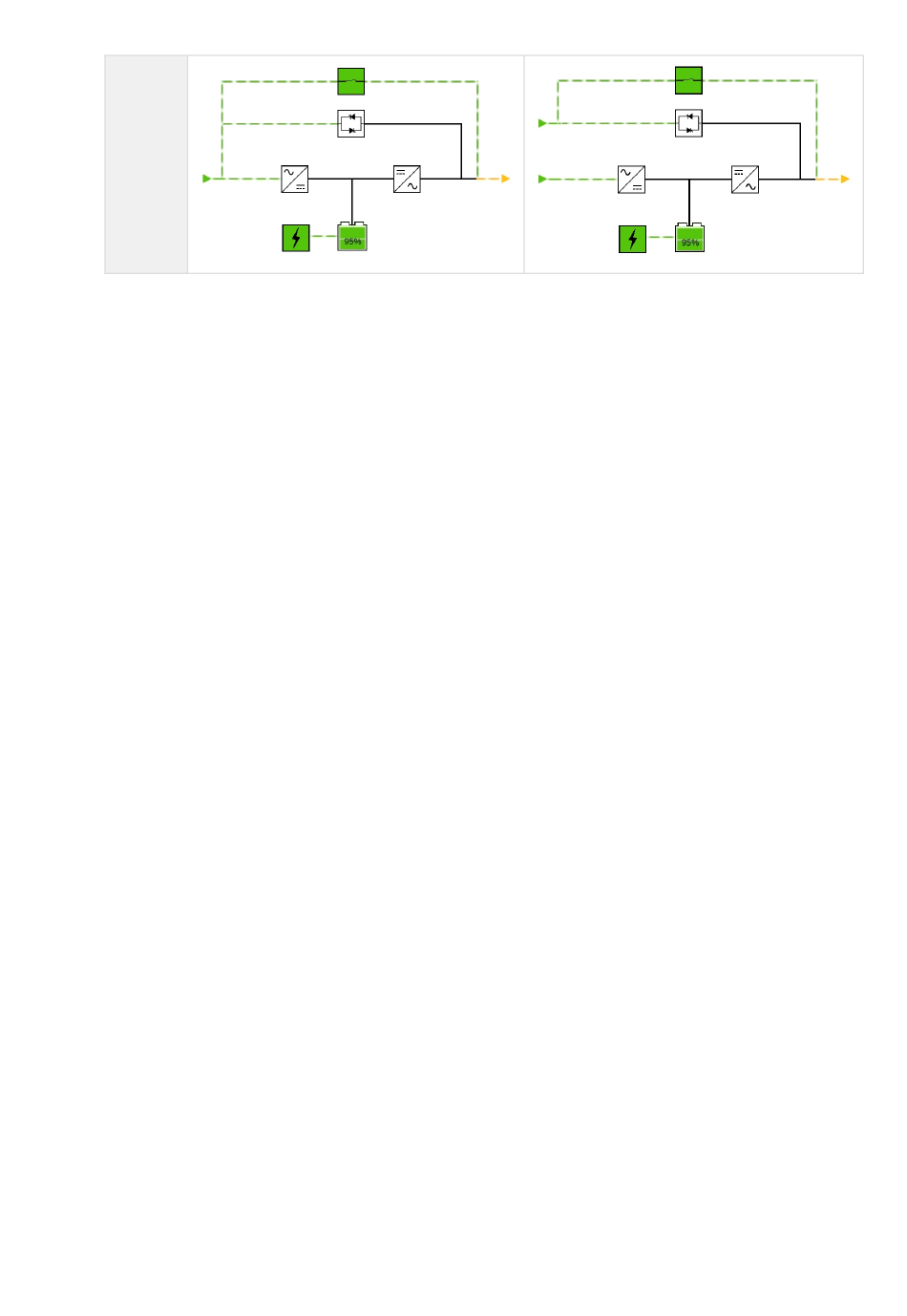

Mainte
nance
bypas
s
mode

2.2.3 Top bar

Current user/Logout
Status
Output power
Battery status
Alarms button
Settings button

2.2.4 Details

This view provides a summary of device identification information and nominal values:
Name
Model
P/N
S/N
Location
Firmware version
Input Voltage
Input Frequency
Output Voltage
Output Frequency
The COPY TO CLIPBOARD button will copy the information to your clipboard so that it can be past.
For example, you can copy and paste information into an email.

2.2.5 Outlet status

Provides the status of the UPS outlets (ON/OFF) by load segmentation :
Status (ON/OFF— Protected/Not protected/Not powered)
Load level (W) – availability depending on the UPS model
Shutdown countdown
Startup countdown
Note: Load segmentations allow non-priority equipment to automatically power down during an extended
power outage in order to keep battery runtime on essential equipment.
This feature is also used to remote reboot and sequential start servers in order to restrict inrush currents.
