S E C T I O N F O U R
3. Measure strip
•
•
•
Paper Guide
•
NOTE: If
OVERFLOW
message appears after re-reading strip, refer to Appendix B of this manual.
•
•
4-2
For paper strips, adjust the paper guides according to the number
displayed on the screen. If multiple pass, note what color is to be
measured first. Insert strip until it comes to rest against the drive rollers.
For film strips, note insertion direction and insert strip into the 35mm
slot until it comes to rest against the drive rollers.

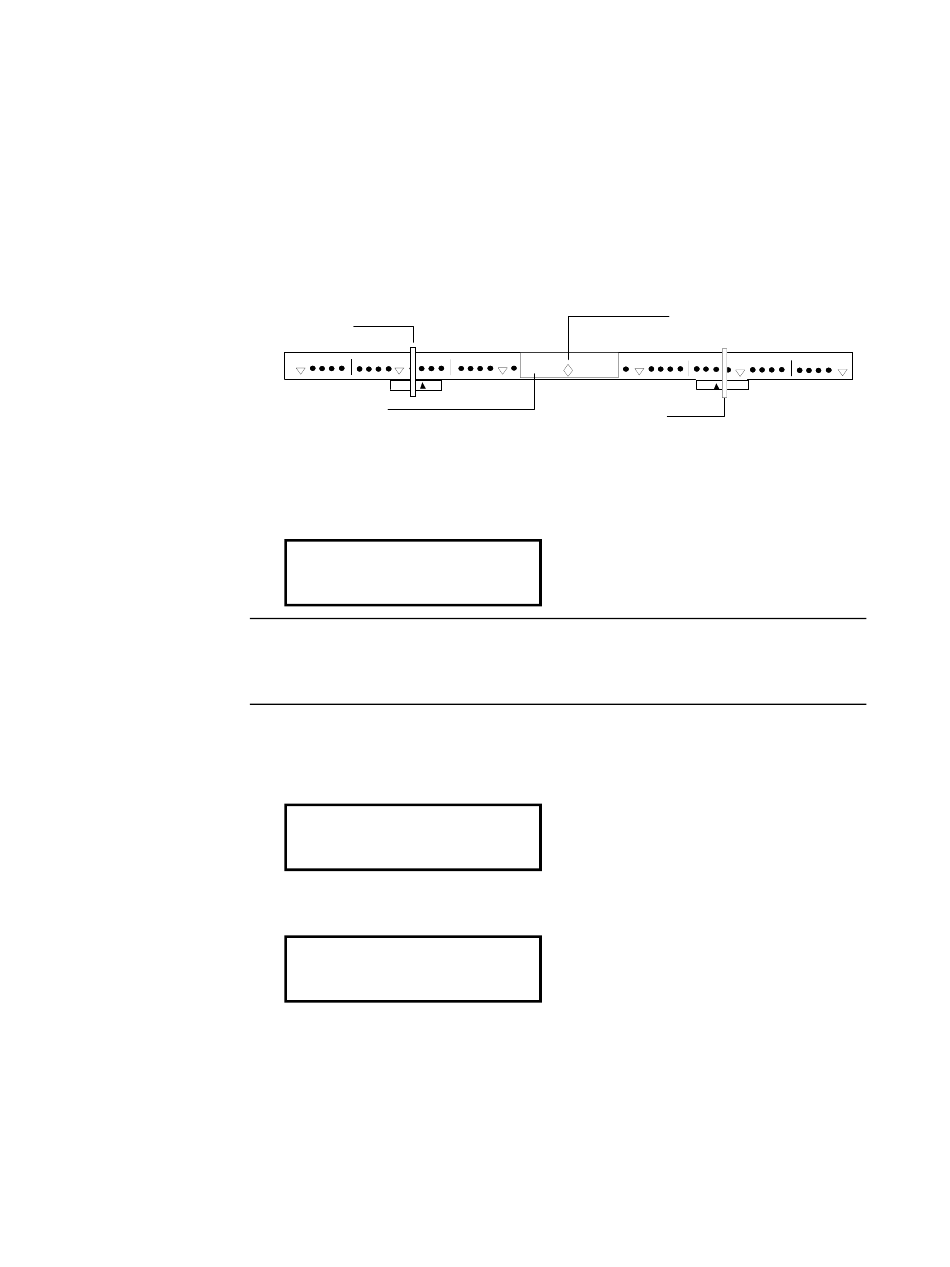

For printer balance strips, note insert direction and center bull's-eye
over middle diamond. Slide paper guides next to strip and insert strip
until it comes to rest against the drive rollers.
20
30
35mm Slot
The densitometer indicates that processing is taking place and the
measurement status. If a paper strip is measured that has multiple passes,
the display indicates the pass to insert.
PROCESSING...
PASS #1 of 1 OK!
INVALID READING, UNRECOGNIZABLE STRIP
messages display after a measurement, re-read strip. If the same
Transmitting Data momentarily appears in the display screen (if auto
transmit is enabled in Configuration Options), indicating measurement
data is being transmitted out the I/O port.
TRANSMITTING
DATA
The instrument screen displays the RGB measurement results. Refer to
next page for procedure to view field results.
r.rr g.gg
Stain
10
10
Paper Guide
b.bb
exit
Center Diamond
20 30
, or
BUFFER
