X-Rite 890 Operation Manual page 27

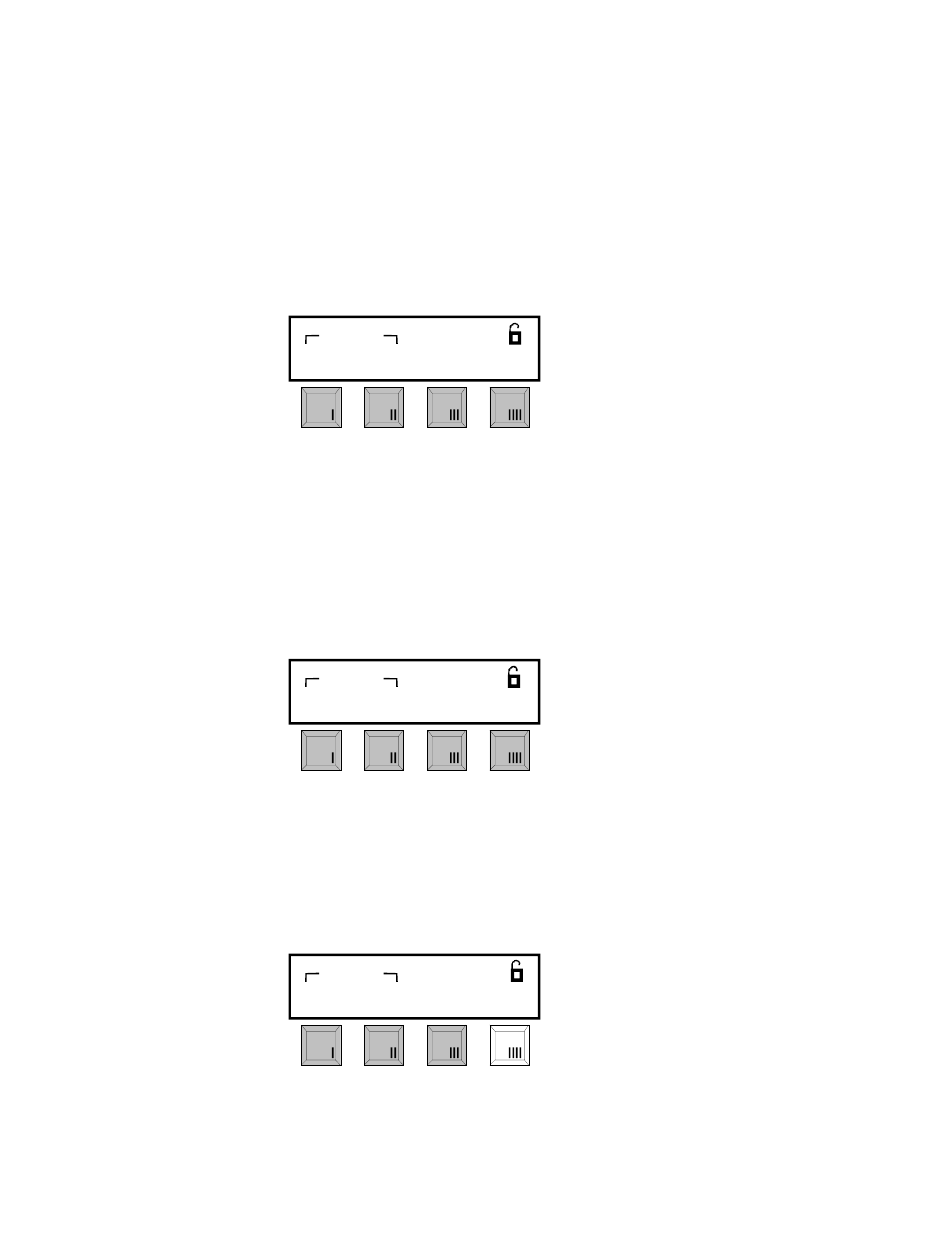

4. Page 2a Configuration Screen
•
Press key ll (RCI) to page through and select a remote control interface
option (OFF, ON, TTL).
•
Press key lll (PIN5) to page through and select a handshake option (OFF,
BUSY, and CTS).
•
Press key llll (XON) to select bi-directional transmit On/Off protocol
option. Each key depression alternates between xon (off) and
XON (on).
•
After editing Page 2a Configuration options, press key l (P2a) to advance
to Page 2b Configuration screen.
SAVE CNFG
P2a RCI PIN5 XON
5. Page 2b Configuration Screen
•
Press key ll (DPT) to select decimal point output option. Each key
depression alternates between dtp (off) and DPT (on).
•
Press key lll (COMP) to select data output format option. Each key
depression alternates between comp (off) and COMP (on).
•
Press key llll (ALF) to select automatic line feed option. Each key
depression alternates between alf (off) and ALF (on).
•
After editing Page 2b Configuration options, press key l (P2b) to
advance to Page 2c Configuration screen.
CNFG
SAVE
P2b DPT COMP ALF
6. Page 2c Configuration Screen
•
Press key ll (DEL) to select delay option. Each key depression alternates
between del (off) and DEL (on).
•
Press key lll (AXMT) to select automatic transmission option. Each key
depression alternates between axmt (off) and AXMT (on).
•
After editing Page 2b Configuration options, press key l (P2b) to
advance to Page 2c Configuration screen.
SAVE CNFG
P2c DEL AXMT
S E T T I N G S Y S T E M C O N F I G U R A T I O N
3-5
