S E C T I O N O N E
Single Pass
Single pass strips require the strip to be inserted into the instrument once.

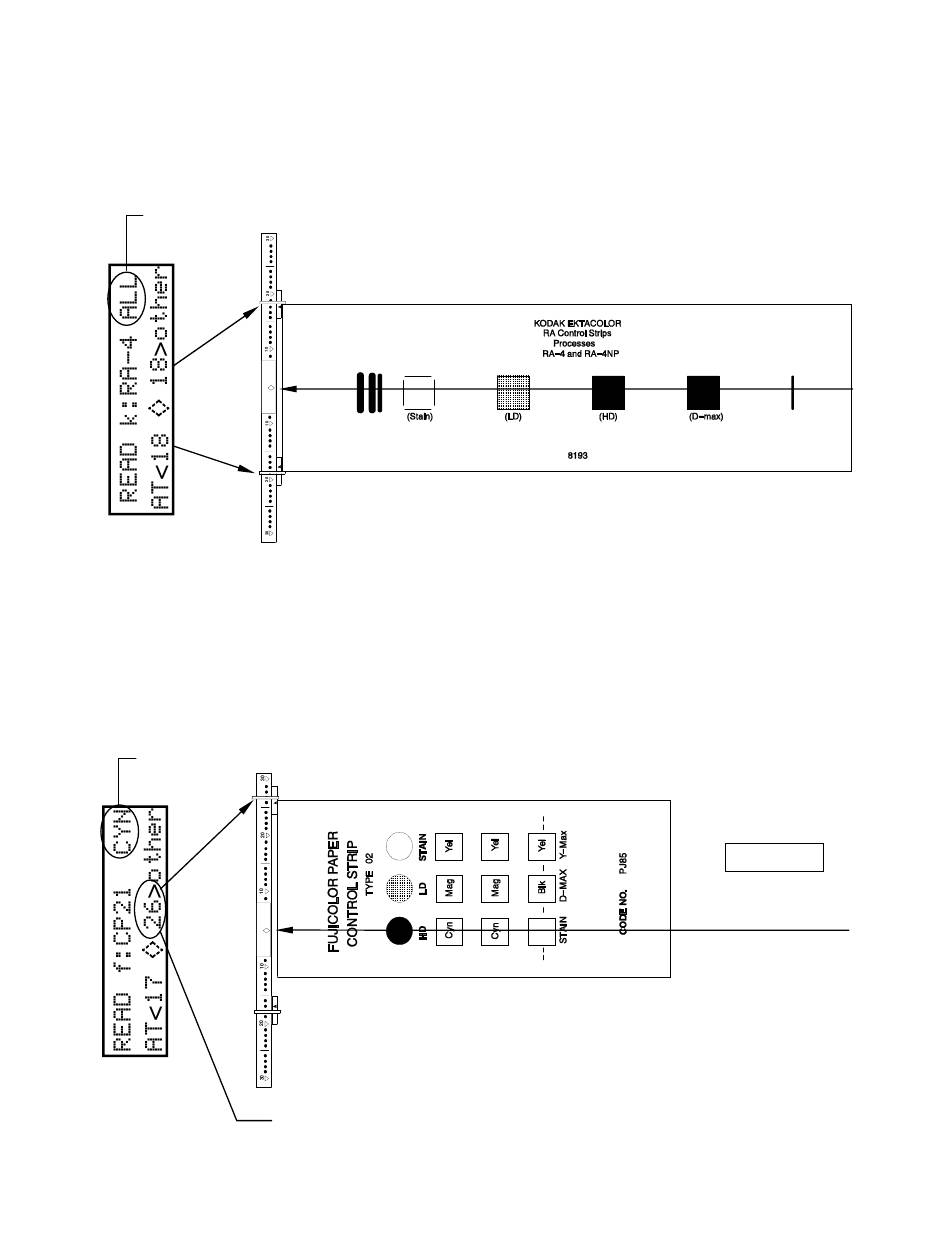

In this example, the strip—Kodak RA4—can be inserted in either direction.
Refer to your Control Strip and Balance Print Format Guide for information
on all strips supported.
Indicates ALL patches are measured
Multi Pass
Typically, a multi pass strip requires three pass through the instrument to
obtain measurement data. The instrument displays what color patches are
measured and what guide is used to insert the strip from.
In this example, the cyan—Fuji CP21—row of patches is measured first,
followed by the magenta and yellow. Refer to your Control Strip and
Balance Print Format Guide for information on strip insertion direction.
Indicates cyan patches are measured
1-8
Guide number flashes, indicting
strip positioning
PASS ONE
