Display and Keyswitch Definition

The characters in the bottom row of the display dictate which function is
selected or which action takes place when a corresponding keyswitch is
pressed. Normally, upper-case lettering in the top row of the display is used
for messages, and lower-case lettering in the bottom row is used for menu
options that are selectable.
Each keyswitch is embossed with identification marks signifying its number.
The left-most key is labeled "I", center-left key is labeled "ll", and so on.
Keyswitches that are used to select a function or perform an action are tinted
(grayed) throughout this manual.
MAIN MENU
p1 pap
film

Menu Keys

Keyswitch lll and llll have the word "MENU" printed above them. Pressing
these two keys simultaneously at any location in the menu structure causes
the display to return to page 1 of the main menu.
MAIN MENU
p1 pap film
MENU

Help Messages

Built-in help messages are available for most functions. Help messages are
activated by pressing and holding down a key until the message appears. To
temporarily pause a message, press the key again.
MAIN MENU
p1 pap film
MENU
Press and hold keyswitch to see help message

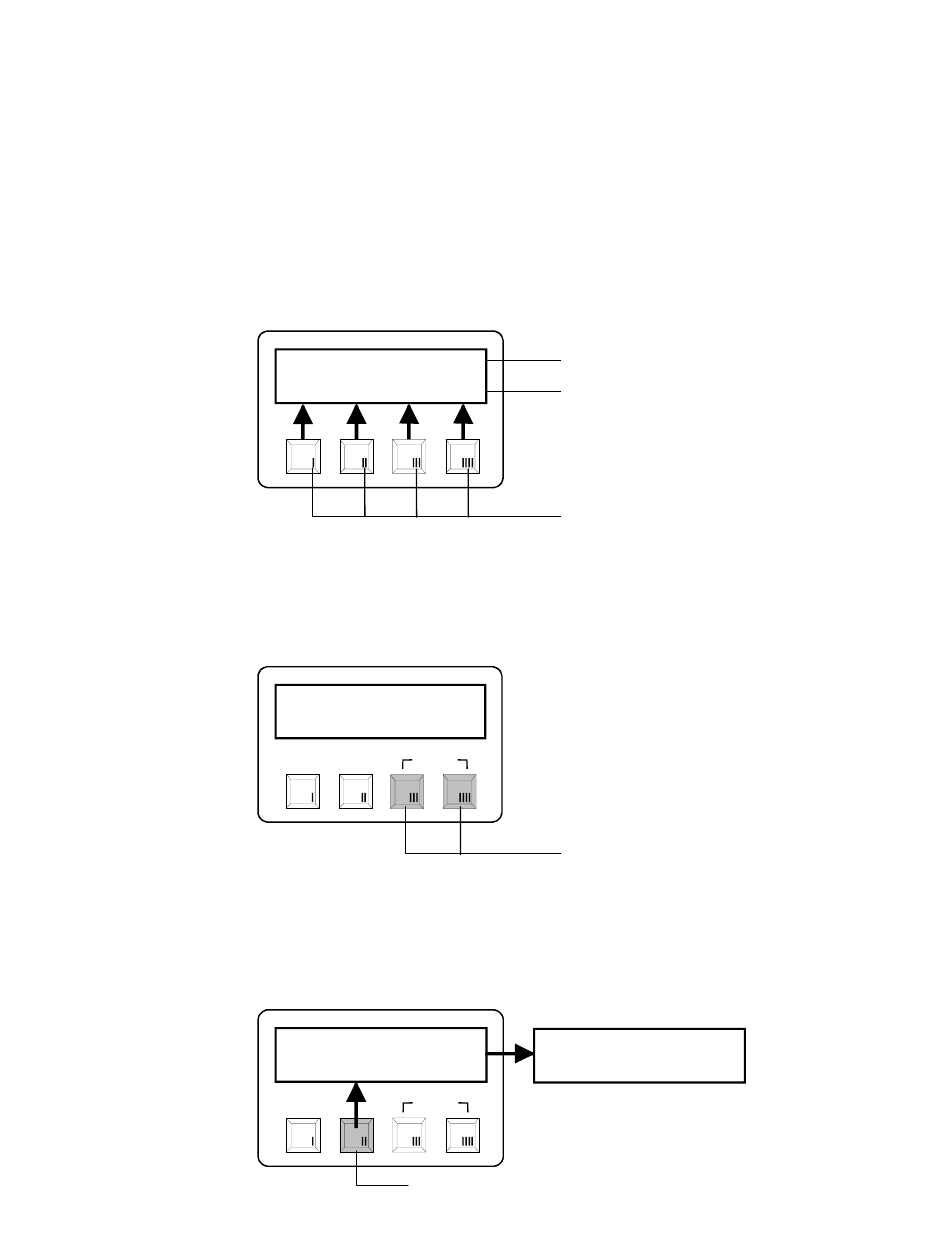

Messages (top row)
bal
Functions (bottom row)
Keyswitch identification marks
bal
Press keys simultaneously
PAPer
bal "pap" key select
G E T T I N G S T A R T E D
1-5
