MANUAL CALIBRATION PROCEDURE

The manual calibration procedure is used to correlate the low densities of the
instrument to another densitometer. Doing this allows the instrument to
measure approximately the same as another densitometer that has Status A
reflection response, and has been calibrated to ANSI Standards.
1. Using the instrument's own reference, calibrate the densitometer that you
want this instrument to correlate with.

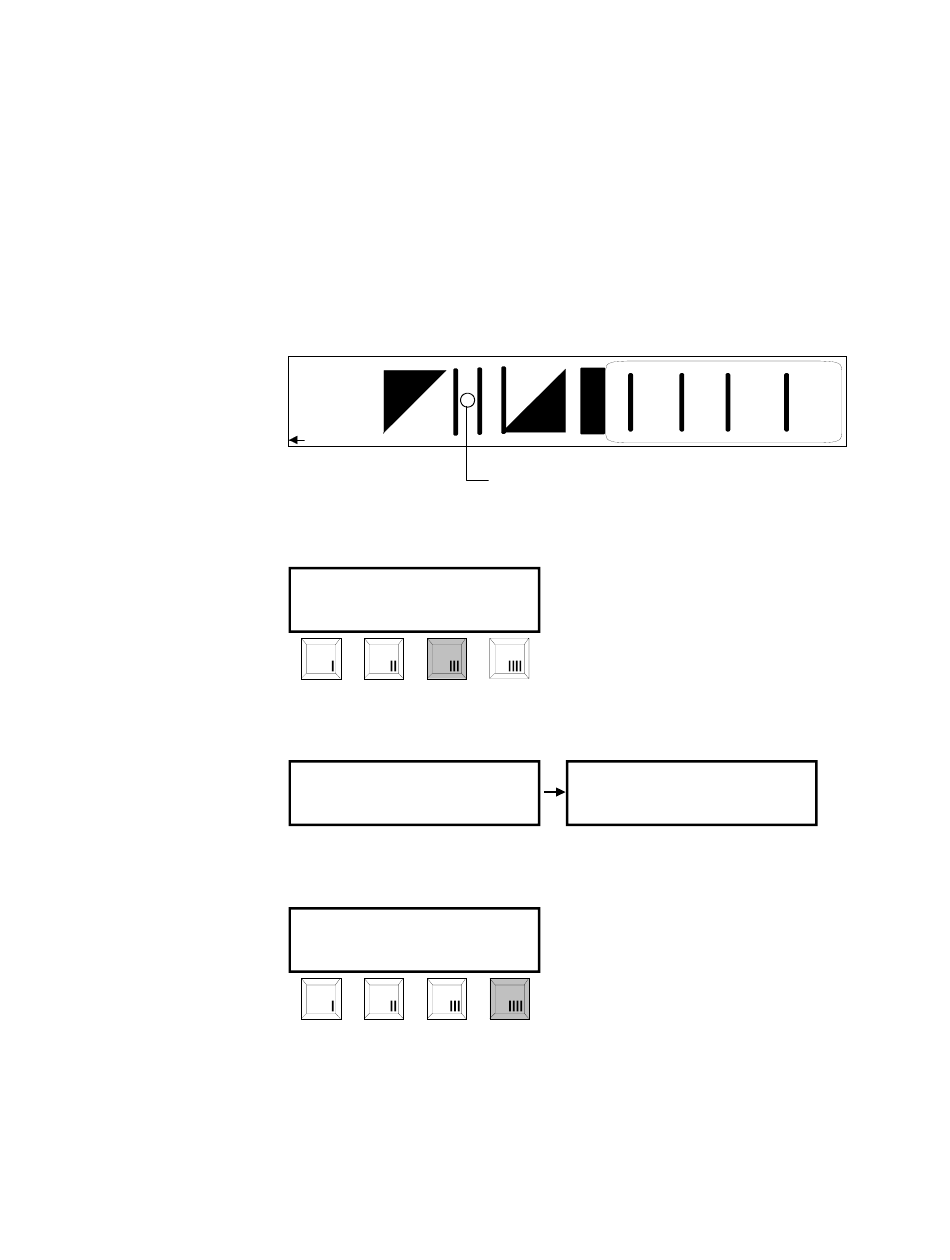

2. Using the same densitometer, measure the white area below the first
black bar on the X-Rite Auto-Cal strip and record the Red, Green, and
Blue values.
X-RITE Auto-Cal Strip P/N 880-100 Patent Pending
INSERT THIS END
3. Press key lll (cal) located on Function Menu page (p3) to initiate
calibration.
FUNCTION MENU
p3 cnfg cal load
•
The instrument screen momentarily displays
TRANSMISSION
(reading air), and
CALIBRATING
TRANSMISSION
4. After this is complete, the instrument screen asks you to
. DO NOT INSERT STRIP AT THIS TIME.
STRIP
Press key llll (manual) to advance to calibration reference values screen.
INSERT CAL STRIP
AUTO
I N S T R U M E N T C A L I B R A T I O N
Measure here using
other instrument.
during automatic transmission calibration
CALIBRATING MOTOR SPEED.
CALIBRATING
MOTOR SPEED...
manual
SERIAL #: XXX-XXX
CAL R= 0.04 G= 0.07 B= 0.08
CALIBRATING
INSERT CAL
2-3
