S E C T I O N O N E

ADJUSTING THE PAPER GUIDES

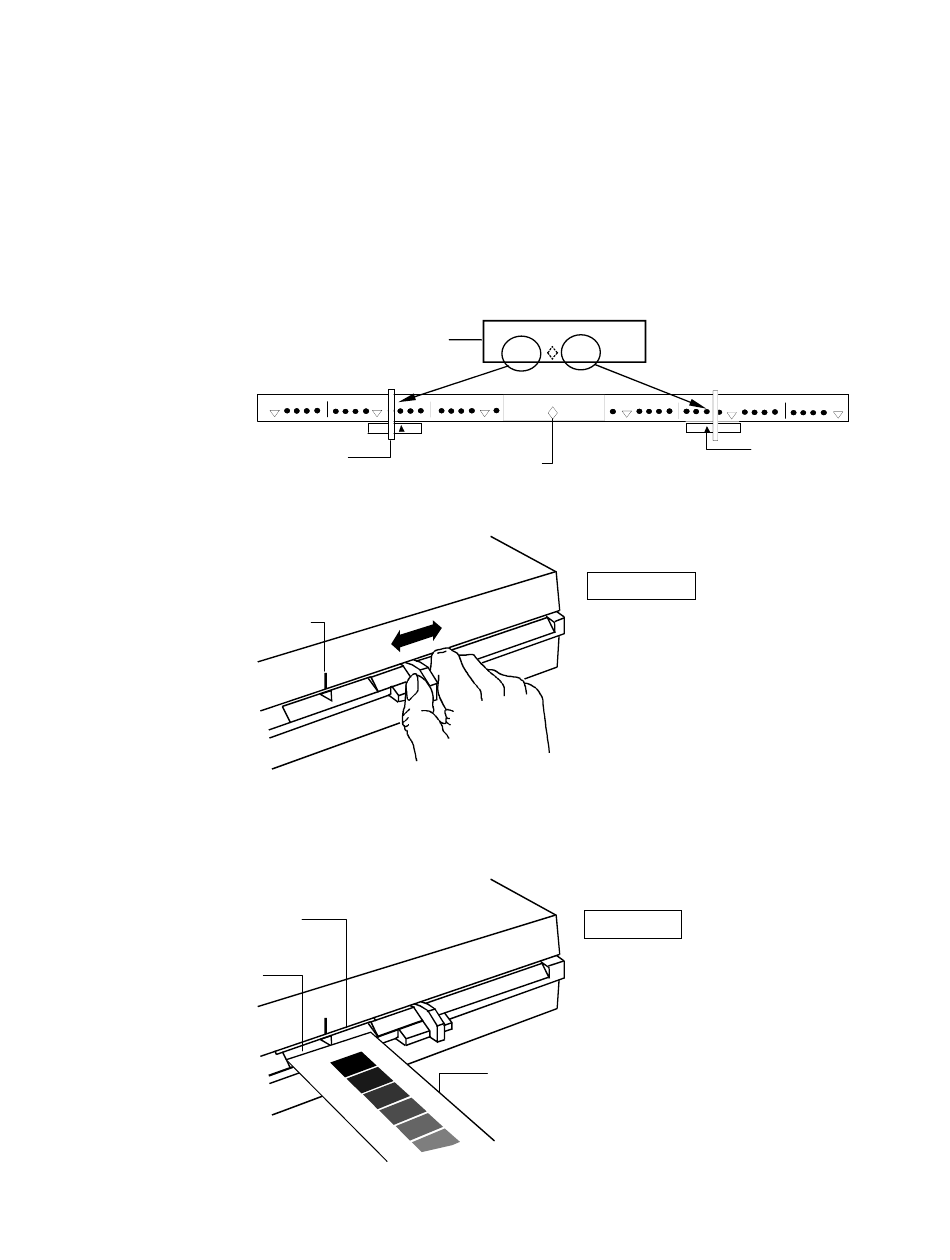

To accommodate various size paper strips, the instrument has an adjustable
paper guide on each side of the strip entrance. Each paper guide has a pointer
(triangle) that is aligned with a number on the guide rail. The guide setting
numbers are shown on the instrument display when a paper strip is selected.
The paper guide rail has setting marks that range from "9-30" to the left and
right of the center diamond. Each mark (stop) is 1/10" increment—10 stops
equal one inch. The instrument automatically displays the proper guides
settings for the selected strip (see below).
30
Paper Guide
The paper guides are moved by sliding them to the left or right.
Center Alignment Line
To accommodate 35mm wide strips, the instrument has a special stationary
guide located above the diamond
Stationary Guide
35mm Slot
1-6
READ k:RA–4 ALL
Instrument Display
AT<18
20 10
Center Diamond
18>other
10
Paper Strip
Film Strip
35mm Film
20 30
Pointer
