Rear Panel
T1/E1 Connector
DRAFT
Table 2 - 1.
Power Connector
Reset Button
Proprietary and Confidential
T1/E1 Connector
(Optional)
EXT Ethernet Port
Acme Packet 1100 Hardware Installation Guide
USB port is for Acme Packet use only and is not to be used by the customer unless
directed by a customer service representative.
Network management and other ports are located on the rear of the chassis.
LNK ACT LNK ACT LNK ACT LNK
SER MGT NET MGT INT EXT
EXT Ethernet Port
INT Ethernet Port
NET MGT Ethernet Port
SER MGT Ethernet Port
USB Port

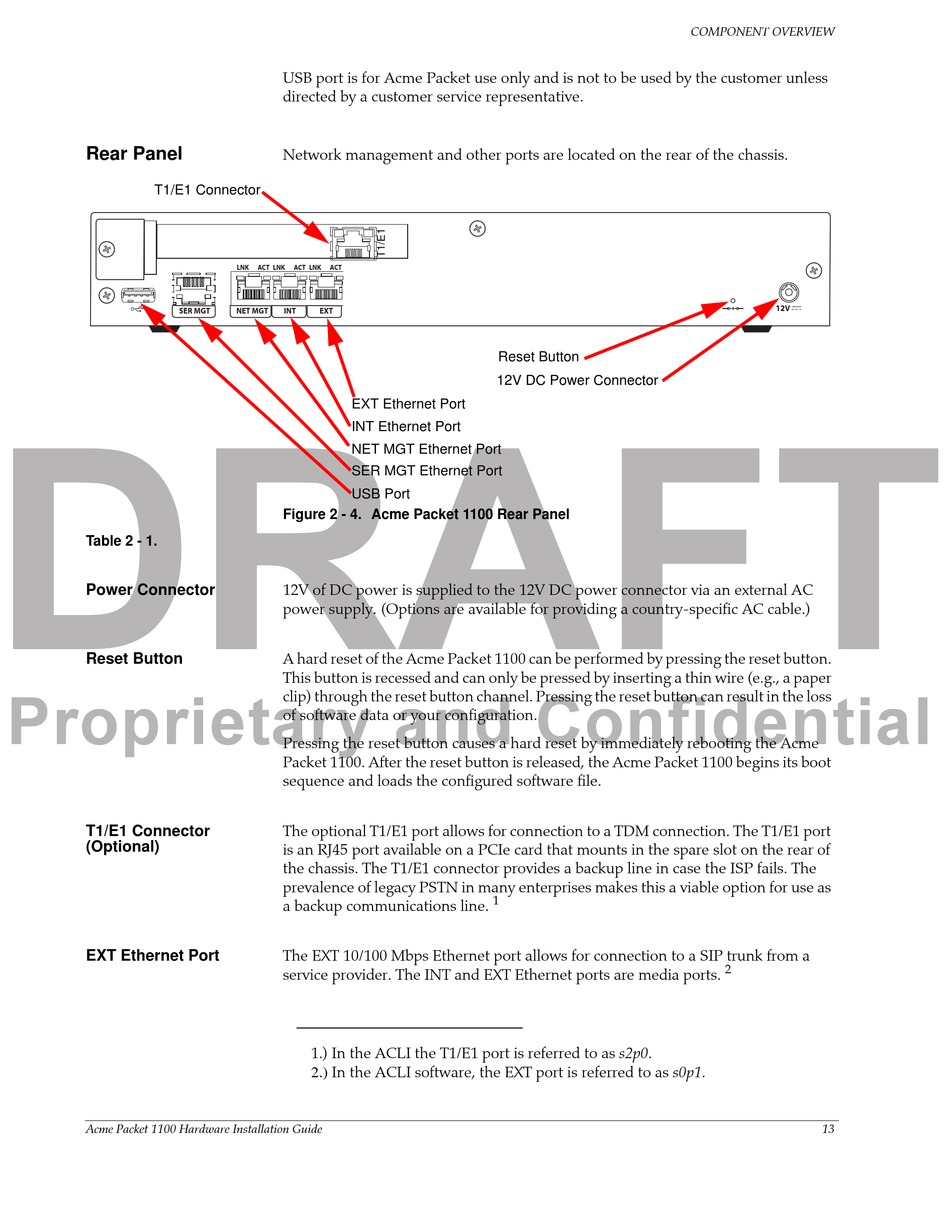

Figure 2 - 4. Acme Packet 1100 Rear Panel
12V of DC power is supplied to the 12V DC power connector via an external AC
power supply. (Options are available for providing a country-specific AC cable.)
A hard reset of the Acme Packet 1100 can be performed by pressing the reset button.
This button is recessed and can only be pressed by inserting a thin wire (e.g., a paper
clip) through the reset button channel. Pressing the reset button can result in the loss
of software data or your configuration.
Pressing the reset button causes a hard reset by immediately rebooting the Acme
Packet 1100. After the reset button is released, the Acme Packet 1100 begins its boot
sequence and loads the configured software file.
The optional T1/E1 port allows for connection to a TDM connection. The T1/E1 port
is an RJ45 port available on a PCIe card that mounts in the spare slot on the rear of
the chassis. The T1/E1 connector provides a backup line in case the ISP fails. The
prevalence of legacy PSTN in many enterprises makes this a viable option for use as
a backup communications line.
The EXT 10/100 Mbps Ethernet port allows for connection to a SIP trunk from a
service provider. The INT and EXT Ethernet ports are media ports.
1.) In the ACLI the T1/E1 port is referred to as s2p0.
2.) In the ACLI software, the EXT port is referred to as s0p1.
ACT
Reset Button
12V DC Power Connector
