COMPONENT OVERVIEW
ACME PACKET 1100
DRAFT
OK LED
PWR LED
Proprietary and Confidential
EXT Ethernet
LNK/ACT LEDs
INT Ethernet LNK/ACT
LEDs
NET MGT Ethernet
LNK/ACT LEDs
USB Port
12
NET MGT Port Ethernet LNK/ACT LEDs
INT Port Ethernet LNK/ACT LEDs
EXT Port Ethernet LNK/ACT LEDs

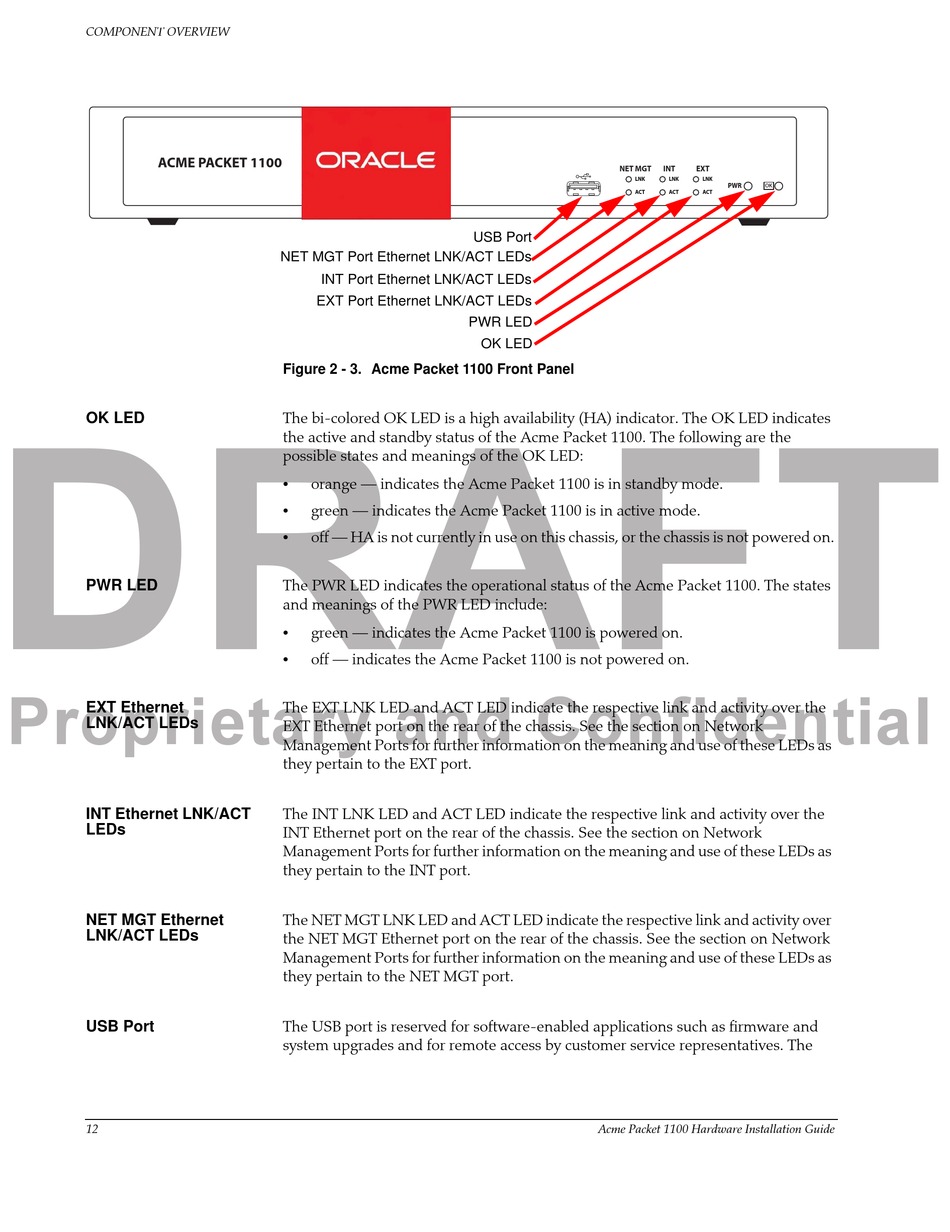

Figure 2 - 3. Acme Packet 1100 Front Panel
The bi-colored OK LED is a high availability (HA) indicator. The OK LED indicates
the active and standby status of the Acme Packet 1100. The following are the
possible states and meanings of the OK LED:
orange — indicates the Acme Packet 1100 is in standby mode.
•
• green — indicates the Acme Packet 1100 is in active mode.
• off — HA is not currently in use on this chassis, or the chassis is not powered on.
The PWR LED indicates the operational status of the Acme Packet 1100. The states
and meanings of the PWR LED include:
green — indicates the Acme Packet 1100 is powered on.
•
off — indicates the Acme Packet 1100 is not powered on.
•
The EXT LNK LED and ACT LED indicate the respective link and activity over the
EXT Ethernet port on the rear of the chassis. See the section on Network
Management Ports for further information on the meaning and use of these LEDs as
they pertain to the EXT port.
The INT LNK LED and ACT LED indicate the respective link and activity over the
INT Ethernet port on the rear of the chassis. See the section on Network
Management Ports for further information on the meaning and use of these LEDs as
they pertain to the INT port.
The NET MGT LNK LED and ACT LED indicate the respective link and activity over
the NET MGT Ethernet port on the rear of the chassis. See the section on Network
Management Ports for further information on the meaning and use of these LEDs as
they pertain to the NET MGT port.
The USB port is reserved for software-enabled applications such as firmware and
system upgrades and for remote access by customer service representatives. The
NET MGT
LNK
ACT
USB Port
PWR LED
OK LED
Acme Packet 1100 Hardware Installation Guide
INT EXT
LNK LNK
PWR
OK
ACT ACT
