DRAFT
Proprietary and Confidential
Table Top/Shelf
Installation of the
Chassis

Cabling the Acme Packet 1100 System

Acme Packet 1100 Hardware Installation Guide
screws/washers/anchors into each hole in the bracket to secure the chassis to the
mounting surface.
Front of Chassis

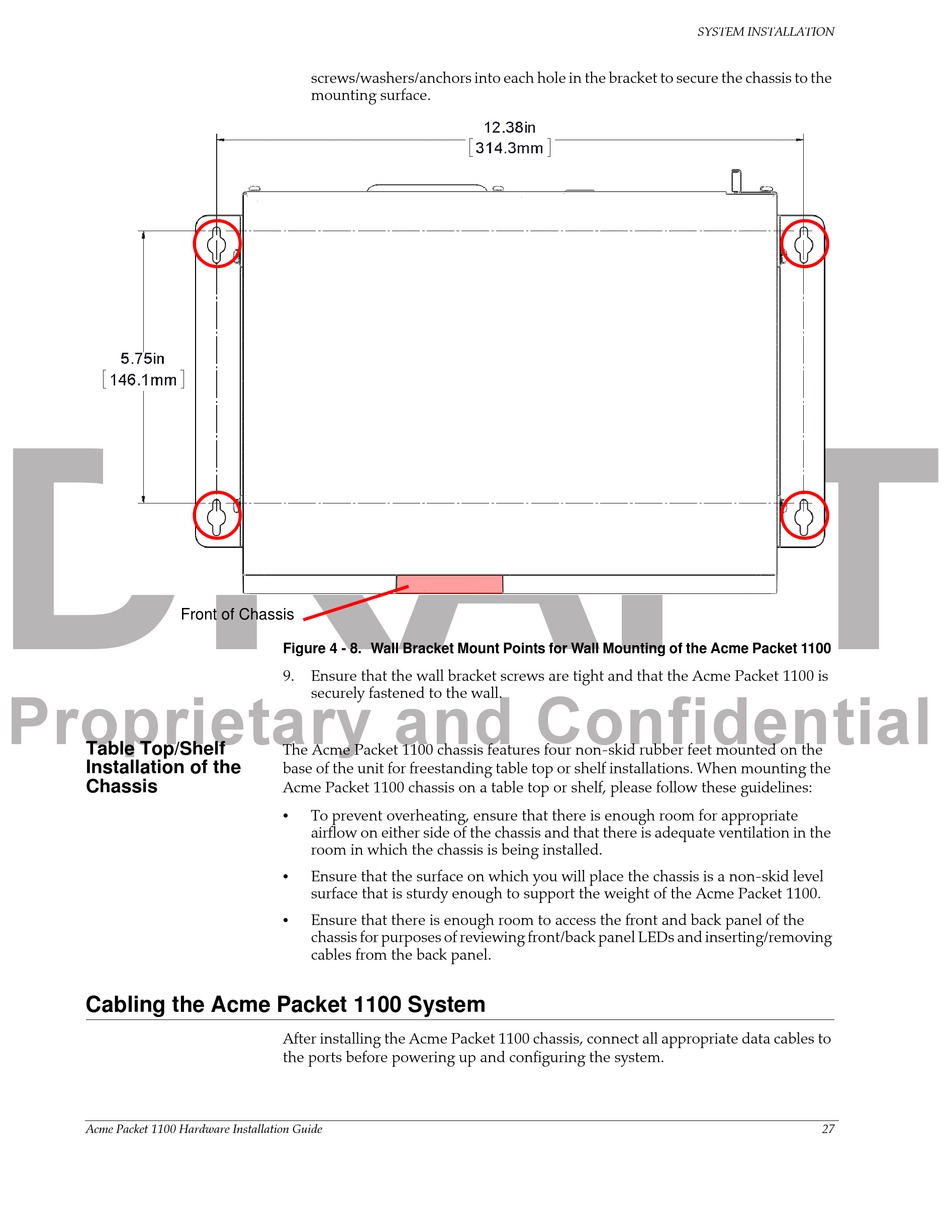

Figure 4 - 8. Wall Bracket Mount Points for Wall Mounting of the Acme Packet 1100
9. Ensure that the wall bracket screws are tight and that the Acme Packet 1100 is
securely fastened to the wall.
The Acme Packet 1100 chassis features four non-skid rubber feet mounted on the
base of the unit for freestanding table top or shelf installations. When mounting the
Acme Packet 1100 chassis on a table top or shelf, please follow these guidelines:
• To prevent overheating, ensure that there is enough room for appropriate
airflow on either side of the chassis and that there is adequate ventilation in the
room in which the chassis is being installed.
Ensure that the surface on which you will place the chassis is a non-skid level
•
surface that is sturdy enough to support the weight of the Acme Packet 1100.
Ensure that there is enough room to access the front and back panel of the
•
chassis for purposes of reviewing front/back panel LEDs and inserting/removing
cables from the back panel.
After installing the Acme Packet 1100 chassis, connect all appropriate data cables to
the ports before powering up and configuring the system.
SYSTEM INSTALLATION
27
