SYSTEM INSTALLATION
AC Power Cord
Installation
Procedure
DRAFT
Caution
Proprietary and Confidential
30
To cable the Acme Packet 1100 in an HA configuration using single rear
interface support:
1. Insert one end of an Ethernet cable into the NET MGT port on the rear panel of
each Acme Packet 1100. The release tab on the RJ45 jack clicks into place when
you insert it properly into the chassis port.
2. Insert the other end of the Ethernet cable into an Ethernet switch. Refer to the
configuration procedures located in the HA Nodes chapter of the Acme Packet
Configuration Guide.
This section describes how to install an AC power cord.
Use a 15 Amp fused circuit for each AC power supply.
To install the AC powers cord in the Acme Packet 1100:
1. Locate the AC power cord shipped with your Acme Packet 1100.
2. Verify that you have the appropriate power cord for your country-specific needs.
3. Connect the power cord to the AC power supply by inserting the 3-lead IEC-320
plug into the IEC connector located on the power supply.

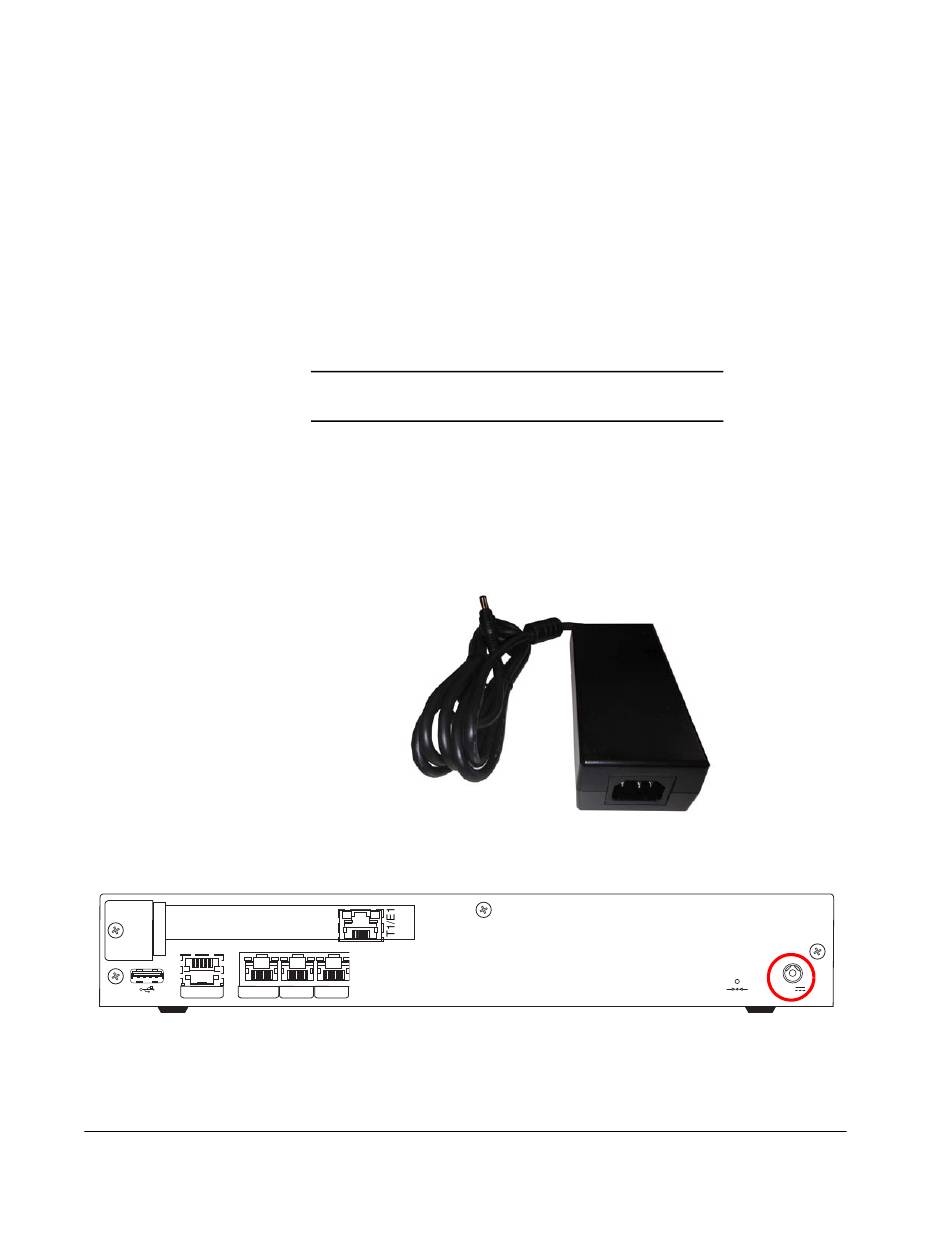

Figure 4 - 12. Acme Packet 1100 Power Supply
4. Connect the 12V connector on the power supply to the 12V power inlet
connector on the back panel of the Acme Packet 1100.
LNK ACT LNK ACT LNK ACT LNK
SER MGT NET MGT INT EXT
Figure 4 - 13. 12V Power Connector on the Rear of the Acme Packet 1100
5. Route the AC power cord through your rack and cabling system to the AC power
outlet.
ACT
12V
