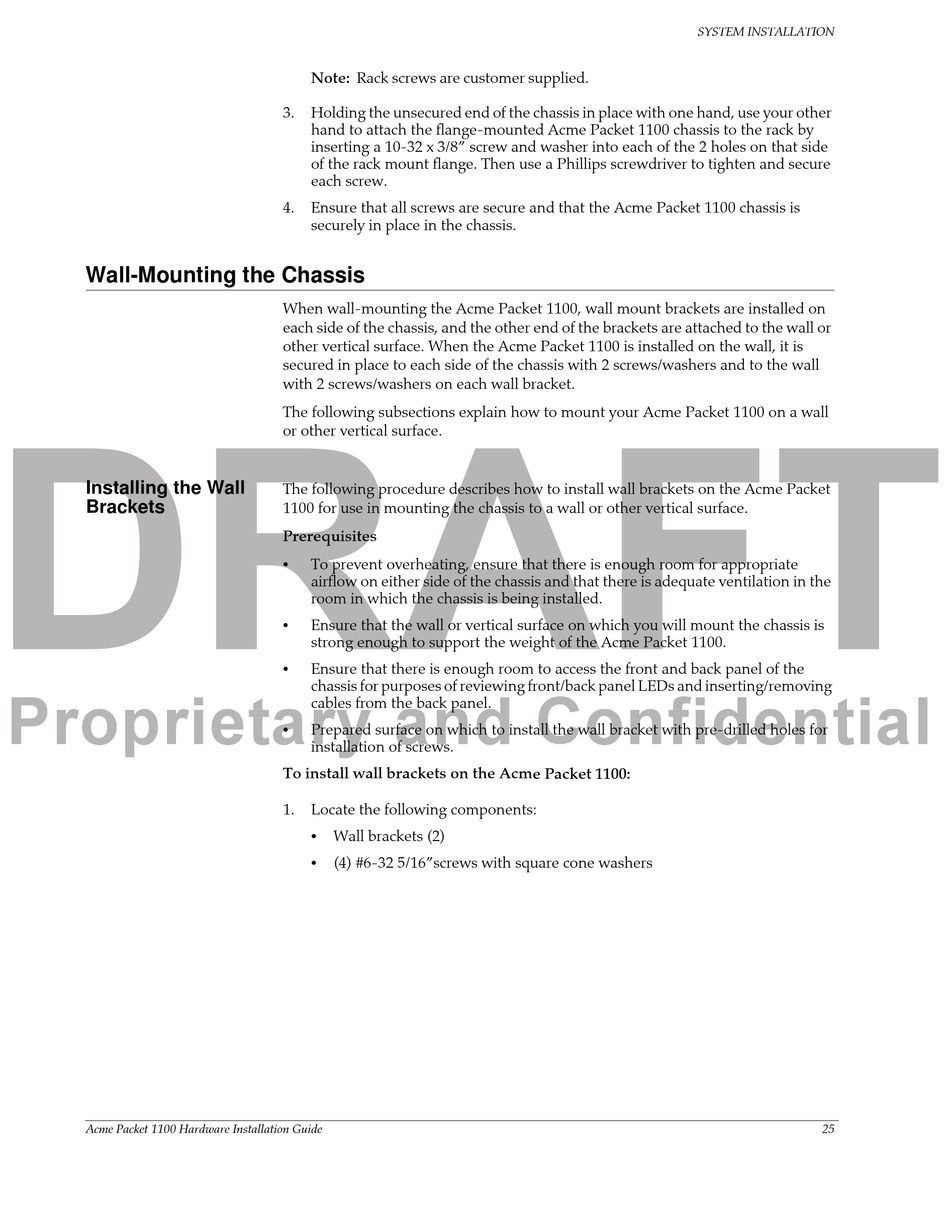

Wall-Mounting the Chassis

DRAFT
Installing the Wall
Brackets
Proprietary and Confidential
Acme Packet 1100 Hardware Installation Guide
Note: Rack screws are customer supplied.
3. Holding the unsecured end of the chassis in place with one hand, use your other
hand to attach the flange-mounted Acme Packet 1100 chassis to the rack by
inserting a 10-32 x 3/8" screw and washer into each of the 2 holes on that side
of the rack mount flange. Then use a Phillips screwdriver to tighten and secure
each screw.
4. Ensure that all screws are secure and that the Acme Packet 1100 chassis is
securely in place in the chassis.
When wall-mounting the Acme Packet 1100, wall mount brackets are installed on
each side of the chassis, and the other end of the brackets are attached to the wall or
other vertical surface. When the Acme Packet 1100 is installed on the wall, it is
secured in place to each side of the chassis with 2 screws/washers and to the wall
with 2 screws/washers on each wall bracket.
The following subsections explain how to mount your Acme Packet 1100 on a wall
or other vertical surface.
The following procedure describes how to install wall brackets on the Acme Packet
1100 for use in mounting the chassis to a wall or other vertical surface.
Prerequisites
To prevent overheating, ensure that there is enough room for appropriate
•
airflow on either side of the chassis and that there is adequate ventilation in the
room in which the chassis is being installed.
• Ensure that the wall or vertical surface on which you will mount the chassis is
strong enough to support the weight of the Acme Packet 1100.
Ensure that there is enough room to access the front and back panel of the
•
chassis for purposes of reviewing front/back panel LEDs and inserting/removing
cables from the back panel.
Prepared surface on which to install the wall bracket with pre-drilled holes for
•
installation of screws.
To install wall brackets on the Acme Packet 1100:
1. Locate the following components:
• Wall brackets (2)
• (4) #6-32 5/16"screws with square cone washers
SYSTEM INSTALLATION
25
