Hardware Layout and configuration

2 Hardware Layout and configuration
The STM32091C-EVAL evaluation board is designed around the STM32F091VCT6 (100-
pin LQFP package). The hardware block diagram
between STM32F091VCT6 and peripherals (8x USARTs, RS232, RS485, Audio DAC,
microphone ADC, Touch sensing buttons, TFT LCD, CAN, IrDA, IR LED, IR receiver, LDR,
MicroSD card, CEC on two HDMI connectors, Smart card slot, RF E2PROM and
Temperature sensor) and
evaluation board.
8/58
Figure 3 will help you locate these features on the actual

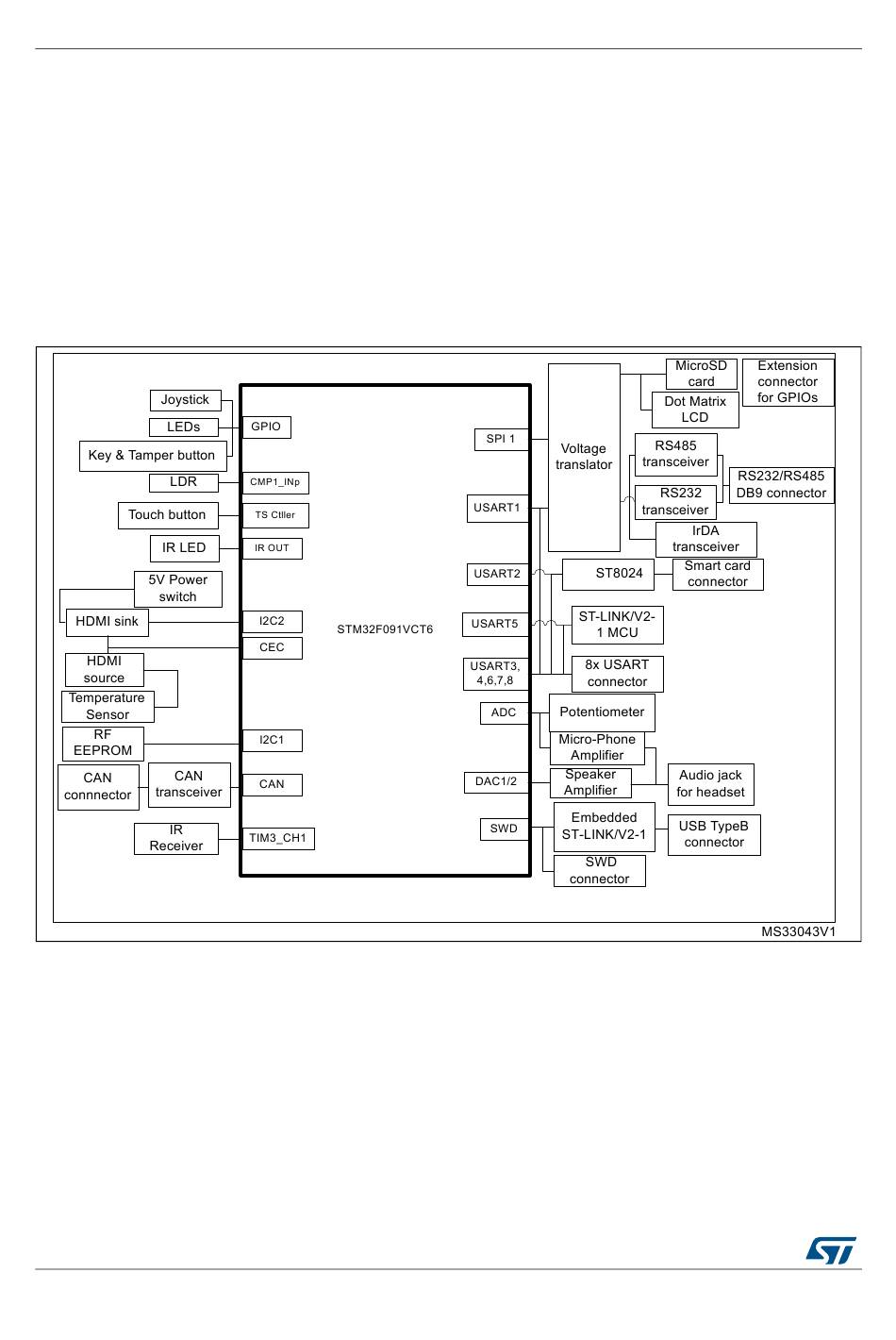

Figure 2. Hardware Block Diagram
