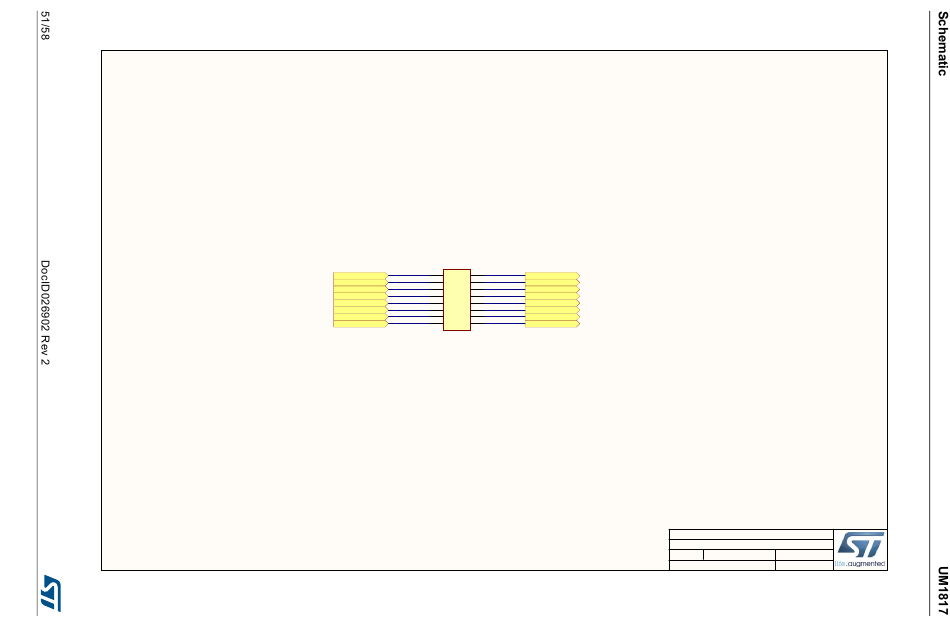

Figure 34. STM32091C-EVAL 8x_USART

CN1
PA9 PD6
8xUSART1_TX 1 2
PD5 PD9
8xUSART2_TX 3 4
PD8 PC11
8xUSART3_TX 5 6
PC10 PB4
8xUSART4_TX 7 8
PB3 PF10
8xUSART5_TX 9 10
PF9 PF3
8xUSART6_TX 11 12
PF2 PC9
8xUSART7_TX 13 14
PC8 PA10
8xUSART8_TX 15 16
Header 8X2
8xUSART2_RX
8xUSART3_RX
8xUSART4_RX
8xUSART5_RX
8xUSART6_RX
8xUSART7_RX
8xUSART8_RX
8xUSART1_RX
Title: 8x _USART
Project: STM32091C-EVAL
Size: A4 Reference:
Date: 7/25/2014
MB1169 Revision: B.1
Sheet: 14 of 14
