UM0600
User manual
STM3210C-EVAL
evaluation board
Introduction
The STM32F107VCT evaluation board STM3210C-EVAL is designed as a complete
development platform for STMicroelectronic's ARM Cortex-M3 core-based STM32F107VCT
microcontroller with full speed USB-OTG, ethernet MAC, two channels of CAN2.0A/B
compliant interface, 2 channels I2S, 2 channels I2C, 5 channels USART with smartcard
support, 3 channels SPI, internal 64 KB SRAM and 256 KB Flash, JTAG and SWD
debugging support.
The full range of hardware features on the board help you evaluate all peripherals (USB-
TM
OTG FS, ethernet, motor control, CAN, microSD Card
, smartcard, USART, audio DAC,
MEMS, EEPROM... etc.) and develop your own applications. Extension headers make it
easy to connect a daughterboard or wrapping board for your specific application.

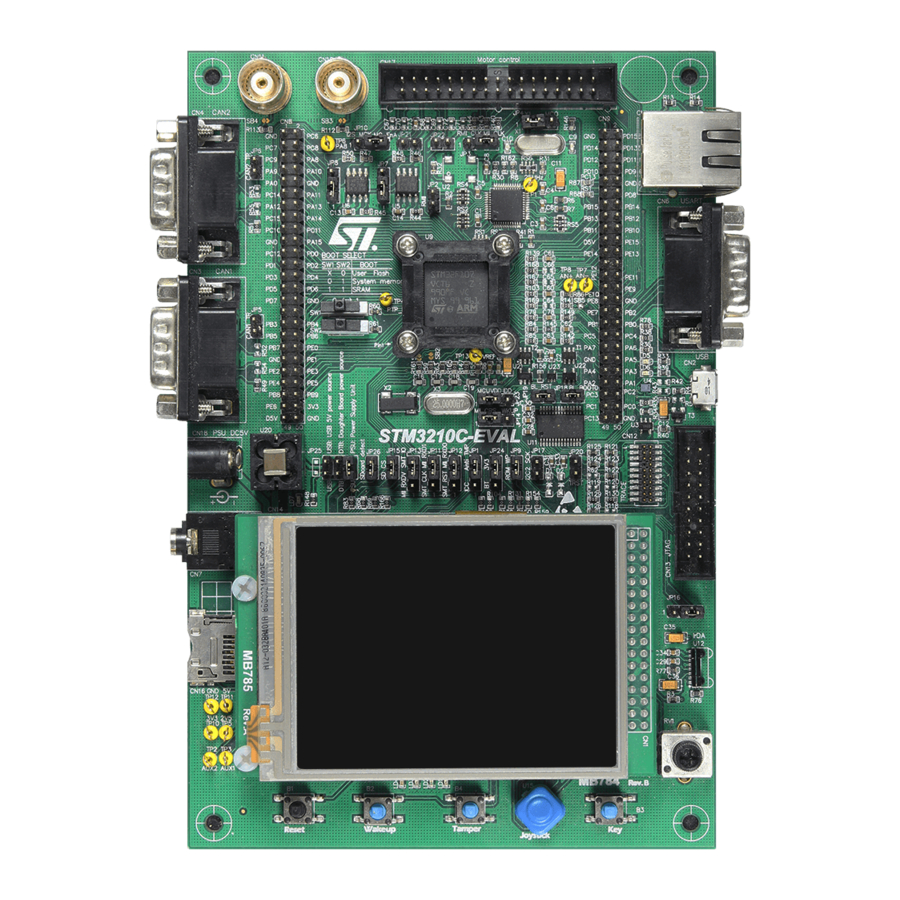

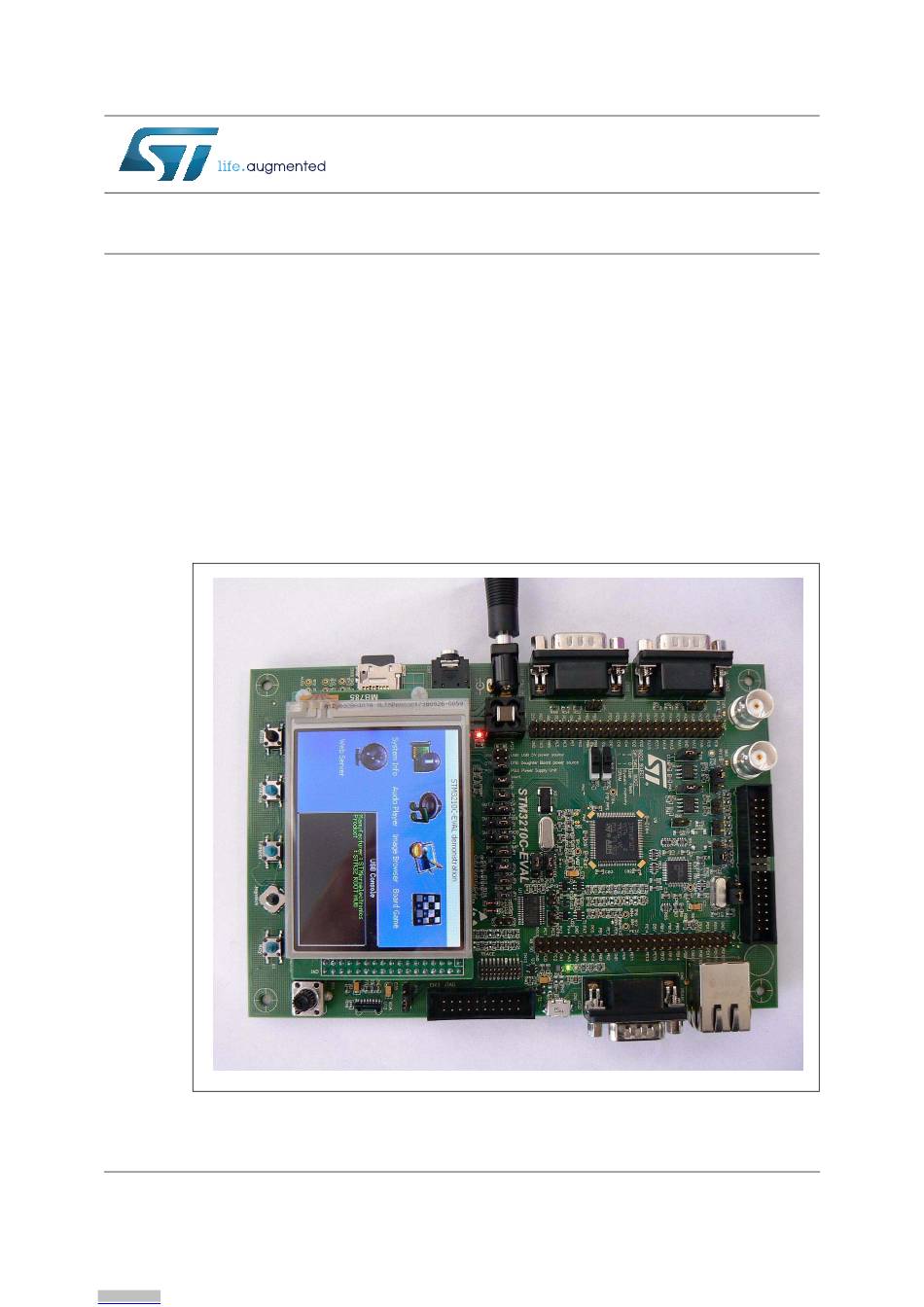

Figure 1. STM3210C-EVAL evaluation board
August 2013
DocID15082 Rev 5
1/54
www.st.com
Arrow.com.
Downloaded from
Advertisement
Table of Contents
Related Manuals for ST STM3210C-EVAL
Summary of Contents for ST STM3210C-EVAL
- Page 1 STM3210C-EVAL evaluation board Introduction The STM32F107VCT evaluation board STM3210C-EVAL is designed as a complete development platform for STMicroelectronic's ARM Cortex-M3 core-based STM32F107VCT microcontroller with full speed USB-OTG, ethernet MAC, two channels of CAN2.0A/B compliant interface, 2 channels I2S, 2 channels I2C, 5 channels USART with smartcard support, 3 channels SPI, internal 64 KB SRAM and 256 KB Flash, JTAG and SWD debugging support.
-
Page 2: Table Of Contents
Contents UM0600 Contents Overview ..........6 Features . - Page 3 Schematics ..........32 Appendix A STM3210C-EVAL I/O assignment ......50 Revision history .
- Page 4 STM3210C-EVAL I/O assignment ........
- Page 5 STM3210C-EVAL IDD measurement circuit........20...
-
Page 6: Overview
Demonstration software is preloaded in the board’s Flash memory for easy demonstration of device peripherals in stand-alone mode. For more information and to download the latest version available, please refer to STM3210C-EVAL demonstration firmware available on the web: www.st.com/mcu. Order code To order the STM32F107VCT evaluation board, use the order code STM3210C-EVAL. -
Page 7: Hardware Layout And Configuration
UM0600 Hardware layout and configuration Hardware layout and configuration The STM3210C-EVAL evaluation board is designed around the STM32F107VCT in a 100- pin LQFP package. The hardware block diagram Figure 2 illustrates the connection between the STM32F107VCT and peripherals (LCD, EEPROM, MEMS, USART, IrDA,... -
Page 8: Figure 3. Stm3210C-Eval Evaluation Board Layout
Hardware layout and configuration UM0600 Figure 3. STM3210C-EVAL evaluation board layout CN8, CN9 Extension header CN17 Motor control CN10, CN11 BNC RJ45 CAN2 connector RS-232 STM32F107VCT CAN1 USB microAB connector CN12 CN18 Trace 5V power CN13 JTAG Audio jack CN14... -
Page 9: Power Supply
Hardware layout and configuration Power supply The STM3210C-EVAL evaluation board is designed to be powered by a 5 V DC power supply and to be protected by PolyZen from a wrong power plug-in event. It is possible to configure the evaluation board to use any of following three sources for the power supply. -
Page 10: Table 2. Mcu Power Consumption Measurement Related Jumpers
1 Kohm) in series and IDD current measurement circuit in parallel when JP23 is set as shown to the right. MCU power consumption measurement is enabled. The LED LD7 is lit when the STM3210C-EVAL board is powered by the 5 V correctly. 10/54 DocID15082 Rev 5 Arrow.com. -
Page 11: Boot Option
X3, 25 MHz crystal with socket for an STM32F107VCT microcontroller, it can be removed from the socket when an internal RC clock is used. Reset source The reset signal of the STM3210C-EVAL board is active low and the reset sources include: • Reset button, B1 •... -
Page 12: Audio
UM0600 Audio The STM3210C-EVAL evaluation board supports stereo audio play by using an audio DAC CS43L22 connected to both an I2S2 port and one channel of the DAC of microcontroller STM32F107VCT. The CS43L22 can be configured via the I2C1 bus when JP9 is fitted (default setting). -
Page 13: Rs-232 And Irda
Both RS-232 and IrDA communications are supported by D-type 9-pin RS-232 connectors CN6 and IrDA transceiver U12 which connect to USART2 of the STM32F107VCT on the STM3210C-EVAL evaluation board. Two signals, Bootloader_BOOT0 and Bootloader_RESET, are added on the RS-232 connector for ISP support. -
Page 14: Motor Control
Hardware layout and configuration UM0600 Motor control The STM3210C-EVAL evaluation board supports a three-phase brushless motor control via a 34-pin connector CN17, which provides all required control and feedback signals to and from a motor power-driving board. Available signals on this connector include emergency stop, motor speed, 3 phase motor current, bus voltage, heat sink temperature from the motor driving board and 6 channels of PWM control signal going to the motor driving circuit. -
Page 15: Smartcard
Hardware layout and configuration 2.10 Smartcard STMicroelectronic’s smartcard interface chip ST8024 is used on the STM3210C-EVAL board for asynchronous 3 V and 5 V smartcards. It performs all supply protection and control functions based on the connections with the STM32F107VCT listed in Table Table 10. -
Page 16: Microsd Card
Hardware layout and configuration UM0600 2.11 MicroSD card The 2 GByte (or more) microSD card connected to SPI3 of STM32F107VCT is available on the board. MicroSD card detection is managed by the standard I/O port PE0. JP15 must remain fitted to enable microSD card chip select. Table 12. -
Page 17: Ethernet
LED LD6 is lit: • in Host mode when the power switch (U3) is ON (STM3210C-EVAL is acting as a USB host), • in Device mode when a cable is connected to a PC (STM3210C-EVAL is acting as a USB device and VBUS is powered by another USB host). -
Page 18: Mems
Hardware layout and configuration UM0600 2.15 MEMS An ST MEMS device LIS302DL is connected to the I2C1 bus of STM32F107VCT. 2.16 Development and debug support The two debug connectors available on STM3210C-EVAL evaluation board are: CN13, standard 20-pin JTAG interface connector that is compliant with the debug tools of ARM7 and ARM9 and cortex M3. -
Page 19: Display And Input Devices
MII_CRS of the ethernet. You may refer to Table 2 for details. The STM3210C-EVAL board also supports a second optional 2.4” TFT LCD without touch screen that can be mounted on CN15 connector. The 2.4” TFT LCD is not populated by default. -
Page 20: Idd Measurement
M74HC4060TTR Oscillator frequency 30KHz MS32845V1 The circuit above is implemented on STM3210C-EVAL for IDD measurement. In Run mode, IDD current is measured using MAX9938FEUK+ (U21) connected to the 1ohm shunt resistor. In this case IDD_CNT_EN remains high during measurement and JP23 jumper must be set to 2<->3. -
Page 21: Figure 5. Stm3210C-Eval Idd Low Power Mode Measurement Timing Diagram
UM0600 Hardware layout and configuration Figure 5. STM3210C-EVAL IDD Low power mode measurement timing diagram IDD measure Wake-up Stop or Standby Clear CNT MCU mode 150ms 30ms 450ms IDD_CNT_EN Q13=LOW_POWER_EN (T2 pin 3) Q14=LP_WAKEUP Q14n=Switch control (U22 pin 4) MS32817V1... -
Page 22: Connectors
Connectors UM0600 Connectors Motor control connector CN17 Figure 6. Motor control connector CN17 viewed from above the PCB MS32821V1 Table 15. Motor control connector CN17 Pin of Pin number Pin number Pin of Description Description STM32F107VCT of CN17 of CN17 STM32F107VCT Emergency stop PE15... -
Page 23: Analog Input Connector Cn10 And Cn11
UM0600 Connectors Analog input connector CN10 and CN11 Figure 7. Analog input connector CN10 and CN11 viewed from the bottom MS32822V1 Table 16. Analog input connector CN10 and CN11 Pin number Description Pin number Description Analog input PB0 and PA7 for CN10 and CN11 respectively CAN D-type 9-pin male connector CN3 and CN4 Figure 8. -
Page 24: Ethernet Rj45 Connector Cn1
Connectors UM0600 Ethernet RJ45 connector CN1 Figure 9. Ethernet RJ45 connector CN1 viewed from the front MS32824V1 Table 18. RJ45 connector CN1 Pin number Description Pin number Description TxData+ TxData- RxData+ Shield Shield RxData- Shield Shield Trace debugging connector CN12 Figure 10. -
Page 25: Rs-232 Connector Cn6
UM0600 Connectors RS-232 connector CN6 Figure 11. RS-232 connector CN6 with ISP support viewed from the front MS32823V1 Table 20. RS-232 connector CN6 with ISP support Pin number Description Pin number Description Bootloader_RESET RS232_RX (PD6) RS232_TX (PD5) Bootloader_BOOT0 JTAG debugging connector CN13 Figure 12. -
Page 26: Daughterboard Extension Connector Cn8 And Cn9
Daughterboard extension connector CN8 and CN9 Two 50-pin male headers CN8 and CN9 can be used to connect a daughterboard or standard wrapping board to the STM3210C-EVAL evaluation board. All 80 GPI/Os are available on it. The space between these two connectors and power position, GND and RESET pin are defined as a standard, which allows to develop common daughterboards for several evaluation boards. - Page 27 UM0600 Connectors Table 22. Daughterboard extension connector CN8 (continued) Description Alternative function How to disconnect with function block on STM3210C-EVAL Trace_D3 I2S_MCK/MC JP10 open Disconnect STM3210C-EVAL board from motor power drive board JP4 open PA10 USB_ID Remove R38 or disconnect USB cable...
-
Page 28: Table 23. Daughterboard Extension Connector Cn9
Connectors UM0600 Table 23. daughterboard extension connector CN9 Description Alternative function How to disconnect with component on STM3210C-EVAL board Keep JP22 open. Disconnect STM3210C-EVAL board from motor PD14 power drive board. PD12 Ethernet Remove RS2 PD10 Ethernet/Smartcard Keep JP11 open... -
Page 29: Audio Jack Cn7
UM0600 Connectors Table 23. daughterboard extension connector CN9 (continued) Description Alternative function How to disconnect with component on STM3210C-EVAL board PB12 Ethernet / Audio Remove RS3 PB10 Ethernet Remove RS2 PE15 Remove R139 PE13 Disconnect STM3210C-EVAL board from motor power drive board... -
Page 30: Microsd Card Connector Cn16
Connectors UM0600 3.11 MicroSD card connector CN16 Figure 13. MicroSD card connector CN16 viewed from the front Table 24. MicroSD card connector CN16 Pin number Description Pin number Description Vss/GND MicroSDcard_CS (PA4) MicroSDcard_DOUT(PC11) MicroSDcard_DIN(PC12) +3V3 MicroSDcard_CLK (PC10) MicroSDcard_detect (PE0) 3.12 USB MicroAB connector CN2 Figure 14. -
Page 31: Power Connector Cn18
UM0600 Connectors 3.13 Power connector CN18 Your STM3210C-EVAL evaluation board can be powered from a DC 5 V power supply via the external power supply jack (CN18) shown in Figure 15. The central pin of CN18 must be positive. Figure 15. Power supply connector CN18 viewed from the front... -
Page 32: Schematics
Schematics UM0600 Schematics This section provides the following schematics: • Figure 17: STM3210C on page 33 • Figure 18: MCU on page 34 • Figure 19: Ethernet on page 35 • Figure 20: Full speed USB-OTG on page 36 • Figure 21: Audio on page 37 •... - Page 33 UM0600 Schematics DocID15082 Rev 5 33/54 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from...
- Page 34 Schematics UM0600 34/54 DocID15082 Rev 5 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from...
- Page 35 UM0600 Schematics DocID15082 Rev 5 35/54 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
- Page 36 Schematics UM0600 36/54 DocID15082 Rev 5 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
- Page 37 UM0600 Schematics DocID15082 Rev 5 37/54 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
- Page 38 Schematics UM0600 38/54 DocID15082 Rev 5 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
- Page 39 UM0600 Schematics DocID15082 Rev 5 39/54 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
- Page 40 Schematics UM0600 40/54 DocID15082 Rev 5 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
- Page 41 UM0600 Schematics DocID15082 Rev 5 41/54 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
- Page 42 Schematics UM0600 42/54 DocID15082 Rev 5 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
- Page 43 UM0600 Schematics DocID15082 Rev 5 43/54 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
- Page 44 Schematics UM0600 44/54 DocID15082 Rev 5 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
- Page 45 UM0600 Schematics DocID15082 Rev 5 45/54 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
- Page 46 Schematics UM0600 46/54 DocID15082 Rev 5 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
- Page 47 UM0600 Schematics DocID15082 Rev 5 47/54 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
- Page 48 Schematics UM0600 48/54 DocID15082 Rev 5 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
- Page 49 UM0600 Schematics DocID15082 Rev 5 49/54 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
-
Page 50: Appendix A Stm3210C-Eval I/O Assignment
STM3210C-EVAL I/O assignment UM0600 Appendix A STM3210C-EVAL I/O assignment Table 27. STM3210C-EVAL I/O assignment Pin No. Pin name STM3210C-EVAL I/O assignment Trace_CK Trace_D0 Trace_D1 Trace_D2 Trace_D3 VBAT Battery PC13-ANTI_TAMP Anti-tamper button / IDD_CNT_EN PC14-OSC32_IN 32K OSC PC15-OSC32_OUT 32K OSC VSS_5... - Page 51 UM0600 STM3210C-EVAL I/O assignment Table 27. STM3210C-EVAL I/O assignment (continued) Pin No. Pin name STM3210C-EVAL I/O assignment Potentiometer VBAT_measure MC_ADC8 pin 17(Current B)/BNC2 MC_ADC9 pin 19 (Current C) Boot1/ LCD CS SmartCard_OFF MC_TIM1_CH1N pin 5 (UL) MC_TIM1_CH1 pin 3 (UH)
- Page 52 STM3210C-EVAL I/O assignment UM0600 Table 27. STM3210C-EVAL I/O assignment (continued) Pin No. Pin name STM3210C-EVAL I/O assignment OTG_VBUS PA10 OTG_ID PA11 OTG_DM PA12 OTG_DP PA13 Debug TMS VSS_2 VDD_2 +3V3 PA14 Debug TCK PA15 Debug TDI PC10 SCL_Sdcard_LCD PC11 MISO_Sdcard_LCD...
-
Page 53: Revision History
UM0600 Revision history Revision history Table 28. Document revision history Date Revision Changes 26-Feb-2009 Initial release 19-Jun-2009 Update for PCB rev.B 16-Oct-2009 Update to make schematics searchable Updated LCDs’ PCB. Correction to Figure 10-Feb-2011 Replace TPS2041 by STMPS2141STR in Figure 20: Full speed USB-OTG. - Page 54 No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.
