How to Programme

4 How to Programme
4.1.1 How to Programme on the Graphical
LCP

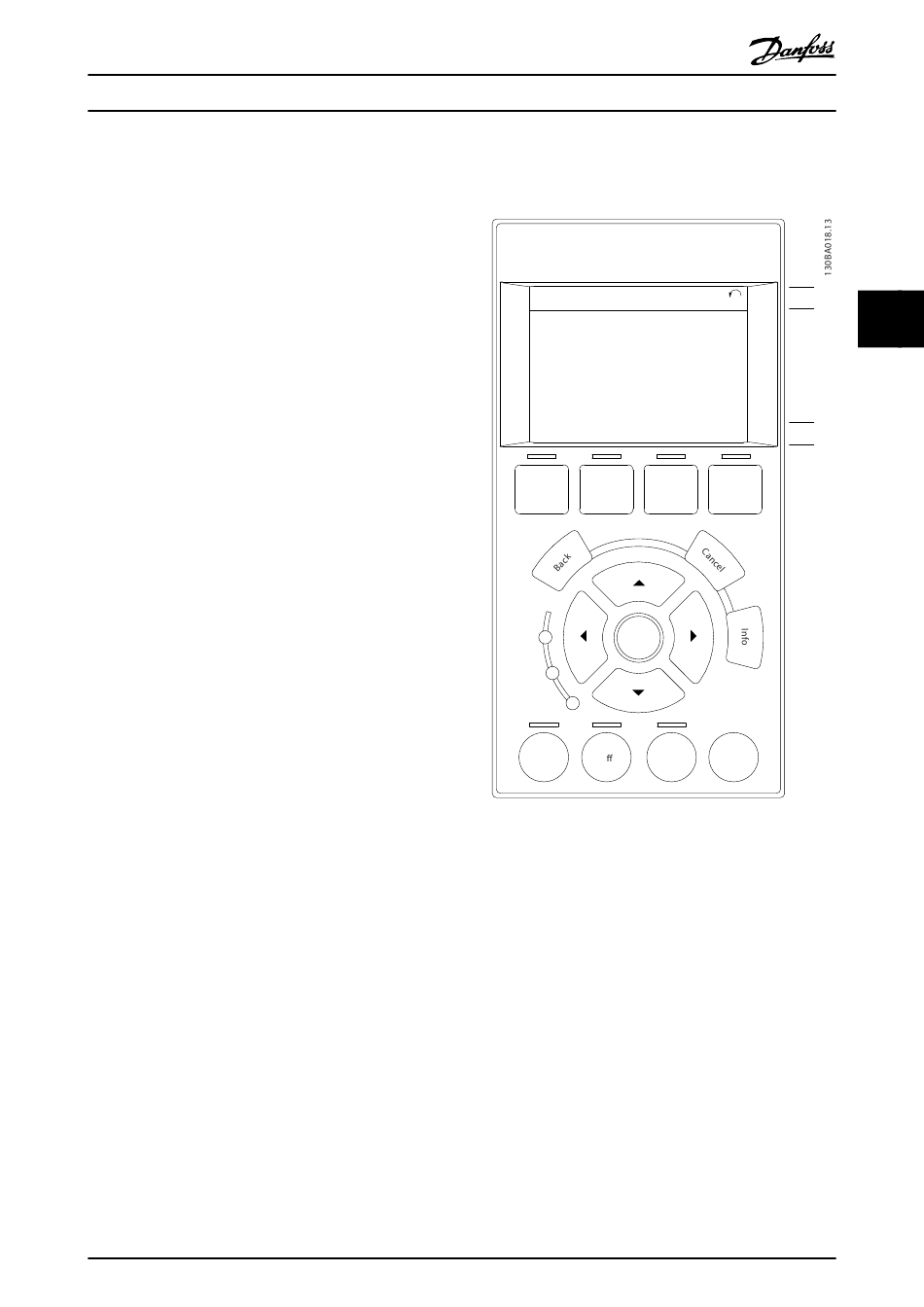

The control panel is divided into four functional groups
1. Graphical display with Status lines.
2. Menu keys and indicator lights - changing
parameters and switching between display
functions.
3. Navigation keys and indicator lights (LEDs).
4. Operation keys and indicator lights (LEDs).
All data is displayed in a graphical LCP display, which can
show up to five items of operating data while displaying
[Status].
Display lines
a. Status line: Status messages displaying icons and
graphic.
b. Line 1-2: Operator data lines displaying data
defined or chosen by the user. By pressing the
[Status] key, up to one extra line can be added.
c. Status line: Status messages displaying text.
VLT ® Automation Drive FC 300 12-Pulse
Operating Instructions High Power
1
2
3
4
®
MG34Q202 - VLT is a registered Danfoss trademark
Status
1234rpm 10,4A
43,5Hz
Run OK
Quick Main
Status
Menu Menu
OK
On
Warn.
Alarm
Hand Auto
O
on on
a
1(0)
4
43,5Hz
b
c
Alarm
Log
Reset
55
