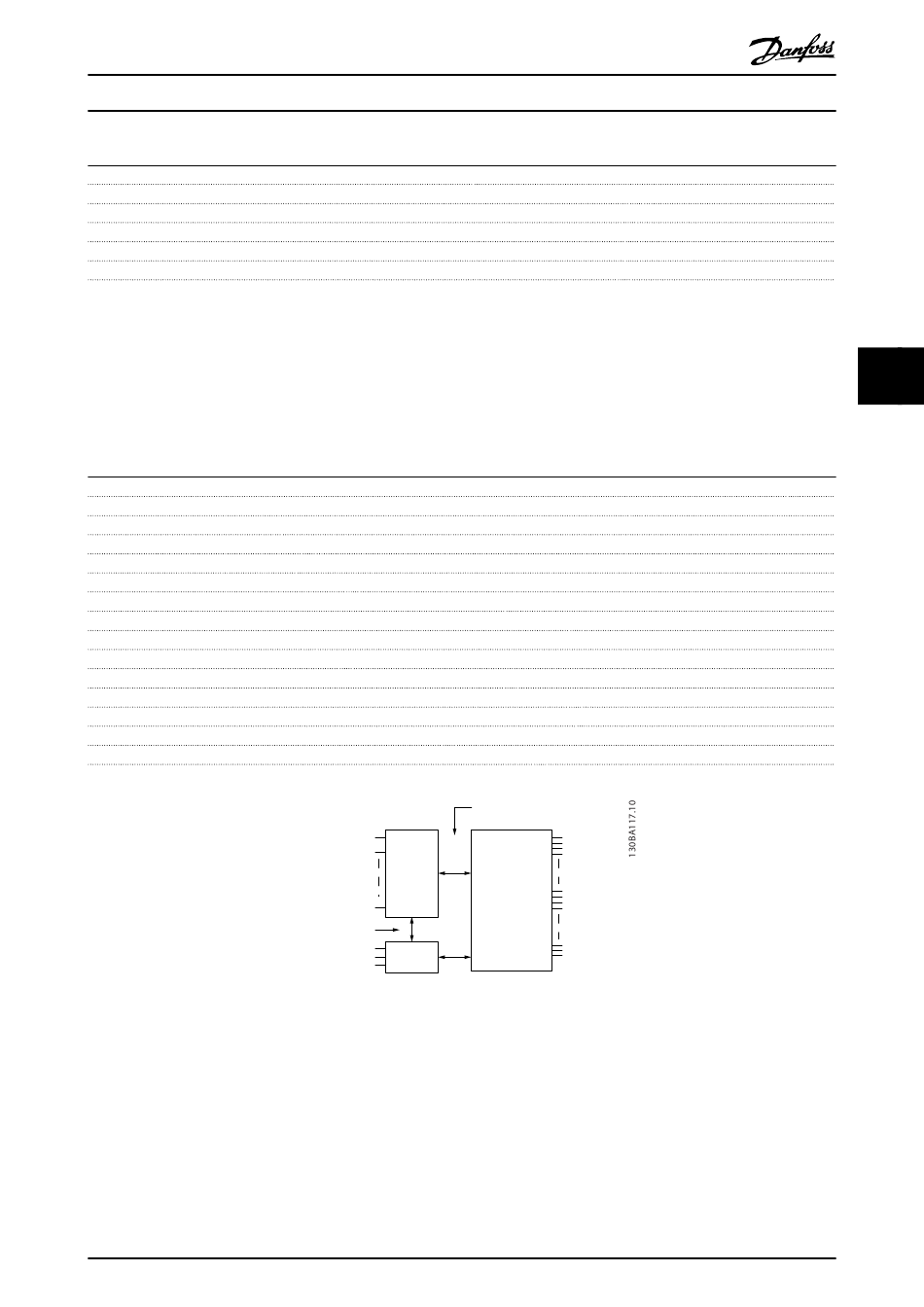

Danfoss VLT FC 300 Operating Instructions Manual page 95

General Specifications
3)
Safe stop Terminal 37 (Terminal 37 is fixed PNP logic)
Voltage level
Voltage level, logic'0' PNP
Voltage level, logic'1' PNP
Nominal input current at 24 V
Nominal input current at 20 V
Input capacitance
All digital inputs are galvanically isolated from the supply voltage (PELV) and other high-voltage terminals.
1) Terminals 27 and 29 can also be programmed as output.
2) Except safe stop input Terminal 37.
3) Terminal 37 can only be used as safe stop input. Terminal 37 is suitable for category 3 2006/42/EC installations according to
EN 954-1,PL d acc. EN ISO 13849-1 and SIL 2 acc. EN 62061 (safe stop according to category 0 EN 60204-1) as required by the EU
Machinery Directive 98/37/EC. Terminal 37 and the Safe Stop function are designed in conformance with EN 60204-1, EN 50178,
EN 61800-5-2, EN 62061, EN ISO 1384 and EN 954-1. For correct and safe use of the Safe Stop function follow the related
information and instructions in the VLT AutomationDrive Design Guide, MG33BXYY.
Analog inputs
Number of analog inputs
Terminal number
Modes
Mode select
Voltage mode
Voltage level
Input resistance, R
i
Max. voltage
Current mode
Current level
Input resistance, R
i
Max. current
Resolution for analog inputs
Accuracy of analog inputs
Bandwidth
The analog inputs are galvanically isolated from the supply voltage (PELV) and other high-voltage terminals.
VLT ® Automation Drive FC 300 12-Pulse
Operating Instructions High Power
PELV isolation
+24V
Control
18
High
voltage
37
Functional
isolation
RS485
®
MG34Q202 - VLT is a registered Danfoss trademark
Voltage or current
Switch S201 and switch S202
Switch S201/switch S202 = OFF (U)
-10 to +10 V (scaleable)
Switch S201/switch S202 = ON (I)
0/4 to 20 mA (scaleable)
Max. error 0.5% of full scale
Mains
Motor
DC-Bus
0 - 24 V DC
< 4 V DC
>20 V DC
50 mA rms
60 mA rms
400 nF
5 5
2
53, 54
approx. 10 kΩ
± 20 V
approx. 200 Ω
30 mA
10 bit (+ sign)
100 Hz
