3.2.3 Terminal Locations, F8-F14 - 12-Pulse

The 12-pulse F enclosures have seven different sizes, F8,
F9, F10, F11, F12,F13, and F14. The F8, F10,F12, and F14
consist of an inverter cabinet on the right and rectifier
3
3
Terminal locations - Inverter and Rectifier Frame size F8 and F9

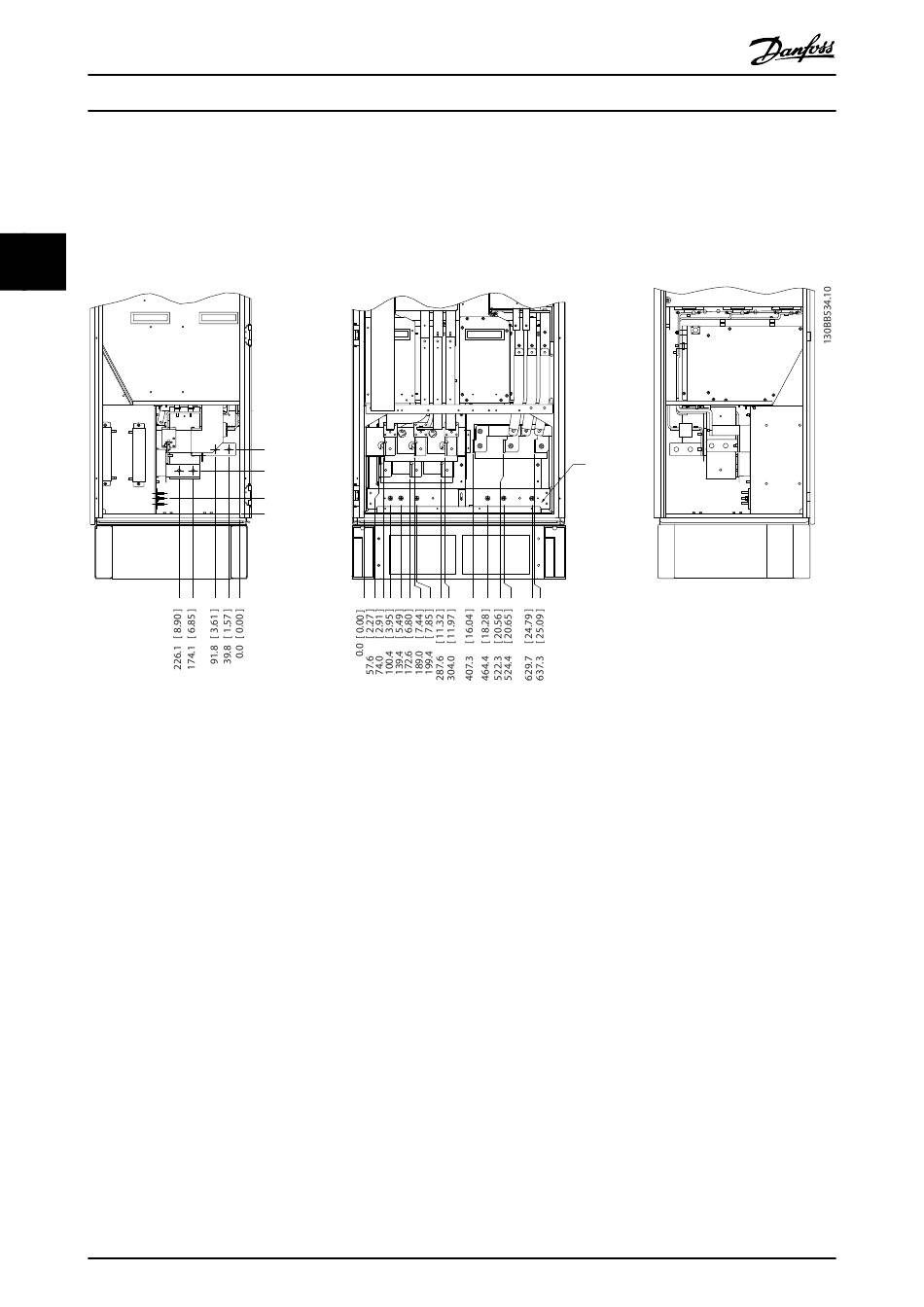

Illustration 3.11 Terminal locations - Inverter and Rectifier Cabinet - F8 and F9 (front, left and right side view). The gland plate is 42 mm
below .0 level.
1) Earth ground bar
16
VLT
®
Automation Drive FC 300 12-Pulse
Operating Instructions High Power
239.6 [ 9.43 ]
R2/L12
91-1
S2/L22
92-1
T2/L32
160.0 [ 6.30 ]
91
S1/L21
R1/L11
92
T1/L31 93
56.6 [ 2.23 ]
0.0 [ 0.00 ]
®
MG34Q202 - VLT
is a registered Danfoss trademark
cabinet on the left. The F9, F11 and F13 have an additional
options cabinet left of the rectifier cabinet. The F9 is an F8
with an additional options cabinet. The F11 is an F10 with
an additional options cabinet. The F13 is an F12 with an
additional options cabinet.
