How to Install
Terminal Locations - Rectifier (F14)
273.1 [10.8]
253.1 [10.0]
203.1 [8.0]
EARTH GROUND 56.6 [2.2]
.0 [.0]
MAINS SIDE

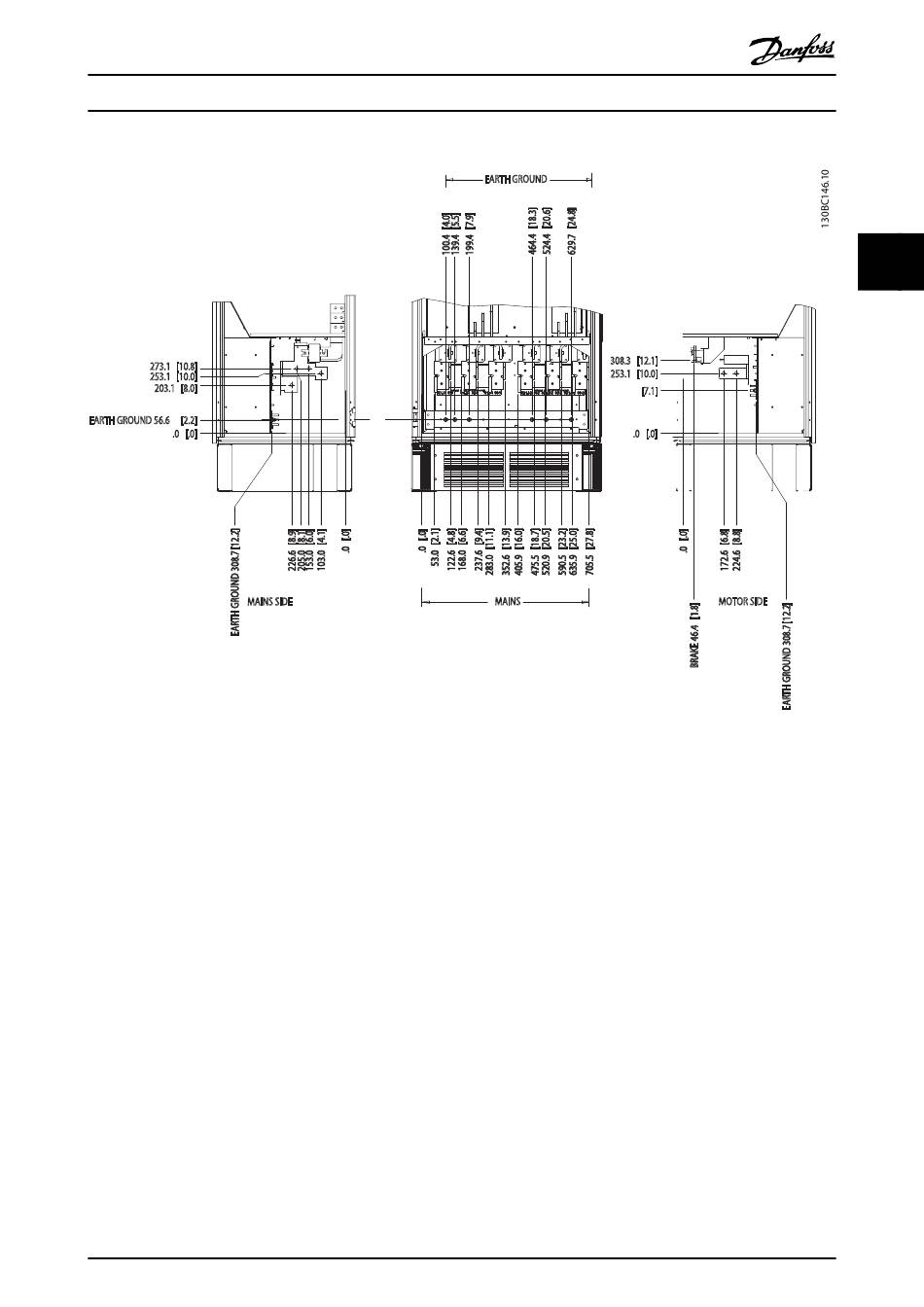

Illustration 3.16 Terminal Locations - Rectifier (Left side, front and right side view). The gland plate is 42 mm below .0 level.
VLT ® Automation Drive FC 300 12-Pulse
Operating Instructions High Power
EARTH GROUND
MAINS
®
MG34Q202 - VLT is a registered Danfoss trademark
308.3 [12.1]
253.1 [10.0]
[7.1]
.0 [.0]
MOTOR SIDE
