How to Install
1
4
2
5
6
3

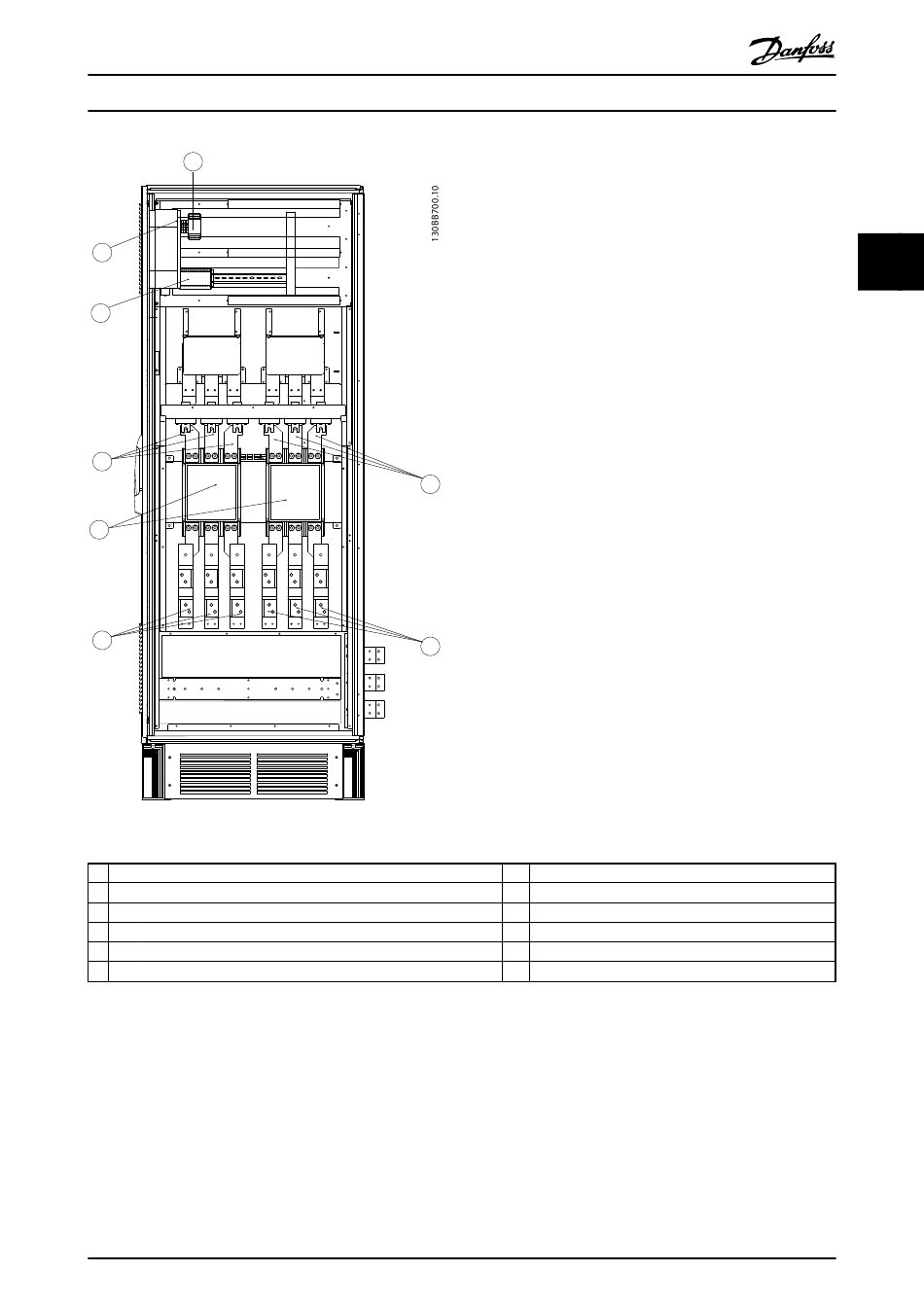

Illustration 3.30 Options Cabinet, frame size F11 and F13
1) Pilz Relay Terminal
2) RCD or IRM Terminal
3) Mains/6 phase
R1 S1 T1 R2 S2
91-1 92-1 93-1 91-2 92-2 93-2
L1-1 L2-1 L3-1 L1-2 L2-2 L3-2
VLT ® Automation Drive FC 300 12-Pulse
Operating Instructions High Power
5
3
T2
®
MG34Q202 - VLT is a registered Danfoss trademark
4) Safety Relay Coil Fuse with Pilz Relay
See fuse tables for part numbers
5) Mains Fuses, (6 pieces)
See fuse tables for part numbers
6) 2 x 3-phase manual disconnect
3 3
