In-System Programming Using UART Interface

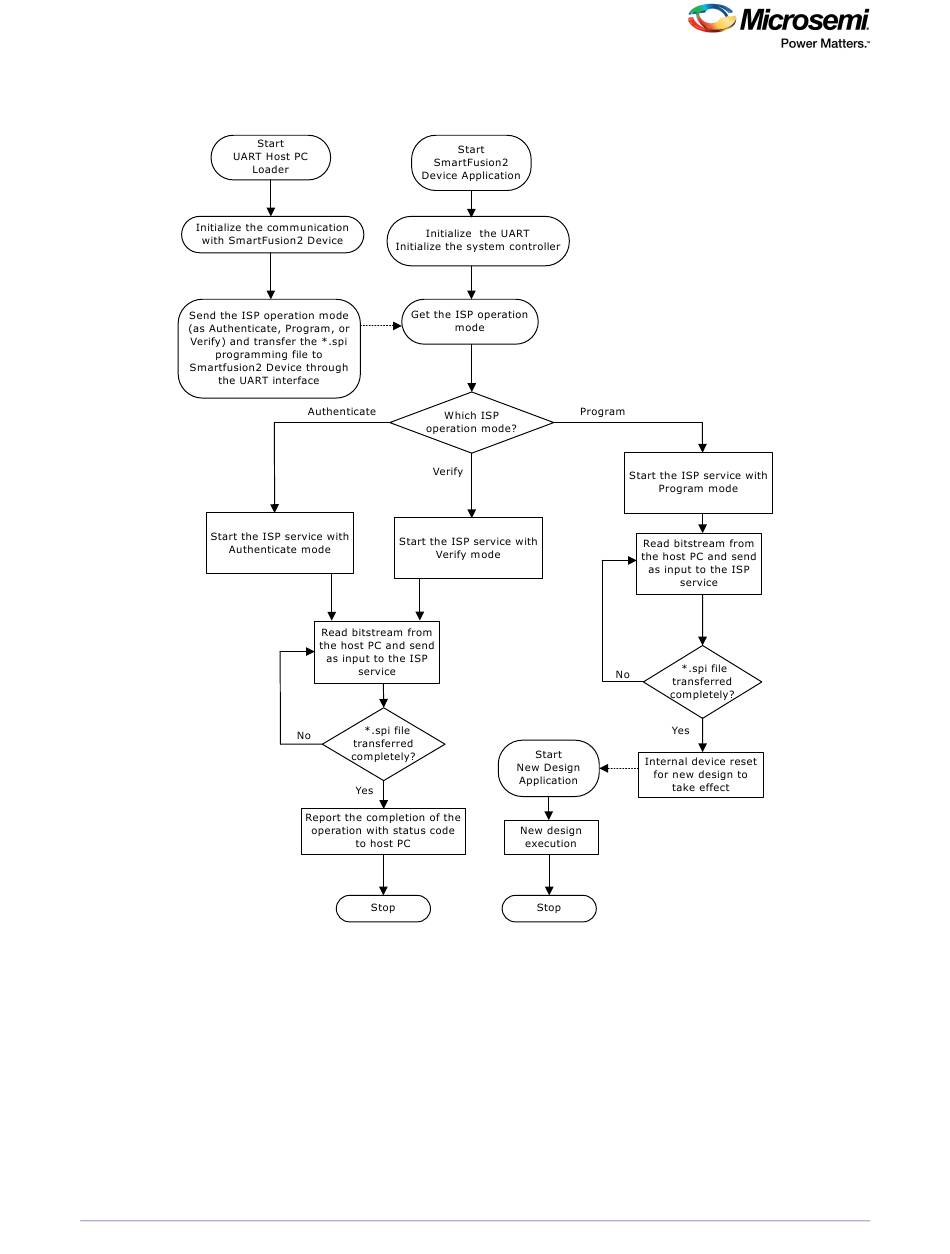

The following figure shows the ISP execution flow.
Figure 3 •
ISP Execution Flow
2.3
Setting Up the Demo Design
The following steps describe how to set up the demo design:
1.
Connect the FlashPro4 programmer to the J5 connector of the SmartFusion2 Security Evaluation Kit
board.
2.
Connect the host PC to the J18 connector using the USB Mini-B cable. The USB to UART bridge
drivers are automatically detected.
DG0454 Demo Guide Revision 8.0
6
