Appendix: Implementing Workaround to Access Fabric LSRAM after IAP/ISP Program
Operation
b. Select the Enable RESET Function check box in the Configuring Tamper 2_0 window.
c. Click OK. The System Reset is enabled.

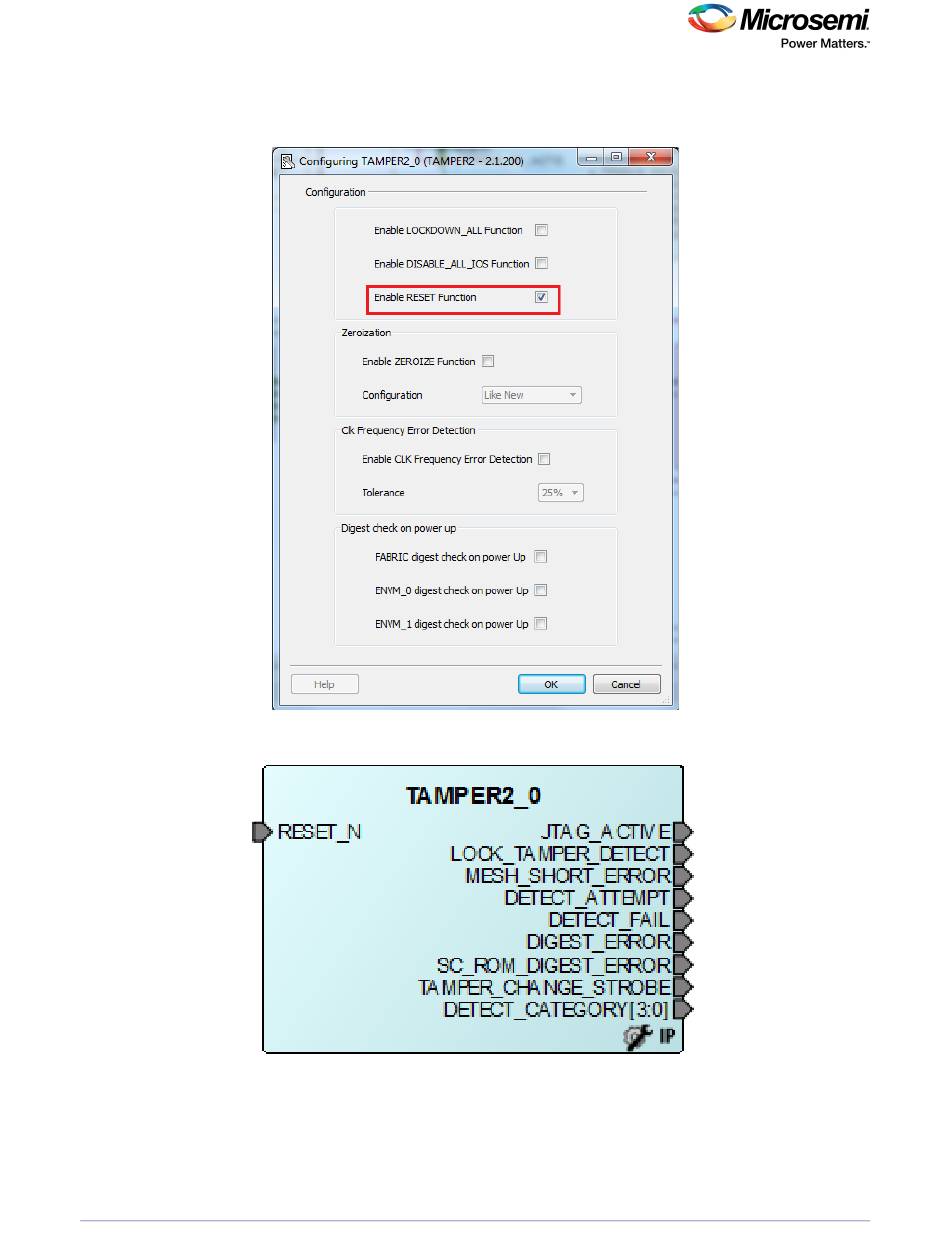

Figure 25 • Tamper Macro Configuration Window
The following figure shows the TAMPER2_0 macro after configuration.
Figure 26 • Tamper Macro
DG0454 Demo Guide Revision 8.0
24
