In-System Programming Using UART Interface
2.4
Running the Demo Design
1.
Download the demo design from:
http://soc.microsemi.com/download/rsc/?f=m2s_dg0454_liberov11p8_df
2.
Switch ON the SW7 power supply switch.
3.
Launch the FlashPro software.
4.
Click New Project.
5.
In the New Project window, type the project name.

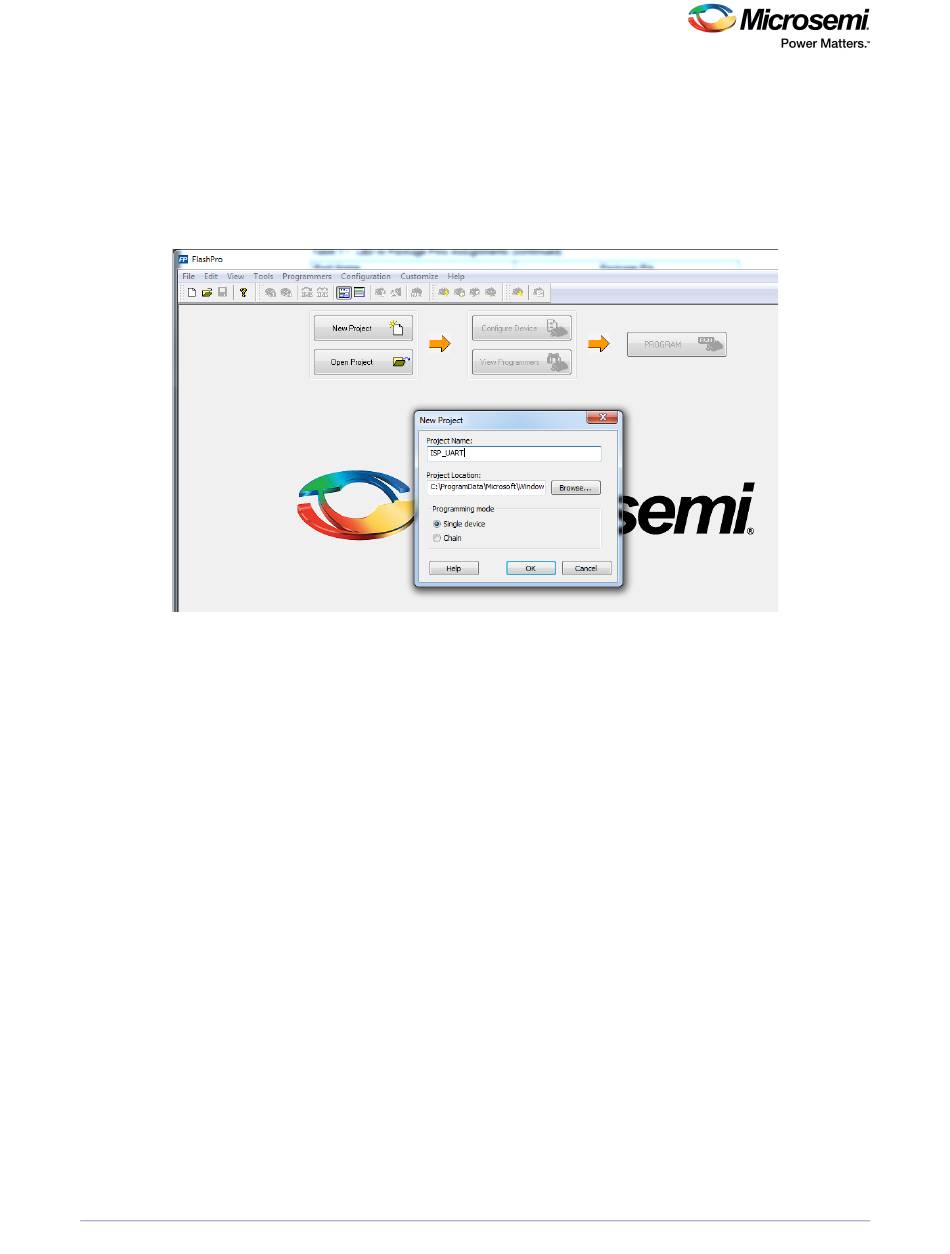

Figure 5 •
FlashPro New Project
6.
Click Browse and navigate to the location where you want to save the project.
7.
Select Single device as the Programming mode.
8.
Click OK to save the project.
9.
Click Configure Device.
DG0454 Demo Guide Revision 8.0
8
