SmartFusion2 SoC FPGA CoreTSE_AHB 1000 Base-T Loopback Demo
The Libero SmartDesign top-level module contains the CoreTSE_AHB loopback design and the test
bench module.

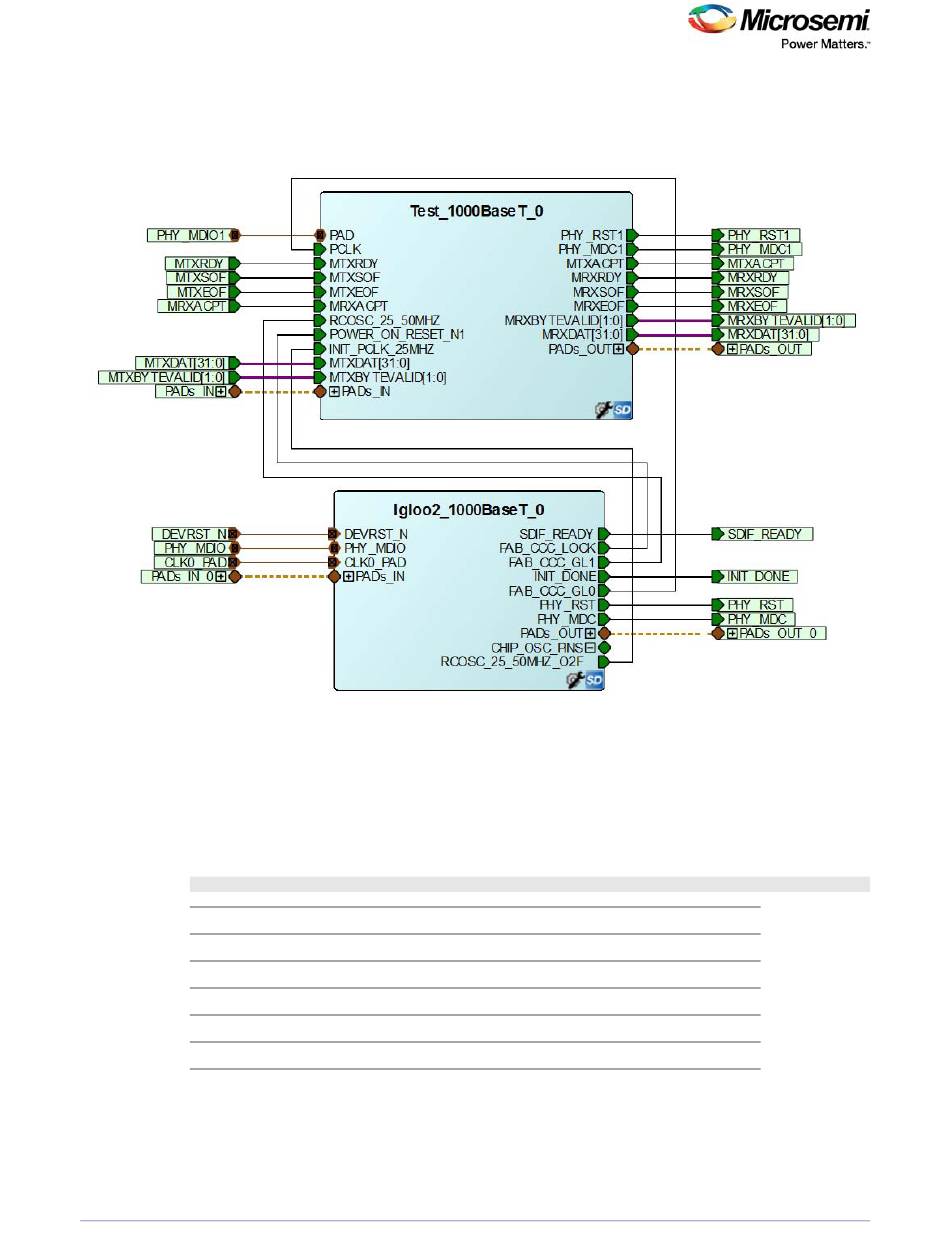

Figure 5 • Libero SmartDesign Top-Level Module
2.4

Setting Up the Demo Design

The following steps describe how to setup the demo.
1. Connect the FlashPro4 Programmer to the J5 connector on the SmartFusion2 FPGA Security
Evaluation Board.
2. Connect the jumpers to the SmartFusion2 FPGA Security Evaluation Board as specified in the
following table.
Table 2 •
Jumper
J22
J23
J24
J8
J3
3. Connect the power supply to the J6 connector.
SmartFusion2 Security FPGA Evaluation Kit Jumper Settings
Pin (from)
1
1
1
1
1
DG0637 Demo Guide Revision 3.0
Pin (to) Comments
2 Default
2 Default
2 Default
2 Default
2 Default
