SmartFusion2 SoC FPGA - Adaptive FIR Filter Demo
2.5

Setting Up the Demo Design for SmartFusion2 Starter Kit

The following steps describe how to setup the hardware demo for SmartFusion2 Starter kit:
1. Connect the jumpers on the SmartFusion2 Starter kit board as shown in the following table.
Table 2 •
Jumper Configuration
JP1
JP2
JP3
2. Connect the FlashPro4 programmer to the P5 connector of the SmartFusion2 Starter kit board.
3. Connect the Host PC USB port to the P1 Mini USB connector on the SmartFusion2 Starter kit board
using the USB Mini-B cable.
The following figure shows the board setup for running the Adaptive FIR filter demo on the
SmartFusion2 Starter kit.

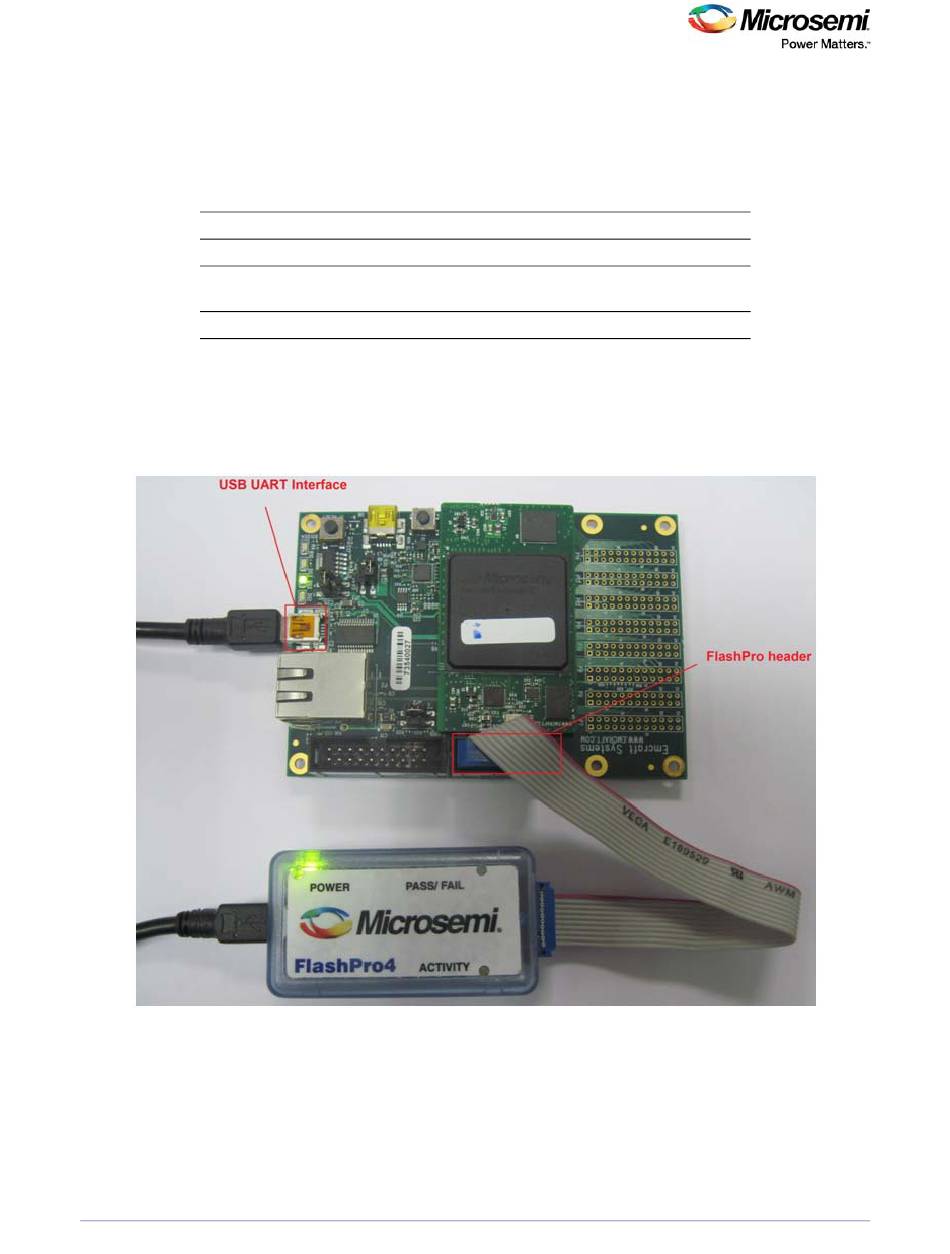

Figure 8 • SmartFusion2 SoC FPGA Starter Kit Setup
4. Ensure that the USB to universal asynchronous receiver-transmitter (UART) bridge drivers are
automatically detected. This can be verified in the Device Manager of the Host PC.
The following figure shows the USB Serial port.
SmartFusion2 Starter Kit Jumper Settings
Comments
1-2 Close, 3-4 Open Enable power on the M2S-FG484 SOM (VCC3).
1-2 Open, 3-4 Close Select appropriate JTAG mode and enable
power to the SmartFusion2 JTAG controller.
1-3 Open, 2-4 Close Use the mini-USB port as the power source.
DG0441 Demo Guide Revision 7.0 8
