Appendix: Board Setup for Running the Demo

3
Appendix: Board Setup for Running the
Demo
The following figure shows the board setup for running the demo on the SmartFusion2 Security
Evaluation Kit board.

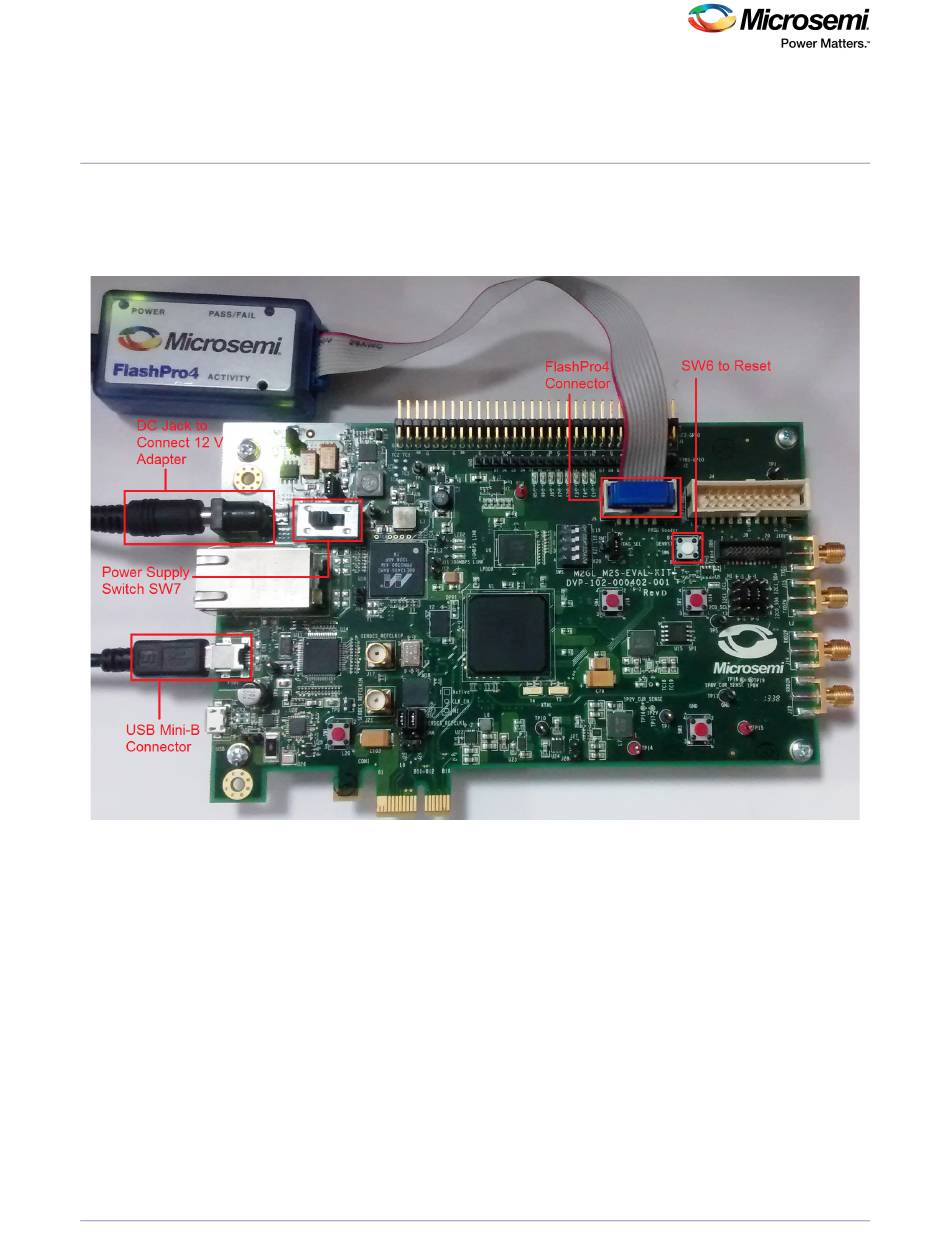

Figure 15 • Board Setup for Running the Demo
DG0454 Demo Guide Revision 8.0
15
