Appendix: Generating .spi Programming File using Libero
3.
On the Export Bitstream window, select the SPI file check box.

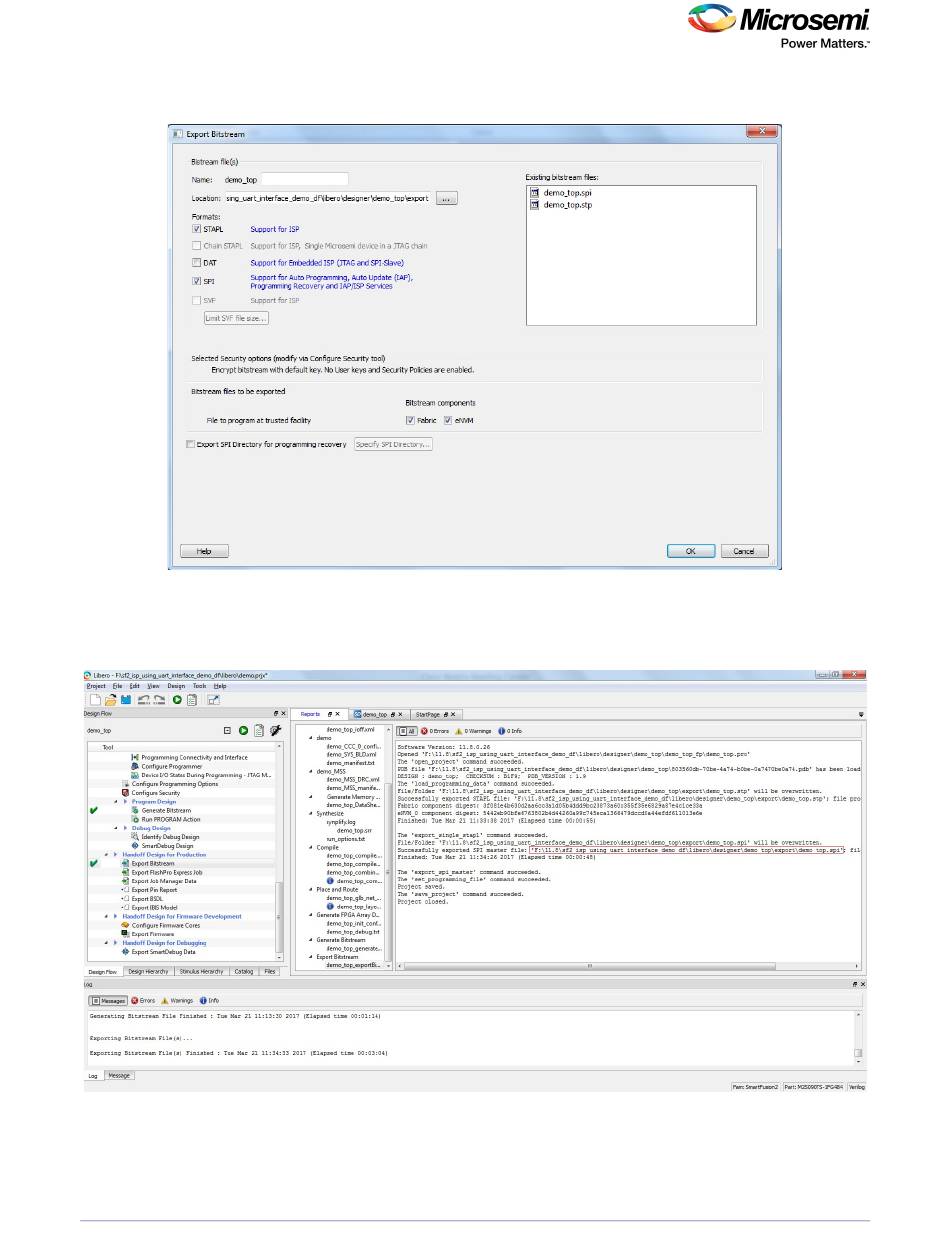

Figure 18 • Export Programming File Options Window
4. Click OK.
5. Double-click Export Bitstream under Handoff Design for Production in the Design Flow tab to generate the
.spi file
(Figure 17,
Figure 19 • .SPI File Location
page 18). The following figure shows the .spi file location in Reports tab
DG0454 Demo Guide Revision 8.0
19
