Appendix: Implementing Workaround to Access Fabric LSRAM after IAP/ISP Program
Operation
5.
Drag-and-drop the Two-Port Large SRAM (TPSRAM) available in the Libero Catalog to the
Dev_Restart_after_ISP_blk SmartDesign canvas. Configure the TPSRAM with the following
settings:
– Write Port
•
Depth: 64
•
Width: 8
– Read Port
•
Depth: 64
•
Width: 8
– Select Check REN check box

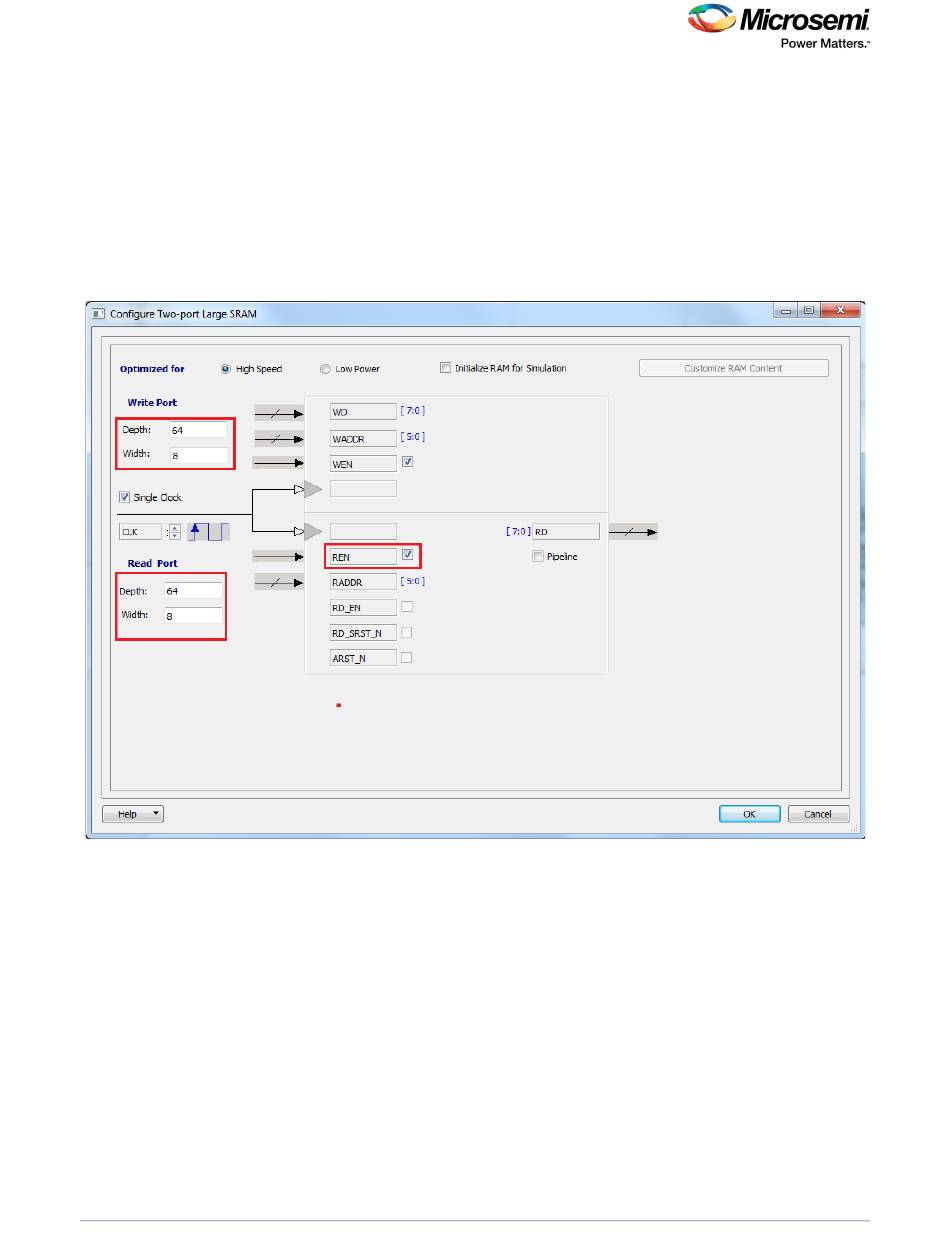

Figure 28 • Two-Port SRAM Configurator Window
DG0454 Demo Guide Revision 8.0
26
