Hand router and template
Recommended method — use the 7" TouchLink Pro and TouchLink routing template, part
number 70-980-01, which is available at www.extron.com. Follow the instructions provided in
the Routing Template User Guide, available at www.extron.com.
NOTE: The metal router guide must be purchased separately. It is reusable and should not

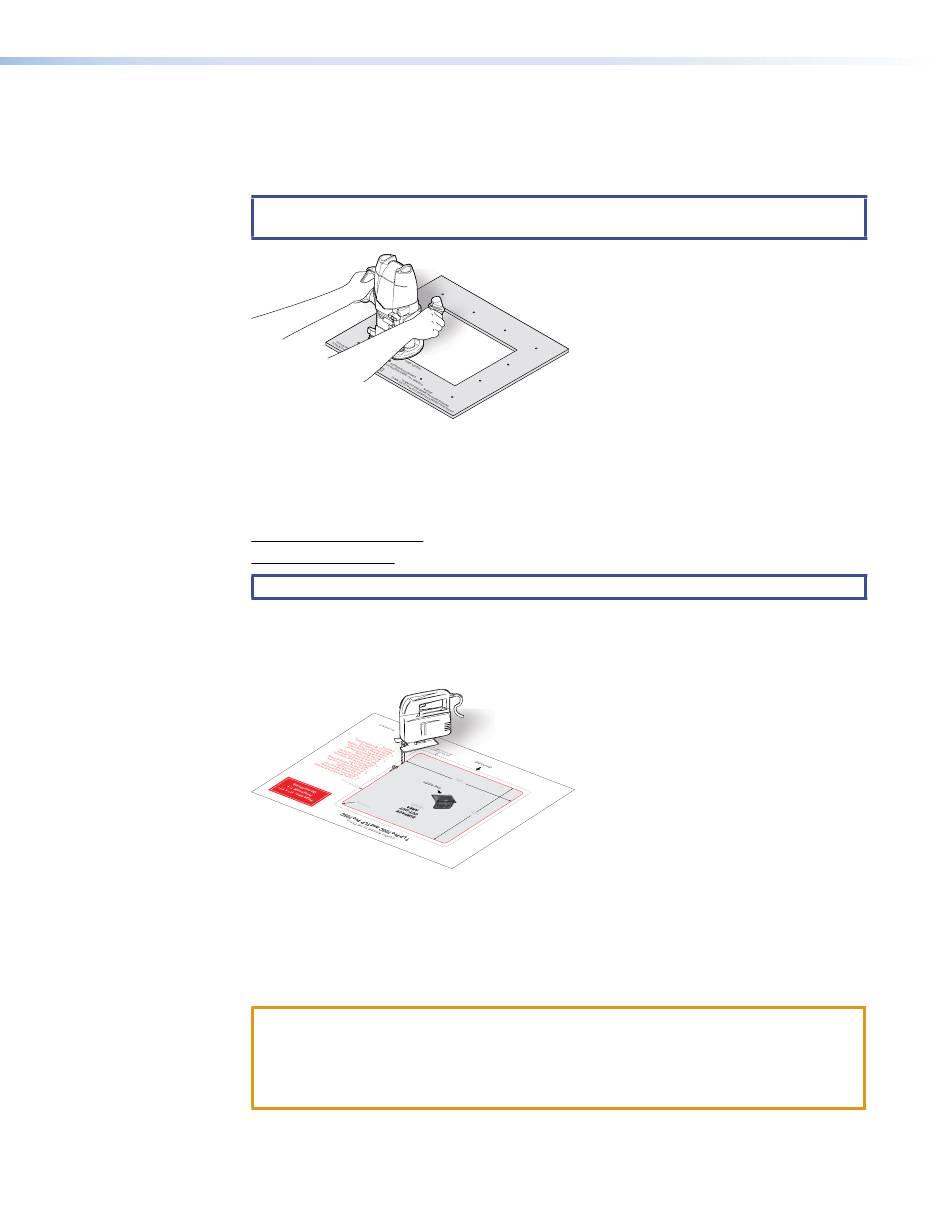

Figure 5.
CNC wood router
Recommended method — if using a CNC router, enter the correct dimensions for the
TLP Pro 725C:
8.90 +0.00/-0.02 inches W x 7.1 +0.00/-0.02 inches D
226 +0.00/-0.5 mm W x 180 +0.00/-0.5 mm D
NOTE: The underlined dimension is the connector or AAP access side for the unit.
Reciprocating saw or jigsaw
Acceptable method — if using a reciprocating saw or jigsaw, make sure to use the paper
cutout template for the TLP Pro 725C. The template is available at www.extron.com.
Figure 6.

Running Cables

Run a LAN/PoE cable, all cables necessary to support the AC connector, the cables stored in the
enclosure, and all planned AAP connectors. They should be run below the table and through the
hole that was cut in the previous step.
ATTENTION:
•
•
Leave enough slack to connect the cables before the enclosure is installed in the table.
be discarded when the installation is complete.
Using a Hand Router
Using a Reciprocating Saw or Jigsaw
Do not power on the touchpanels or control processors until you have read the
Attention
about Power over Ethernet (PoE) power supplies (see page 17).
Ne branchez pas les écrans tactiles ou les processeurs de contrôle avant d'avoir lu la
mise en garde sur les sources d'alimentation via Ethernet (PoE) (voir page 17).
TLP Pro 725C Series Touchpanels • Mounting 10
