Ensuring Adequate Under-table Clearance for Retractors

Retractors are optional accessories for handling cables with the TLP Pro 725C. If you are using
retractors, ensure that there is sufficient room beneath the table to accommodate them.
•
•
•

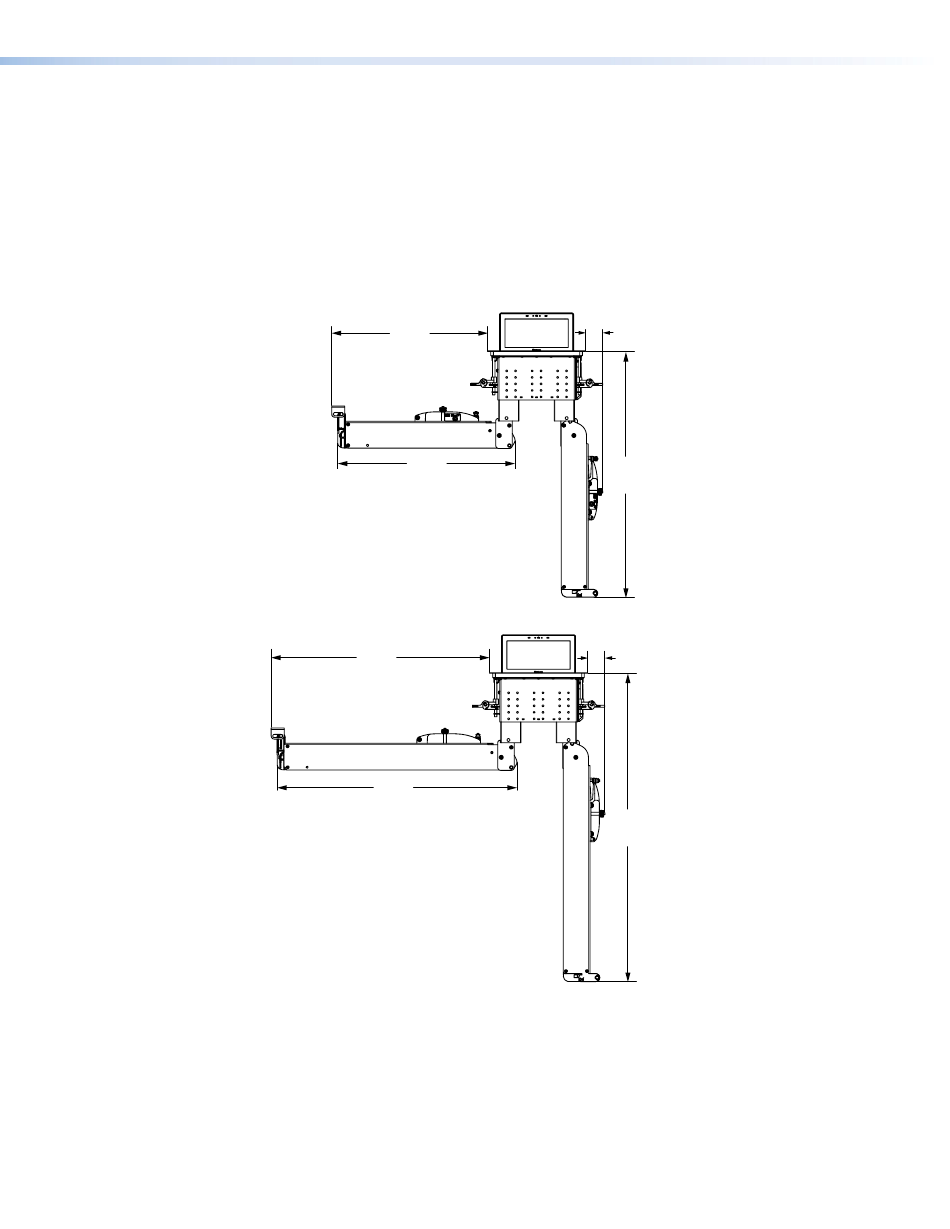

Retractor Mounting Clearance
Standard Models
XL Models
Figure 4.
Horizontal mounting provides maximum legroom and protects the retractors from accidental
damage.
Vertical mounting is used if space or access makes horizontal mounting difficult.
To satisfy ADA compliance requirements, there is also an option to mount the retractors at a
30° angle (see the Retractors User Guide, which is available at www.extron.com).
15.00"
381 mm
17.00"
432 mm
21.00"
533 mm
23.00"
584 mm
Under-table Retractor Clearance Requirements for the TLP Pro 725C
1.60"
41 mm
23.6"
599 mm
1.60"
41 mm
29.6"
752 mm
TLP Pro 725C Series Touchpanels • Mounting 8
