MANO315 Mini ITX Motherboard
1.2

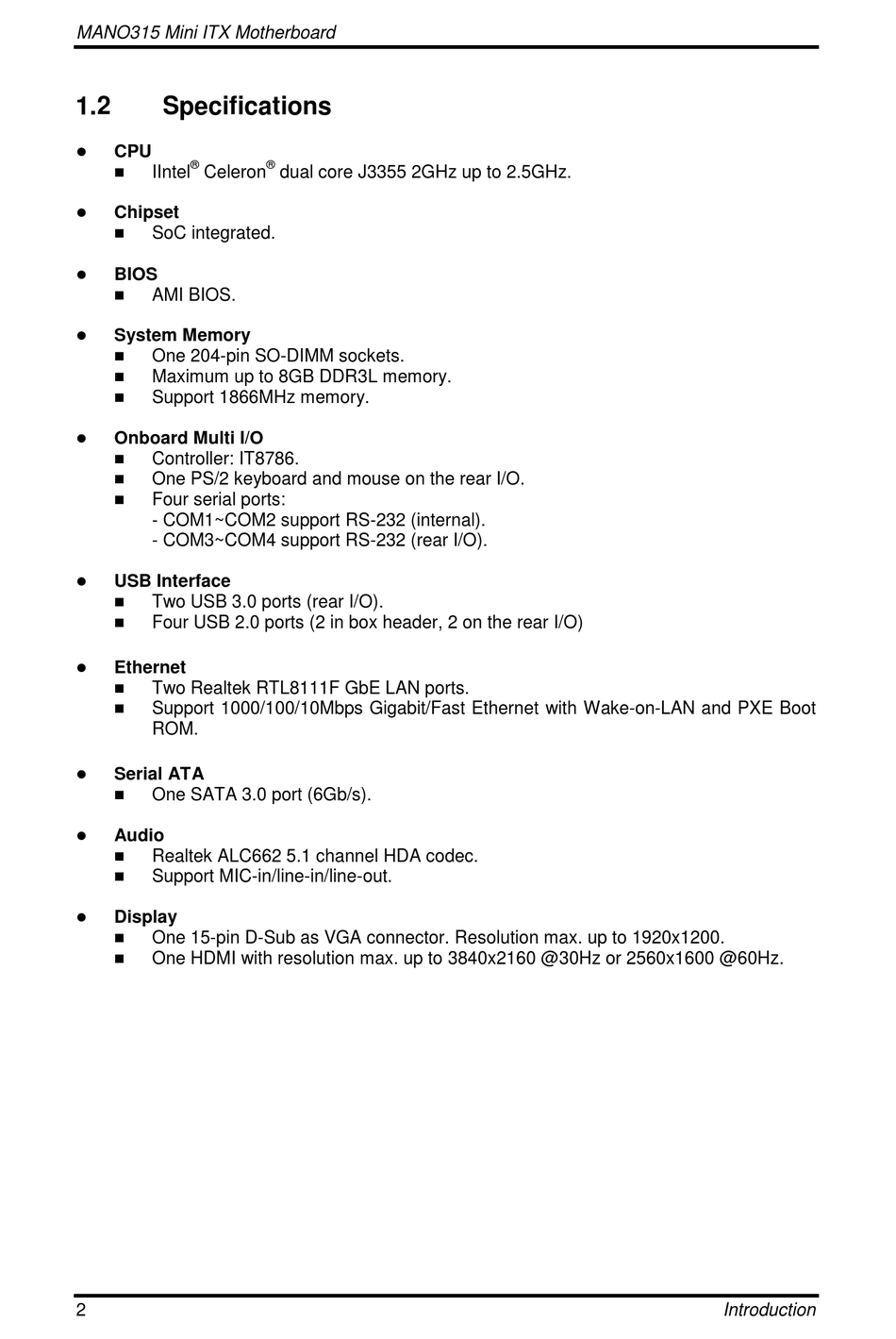

Specifications

 CPU
®
 IIntel Celeron

Chipset
 SoC integrated.
 BIOS
 AMI BIOS.
 System Memory
 One 204-pin SO-DIMM sockets.
 Maximum up to 8GB DDR3L memory.

Support 1866MHz memory.
 Onboard Multi I/O
 Controller: IT8786.
 One PS/2 keyboard and mouse on the rear I/O.
 Four serial ports:
- COM1~COM2 support RS-232 (internal).
- COM3~COM4 support RS-232 (rear I/O).
 USB Interface
 Two USB 3.0 ports (rear I/O).
 Four USB 2.0 ports (2 in box header, 2 on the rear I/O)
 Ethernet
 Two Realtek RTL8111F GbE LAN ports.

Support 1000/100/10Mbps Gigabit/Fast Ethernet with Wake-on-LAN and PXE Boot
ROM.
 Serial ATA
 One SATA 3.0 port (6Gb/s).
 Audio
 Realtek ALC662 5.1 channel HDA codec.
 Support MIC-in/line-in/line-out.
 Display
 One 15-pin D-Sub as VGA connector. Resolution max. up to 1920x1200.
 One HDMI with resolution max. up to 3840x2160 @30Hz or 2560x1600 @60Hz.
2
®
dual core J3355 2GHz up to 2.5GHz.
Introduction
