2.3

Jumper Settings

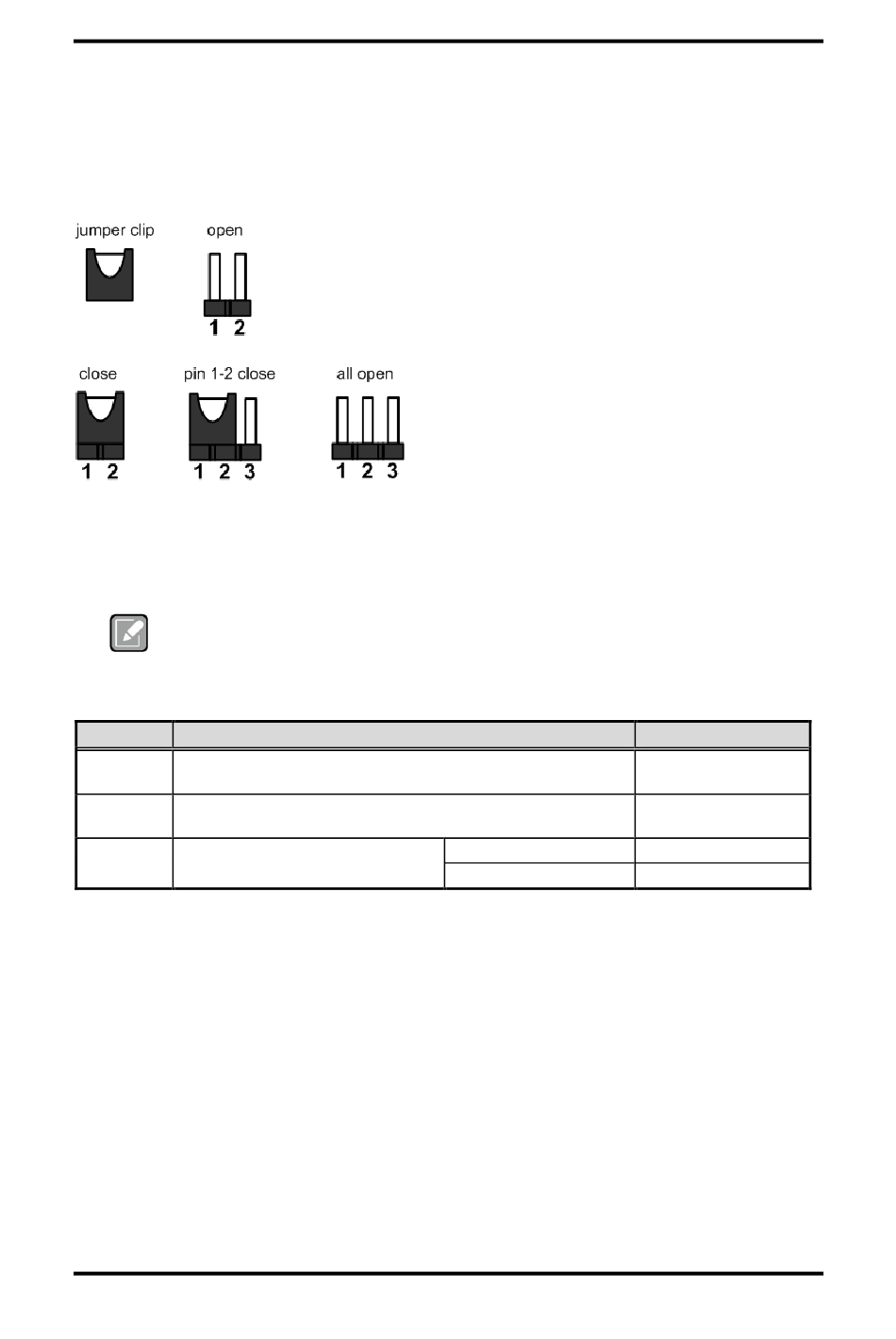

Jumper is a small component consisting of jumper clip and jumper pins. Install jumper clip on 2
jumper pins to close. And remove jumper clip from 2 jumper pins to open. The following
illustration shows how to set up jumper.
Before applying power to MANO315 Series, please make sure all of the jumpers are in factory
default position. Below you can find a summary table of all jumpers and onboard default
settings.
Once the default jumper setting needs to be changed, please do it under power-off
condition.
Note
Jumper Description
Clear CMOS
JP1
Default: Normal
AT/ATX Power Mode Select
JP2
Default: ATX Mode
COM3/COM4 Data/Power Select
JP9
Default: RS-232 Data
Board and Pin Assignments
MANO315 Mini ITX Motherboard
COM3 Pin 9: RI#
COM4 Pin 9: RI#
Setting
1-2 Close
1-2 Close
3-5 Close
4-6 Close
7
