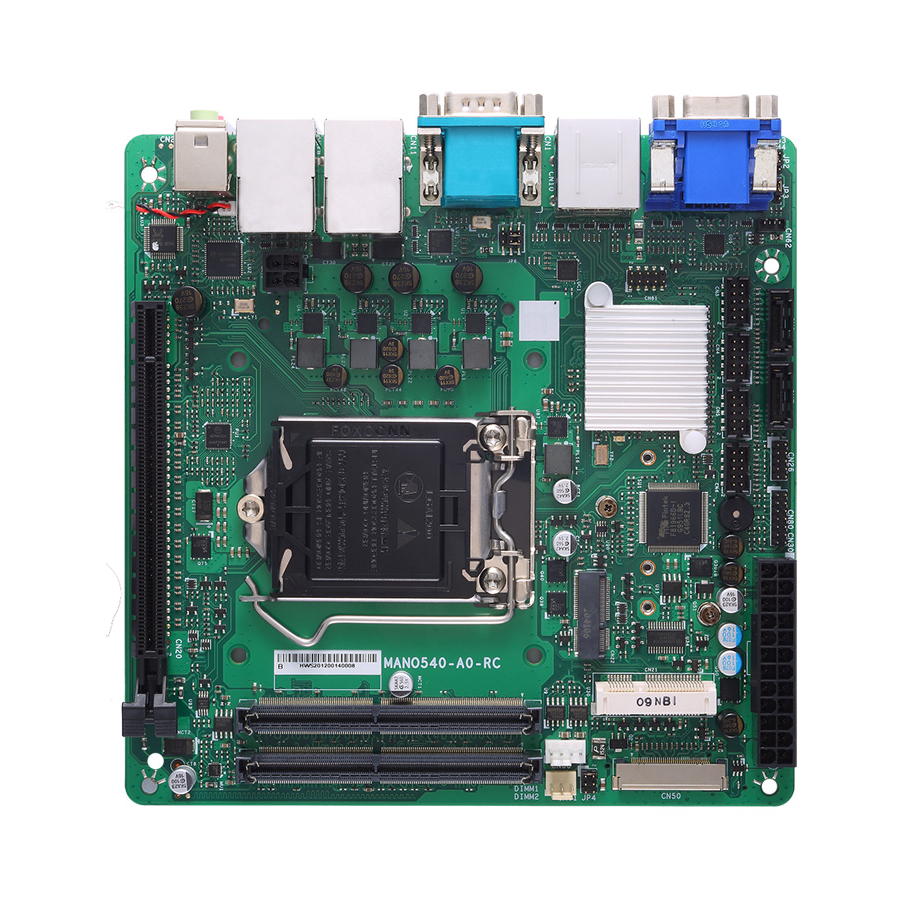

MANO540 Series
TM
®
Intel
Socket 1200 Core
i9/ i7/ i5/ i3
Processors Mini ITX Motherboard
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MANO540 Series and is the answer not in the manual?

Questions and answers

Related Manuals for AXIOMTEK MANO540 Series

Summary of Contents for AXIOMTEK MANO540 Series

  • Page 1 MANO540 Series ® Intel Socket 1200 Core i9/ i7/ i5/ i3 Processors Mini ITX Motherboard User’s Manual...
  • Page 2 Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Axiomtek Co., Ltd.

  • Page 3: Esd Precautions

    It discharges static electricity from your body. ◼ Wear a wrist-grounding strap, available from most electronic component stores, when handling boards and components. Trademarks Acknowledgments Axiomtek is a trademark of Axiomtek Co., Ltd. ® ® Intel and Celeron are trademarks of Intel Corporation.

  • Page 4: Table Of Contents

    Table of Contents Disclaimers ...................... ii ESD Precautions ..................... iii Section 1 Introduction ..........1 Features ....................1 Specifications ..................2 Utilities Supported ................. 3 Block Diagram ..................4 Section 2 Hardware Installation ......5 Install Central Processing Unit (CPU) ........... 5 Install a Heatsink ...................
  • Page 5 3.4.16 USB Header (CN62) ................. 27 3.4.17 Front Panel Header (CN80) ..............28 3.4.18 SPI Header (CN81) ................... 29 3.4.19 M.2 Key B Socket (SCN1) ..............30 3.4.20 SIM Card Slot (SCN2) ................31 Section 4 AMI BIOS Setup Utility ......33 Starting ....................
  • Page 6 This page is intentionally left blank.

  • Page 7: Introduction

    MANO540 Mini ITX Motherboard Section 1 Introduction The MANO540 Mini-ITX motherboard supports the new 14nm 10 Generation Intel ® Core™ i9 / i7/ i5 / i3 and Pentium ® processors in LGA1200 package. Featuring the new Intel ® H410 Express chipset with two DDR4 2933MHz memory support, this motherboard is built to perform best stability and reliability for industrial applications.

  • Page 8: Specifications

    MANO540 Mini ITX Motherboard Specifications ⚫ ® ◼ Intel Comet Lakes for LGA1200 Socket CPU (Max TDP at 65W). ⚫ Chipset ® ◼ Intel H410. ⚫ BIOS ◼ AMI BIOS via SPI interface. ⚫ System Memory ◼ Two 260-pin SO-DIMM sockets. ◼...

  • Page 9: Utilities Supported

    MANO540 Mini ITX Motherboard ⚫ Power Input ◼ One 24-pin ATX power input connector. ◼ One 4-pin ATX v-core power input connector. ⚫ Operating Temperature ◼ 0°C ~ 60°C. ⚫ Storage Temperature ◼ -10°C ~ 70°C. ⚫ Form Factor ◼ Mini ITX (6.7”...

  • Page 10: Block Diagram

    MANO540 Mini ITX Motherboard Block Diagram Introduction...

  • Page 11: Hardware Installation

    MANO540 Mini ITX Motherboard Section 2 Hardware Installation Install Central Processing Unit (CPU) Locate the CPU socket on the motherboard. ⚫ Remove pin cap before installation, and make good preservation for future use. When the CPU is removed, cover the pin cap on the empty socket to ensure pin legs won’t be damaged.
  • Page 12 MANO540 Mini ITX Motherboard Remove the pin cap. Hold processor with your thumb and index fingers, oriented as shown. Align the notches with the socket. Lower the processor straight down without tilting or sliding the processor in the socket. Hold the CPU down firmly, and then lower the lever to locked position to complete the installation.

  • Page 13: Install A Heatsink

    MANO540 Mini ITX Motherboard Install a Heatsink Place the CPU fan assembly on top of the installed CPU and make sure that the four fasteners match the motherboard holes. Orient the assembly and make the fan cable is closest to the CPU fan connector. Press down two fasteners at one time in a diagonal sequence to secure the CPU fan assembly in place.

  • Page 14: Installing Memory Module

    MANO540 Mini ITX Motherboard Installing Memory Module DIMM1/DIMM2: DDR4 Memory Module Slot (260-pin SO-DIMM). If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again. Note Insert memory module into SO-DIMM socket at backside of motherboard. Hold the SO-DIMM with its notch aligned with the memory socket of the board and insert it at a 30 degree angle into the socket.

  • Page 15: Expansion Slots

    MANO540 Mini ITX Motherboard Memory capacity: DIMM Socket Location DDR4 Module Total Memory Size DIMM1 512MB/1GB/2GB/4GB/8GB Max is 32GB DIMM2 512MB/1GB/2GB/4GB/8GB Expansion Slots CN20: PCI-Express Gen3 x16 Slots (x16 mode) ⚫ PCI-Express 3.0 compliant. ⚫ The maximum bandwidth of the PCIe slot is 32GB/s. CN21: Mini PCI-Express Connector ⚫...
  • Page 16 MANO540 Mini ITX Motherboard CN22: M.2 Key E Socket ⚫ Support M.2 socket 2230 type module. ⚫ Support PCIe x1 and USB2.0. SCN1: M.2 Key B Socket ⚫ Support M.2 socket 2242/2280/3042/3052 type module. ⚫ Support PCIe x2, PCIe + SATA3.0, PCIe + USB 3.2 GEN1 interfaces by BOM option. Default is PCIe + USB 3.2 GEN1.

  • Page 17: Board And Pin Assignments

    MANO540 Mini ITX Motherboard Section 3 Board and Pin Assignments Board Layout Top View Board and Pin Assignments...
  • Page 18 MANO540 Mini ITX Motherboard Bottom View Board and Pin Assignments...

  • Page 19: Rear I/O

    MANO540 Mini ITX Motherboard Rear I/O Jumpers/Headers/Connectors AT/ATX Power Mode Select Jumper 4-pin ATX Power Input Connector (CN70) (JP2) PCI-Express x16 Slot (CN20) COM Headers (CN3~CN6) M.2 Key E Socket (CN22) SPI Header (CN81) PCI-Express Mini Card Connector (CN21) COM VDD Select Jumper (JP6) DDR4 SO-DIMM Connectors (DIMM1, SIM Card Slot (SCN2) DIMM2)

  • Page 20: Jumper Settings

    And remove jumper clip from 2 jumper pins to open. The following illustration shows how to set up jumper. Before applying power to MANO540 Series, please make sure all of the jumpers are in factory default position. Below you can find a summary table of all jumpers and onboard default settings.

  • Page 21: At/Atx Power Mode Select (Jp2)

    MANO540 Mini ITX Motherboard Jumper Description Setting AT/ATX Power Mode Select 1-2 Close Default: ATX Mode Clear CMOS 1-2 Close Default: Normal Operation LVDS VDD Select 1-2 Close Default: +3.3V Level COM VDD Select 3-5 Close Default: +5V Level 3.3.1 AT/ATX Power Mode Select (JP2) This 3-pin (pitch=2.0mm) jumper allows you to select AT or ATX power mode.

  • Page 22: Lvds Vdd Select (Jp4)

    MANO540 Mini ITX Motherboard 3.3.3 LVDS VDD Select (JP4) The motherboard supports voltage selection for flat panel displays. Use this 2x3-pin (pitch=2.0mm) jumper to set up VDD power of the LVDS connector. To prevent hardware damage, before connecting please make sure that the input voltage of LVDS panel is correct.

  • Page 23: Connectors

    MANO540 Mini ITX Motherboard Connectors Signals go to other parts of the system through connectors. Loose or improper connection might cause problems, please make sure all connectors are properly and firmly connected. Here is a summary table showing connectors on the hardware. Connector Description COM D-Sub Connector...

  • Page 24: Com D-Sub Connector (Cn1)

    MANO540 Mini ITX Motherboard 3.4.1 COM D-Sub Connector (CN1) The CN1 is a double 9-pin D-Sub connector for COM1 and COM2 serial port interfaces on the rear I/O. Only COM1 supports RS-232/422/485 mode. The pin assignments of RS-232/422/485 are listed in table below. COM1: CN1B for COM2 RS-422...

  • Page 25: Sata 3.0 Connectors (Cn7 And Cn8)

    MANO540 Mini ITX Motherboard 3.4.3 SATA 3.0 Connectors (CN7 and CN8) These connectors support the thin Serial ATA cable for primary internal storage devices. Signal Ground Ground Ground 3.4.4 USB 3.2 GEN1 Stack Port (CN10) The motherboard comes with one stacked Universal Serial Bus (compliant with USB 3.2 GEN1) connector on the rear I/O for installing USB peripherals such as a keyboard, mouse, scanner, etc.

  • Page 26: Lan And Usb 2.0 Connectors (Cn11 And Cn19)

    MANO540 Mini ITX Motherboard 3.4.5 LAN and USB 2.0 Connectors (CN11 and CN19) The motherboard comes with two high performance plug and play Ethernet interfaces (RJ-45) which are fully compliant with the IEEE 802.3 standard. Connection can be established by plugging one end of the Ethernet cable into this RJ-45 connector and the other end to a 1000/100/10 Base-T hub.

  • Page 27: Pci-Express Mini Card Connector (Cn21)

    MANO540 Mini ITX Motherboard 3.4.6 PCI-Express Mini Card Connector (CN21) The CN21 complies with PCI-Express Mini Card Spec. V1.2. Signal Signal WAKE# +3.3VAUX +1.5V CLKREQ# UIM_PWR/NC UIM_DAT/NC REFCLK- UIM_CLK/NC REFCLK+ UIM_REST/NC UIM_VPP/NC PERST# PCIE_RX_DN +3.3VAUX PCIE_RX_DP +1.5V SMB_CLK PCIE_TX_DN SMB_DATA PCIE_TX_DP USB#9_D- USB#9_D+...

  • Page 28: Key E Socket (Cn22)

    MANO540 Mini ITX Motherboard 3.4.7 M.2 Key E Socket (CN22) The motherboard comes with one M.2 Key E socket (PCIe & USB). Signal Signal +3.3V_SBY USB_D+ +3.3V_SBY USB_D- Key E Key E PCIE_TX_P PCIE_TX_N PCIE_RX_P PCIE_RX_N CLK_PCIE_P CLK_PCIE_N SUSCLK(+3.3V Level) PERST#(+3.3V Level) CLKREQ0# PEWAKE0#...

  • Page 29: Audio Jack (Cn23)

    MANO540 Mini ITX Motherboard 3.4.8 Audio Jack (CN23) The motherboard provides HD audio jack on the rear I/O. Install audio driver, and then attach audio devices to CN23. Pin Color Signal Green Line-out Pink MIC-in 3.4.9 Digital I/O Connector (CN26) The CN26 is a 2x5-pin (pitch=2.00mm) connector for digital I/O interface.

  • Page 30: Atx Power Input Connectors (Cn30 And Cn70)

    MANO540 Mini ITX Motherboard 3.4.10 ATX Power Input Connectors (CN30 and CN70) Steady and sufficient power can be supplied to all components on the board by connecting power connector. Please make sure all components and devices are properly installed before connecting the power connector. For better compatibility, we recommend to use a standard ATX 24-pin and 4-pin power supply for these connectors.

  • Page 31: Displayport Connector (Cn32)

    MANO540 Mini ITX Motherboard 3.4.11 DisplayPort Connector (CN32) The motherboard comes with DisplayPort interface on the rear I/O. Signal DP_TX0_P DP_TX0_N DP_TX1_P DP_TX1_N DP_TX2_P DP_TX2_N DP_TX3_P DP_TX3_N DP_AUXP DP_AUXN DP_HPD +3.3V 3.4.12 HDMI Connector (CN33) The HDMI (High-Definition Multimedia Interface) is a compact digital interface which is capable of transmitting high-definition video and high-resolution audio over a single cable.

  • Page 32: Vga Connector (Cn34)

    MANO540 Mini ITX Motherboard 3.4.13 VGA Connector (CN34) The CN34 is a high rise 15-pin D-Sub connector which is commonly used for VGA display. This VGA interface configuration can be configured via software utility. Signal Signal Green Blue DDC DATA Horizontal Sync Vertical Sync DDC CLK...

  • Page 33: Fan Headers (Cn60 And Cn61)

    MANO540 Mini ITX Motherboard 3.4.15 Fan Headers (CN60 and CN61) The motherboard has two fan headers. The fan cable and connector may be different according to the fan manufacturer. Connect the fan cable to the connector while matching the black wire to pin#1. CN60: CPU fan header, 4-pin (pitch=2.54mm) Signal Ground...

  • Page 34: Front Panel Header (Cn80)

    MANO540 Mini ITX Motherboard 3.4.17 Front Panel Header (CN80) The CN80 is a 2x7-pin (pitch=2.54mm) header. It includes Power-on, Reset, HDD LED and Power LED connections, allowing user to connect the PC case’s front panel switch functions. Signal Signal PWRLED+ EXT SPK N.C.

  • Page 35: Spi Header (Cn81)

    MANO540 Mini ITX Motherboard 3.4.18 SPI Header (CN81) The CN81 is a 9-pin (pitch=2.00mm) connector for SPI interface. Signal MISO MOSI Board and Pin Assignments...

  • Page 36: Key B Socket (Scn1)

    MANO540 Mini ITX Motherboard 3.4.19 M.2 Key B Socket (SCN1) The SCN1 is a M.2 Key B socket. Signal Signal +3.3V_SBY +3.3V_SBY Full Card PWR USB_D+ USB_D- Key B Key B CONFIG_0 GPP_D21(+1.8V) GPP_D22(+1.8V) PCIE1_RX_N/USB3_ UIM_RST RX_N PCIE1_RX_P/USB3_ UIM_CLK RX_P UIM_DATA PCIE1_TX_N/USB3_ UIM_PWR...

  • Page 37: Sim Card Slot (Scn2)

    MANO540 Mini ITX Motherboard 3.4.20 SIM Card Slot (SCN2) The SCN2 is for inserting SIM Card which is mainly used in wireless network application. Signal UIM_PWR UIM_Reset UIM_CLK Data Board and Pin Assignments...
  • Page 38 MANO540 Mini ITX Motherboard This page is intentionally left blank. Board and Pin Assignments...

  • Page 39: Ami Bios Setup Utility

    MANO540 Mini ITX Motherboard Section 4 AMI BIOS Setup Utility The AMI UEFI BIOS provides users with a built-in setup program to modify basic system configuration. All configured parameters are stored in a flash chip to save the setup information whenever the power is turned off.
  • Page 40 MANO540 Mini ITX Motherboard Hot Keys Description → Left/Right The Left and Right <Arrow> keys allow you to select a setup screen. The Up and Down <Arrow> keys allow you to select a setup screen or sub  Up/Down screen. The <Enter>...

  • Page 41: Main Menu

    MANO540 Mini ITX Motherboard Main Menu When you first enter the setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. System Time/Date can be set up as described below.

  • Page 42: Advanced Menu

    MANO540 Mini ITX Motherboard Advanced Menu The Advanced menu also allows users to set configuration of the CPU and other system devices. You can select any of the items in the left frame of the screen to go to the sub menus: ►...
  • Page 43 MANO540 Mini ITX Motherboard ⚫ CPU Configuration This screen shows CPU information, and you can change the value of the selected option. Intel (VMX) Virtualization Technology Enable or disable Intel Virtualization Technology. When enabled, a VMM (Virtual Machine Mode) can utilize the additional hardware capabilities. It allows a platform to run multiple operating systems and applications independently, hence enabling a single computer system to work as several virtual systems.
  • Page 44 MANO540 Mini ITX Motherboard ⚫ SATA and RST Configuration During system boot up, BIOS automatically detects the presence of SATA devices. In the SATA Configuration menu, you can see all currently installed SATA device(s). SATA Controller(s) Enable or disable the SATA Controller feature. AMI BIOS Setup Utility...
  • Page 45 MANO540 Mini ITX Motherboard ⚫ Trusted Computing This screen provides function for specifying the TPM settings. TPM Device Selection Select TPM device: PTT: Intel ® built-in TPM. Enables PTT in SkuMgr. dTPM: External extended Infineon’s TPM. Disables PTT in SkuMgr. Security Device Support Enable or disable BIOS support for security device.
  • Page 46 MANO540 Mini ITX Motherboard ⚫ ACPI Settings ACPI Sleep State When the suspend button is pressed, the ACPI (Advanced Configuration and Power Interface) sleep state is S3 (Suspend to RAM). S3 Video Repost On enabling, Video Option ROM will be dispatched during S3 resume. Restore AC Power Loss Decide the state of system when power is re-applied after a power failure.
  • Page 47 MANO540 Mini ITX Motherboard ⚫ F81966 Super IO Configuration You can use this screen to select options for the Super IO Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 48 MANO540 Mini ITX Motherboard ⚫ Serial Port 1 Configuration Serial Port Enable or disable serial port 1. Change Settings Select an optimal settings for Super IO device. Auto IO=3F8h, IRQ=4; IO=3F8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2F8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;...
  • Page 49 MANO540 Mini ITX Motherboard ⚫ Serial Port 2~6 Configuration Serial Port Enable or disable serial port 2~6. Change Settings Select an optimal settings for Super IO device. For serial port 2: Auto IO=2F8h, IRQ=3; IO=3F8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2F8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;...
  • Page 50 MANO540 Mini ITX Motherboard For serial port 5: Auto IO=2E0h, IRQ=7; IO=3E8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2F0h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E0h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;...
  • Page 51 MANO540 Mini ITX Motherboard ⚫ Hardware Monitor This screen monitors hardware health status. This screen displays the temperature of system and CPU, cooling fans speed in RPM and system voltages (VCCIO, CPU SA, +5V and +12V). AMI BIOS Setup Utility...
  • Page 52 MANO540 Mini ITX Motherboard ⚫ Smart Fan Mode Configuration This screen allows you to configure Smart Fan mode. Smart Fan Function Enable or disable Smart Fan. Fan 1 Smart Fan Control Select Smart Fan operating mode. Auto RPM Mode: The fan speed is controlled automatically according to temperature and RPM.
  • Page 53 MANO540 Mini ITX Motherboard ⚫ USB Configuration USB Devices Display all detected USB devices. AMI BIOS Setup Utility...
  • Page 54 MANO540 Mini ITX Motherboard ⚫ Network Stack Configuration Network Stack Enable or disable UEFI Network Stack. IPv4/IPv6 PXE Support Enable or disable IPv4 PXE boot support. If disabled, IPv4/IPv6 PXE boot support will not be available. IPv4/IPv6 HTTP Support Enable or disable IPv4/IPv6 HTTP boot support. If disabled, IPv4/IPv6 HTTP boot support will not be available.

  • Page 55: Chipset Menu

    MANO540 Mini ITX Motherboard Chipset Menu The Chipset menu allows users to change the advanced chipset settings. You can select any of the items in the left frame of the screen to go to the sub menus: ► PCH-IO Configuration ►...
  • Page 56 MANO540 Mini ITX Motherboard ⚫ PCH-IO Configuration This screen allows you to set PCH parameters. HD Audio Control detection of the HD Audio device. Disabled: HDA will be unconditionally disabled. Enabled: HDA will be unconditionally enabled. Auto: HDA will be enabled if present, disabled otherwise. ErP Control When ErP is enabled, system meets ErP requirement.
  • Page 57 MANO540 Mini ITX Motherboard Onboard Device ⚫ Onboard Gigabit LAN 1/2 Enable or disable onboard Gigabit LAN 1/2. Onboard LAN1/LAN2 Option ROM Enable or disable onboard LAN1/LAN2 Option ROM. AMI BIOS Setup Utility...

  • Page 58: Boot Menu

    MANO540 Mini ITX Motherboard Boot Menu The Boot menu allows users to change boot options of the system. ⚫ Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting. ⚫ Bootup NumLock State Use this item to select the power-on state 43for the keyboard NumLock. ⚫...

  • Page 59: Security Menu

    MANO540 Mini ITX Motherboard Security Menu The Security menu allows users to change the security settings for the system. ⚫ Administrator Password Set administrator password. ⚫ User Password Set user password. AMI BIOS Setup Utility...

  • Page 60: Save & Exit Menu

    MANO540 Mini ITX Motherboard Save & Exit Menu The Save & Exit menu allows users to load your system configuration with optimal or fail-safe default values. ⚫ Discard Changes and Exit Exit system setup without saving any changes. ⚫ Save Changes and Reset Reset the system after saving the changes.

  • Page 61: Appendix A Watchdog Timer

    MANO540 Mini ITX Motherboard Appendix A Watchdog Timer About Watchdog Timer Software stability is major issue in most application. Some embedded systems are not watched by human for 24 hours. It is usually too slow to wait for someone to reboot when computer hangs.
  • Page 62 MANO540 Mini ITX Motherboard (hinstLibDLL) lpFnDll_Get_IO = (LPFNDLLGETIOSPACE)GetProcAddress(GetModuleHandle("diodll.dll"), "GetIoSpaceByte"); lpFnDll_Set_IO = (LPFNDLLSETIOSPACE)GetProcAddress(GetModuleHandle("diodll.dll"), "SetIoSpaceByte"); printf("Input Watch Dog Timer type, 1:Second ; 2:Minute :"); scanf("%d",&unit); printf("\nInput Timer to countdown:"); scanf("%d", &WDTtimer); printf("Start to countdown..."); //==Enter MB Pnp Mode== lpFnDll_Set_IO(0x2e, 0x87); lpFnDll_Set_IO(0x2e, 0x87); lpFnDll_Set_IO(0x2e, 0x07);...

  • Page 63: Appendix B Digital I/O

    MANO540 Mini ITX Motherboard Appendix B Digital I/O B.1 About Digital I/O The onboard digital I/O has 8 bits. Each bit can be set to function as input or output by software programming. In default, all pins are pulled high with +5V level (according to main power). The BIOS default settings are 4 inputs and 4 outputs.
  • Page 64 MANO540 Mini ITX Motherboard lpFnDll_Get_IO = (LPFNDLLGETIOSPACE)GetProcAddress(GetModuleHandle("diodll.dll"), "GetIoSpaceByte"); lpFnDll_Set_IO = (LPFNDLLSETIOSPACE)GetProcAddress(GetModuleHandle("diodll.dll"), "SetIoSpaceByte"); //==Enter MB Pnp Mode== lpFnDll_Set_IO(0x2e, 0x87); lpFnDll_Set_IO(0x2e, 0x87); //LDN 06 lpFnDll_Set_IO(0x2e, 0x07); lpFnDll_Set_IO(0x2f, 0x06); //set LDN06 88h =OF //88h <0> = 1 GPIO80 DO0 output mode set 1 or input mode set 0 lpFnDll_Set_IO(0x2e, 0x88);...
  • Page 65 MANO540 Mini ITX Motherboard DI0status = GPIO_HIGH; else DI0status = GPIO_LOW; (0x20 & u8AHData) //GPIO85 DI1 status DI1status = GPIO_HIGH; else DI1status = GPIO_LOW; (0x40 & u8AHData) //GPIO86 DI2 status DI2status = GPIO_HIGH; else DI2status = GPIO_LOW; (0x80 & u8AHData) //GPIO87 DI3 status DI3status = GPIO_HIGH;...
  • Page 66 MANO540 Mini ITX Motherboard This page is intentionally left blank. Digital I/O...

  • Page 67: Appendix Cbios Update

    MANO540 Mini ITX Motherboard Appendix C BIOS Update With the BIOS-Flasher utility you can easily update motherboard BIOS without having to enter operating system. In this appendix you may learn how to do it in just a few steps. Please read and follow the instructions below carefully.
  • Page 68 MANO540 Mini ITX Motherboard After booting up, press <F12> to enter the BIOS update screen. Then press <F12> again to enter next screen. Now you can see ini figure below, the "fs0" is the detected USB device. If multiple USB flash drives or hard drives are connected, there will be several optional devices such as "fs1", "fs2"...
  • Page 69 MANO540 Mini ITX Motherboard Choose the new BIOS file, then press “Y”. The update will take a few minutes, do not turn off the power or interrupt the update process. Please wait until the utility completes the entire BIOS update process. The following screen will appear once the update is completed.
