AXIOMTEK MANO520 Series User Manual

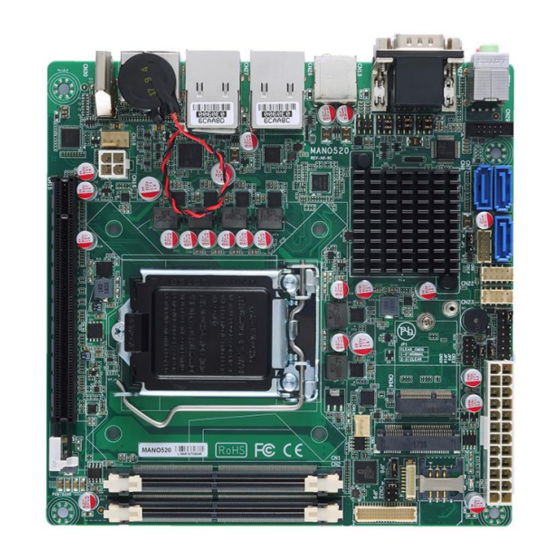

Intel socket 1151 core i7/ i5/ i3 processors mini itx motherboard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MANO520 Series
®
TM
Intel
Socket 1151 Core
i7/ i5/ i3
Processors Mini ITX Motherboard
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MANO520 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AXIOMTEK MANO520 Series

Summary of Contents for AXIOMTEK MANO520 Series

  • Page 1 MANO520 Series ® Intel Socket 1151 Core i7/ i5/ i3 Processors Mini ITX Motherboard User’s Manual...
  • Page 2 Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Axiomtek Co., Ltd.

  • Page 3: Esd Precautions

    It discharges static electricity from your body.  Wear a wrist-grounding strap, available from most electronic component stores, when handling boards and components. Trademarks Acknowledgments Axiomtek is a trademark of Axiomtek Co., Ltd. ® ® Intel and Celeron are trademarks of Intel Corporation.

  • Page 4: Table Of Contents

    Table of Contents Disclaimers ...................... ii ESD Precautions ..................... iii Chapter 1 Introduction ..........1 Features ....................1 Specifications ..................2 Utilities Supported ................. 3 Block Diagram ..................4 Chapter 2 Board and Pin Assignments ....5 Board Layout ..................5 Rear I/O ....................
  • Page 5 2.4.19 M.2 Key E Connector (CN34) ..............23 Chapter 3 Hardware Description ......25 Microprocessors .................. 25 BIOS....................25 System Memory .................. 25 Chapter 4 AMI BIOS Setup Utility ......27 Starting ....................27 Navigation Keys .................. 27 Main Menu ..................29 Advanced Menu ..................
  • Page 6 This page is intentionally left blank.

  • Page 7: Chapter 1 Introduction

    MANO520 Mini ITX Motherboard Chapter 1 Introduction ® Core™ i7/ The MANO520 Mini-ITX motherboard supports the new 14nm 8 Generation Intel ® ® ® i5/ i3, Pentium and Celeron processors in LGA1151 package. Featuring the new Intel H310 Express chipset with two DDR4 2666MHz memory support, this motherboard is built to perform best stability and reliability for industrial applications.

  • Page 8: Specifications

    MANO520 Mini ITX Motherboard Specifications  ® ® ® Core™ i7/ i5/ i3, Pentium  LGA1151 Socket for 8 Generation Intel and Celeron processors.  Chipset ®  Intel H310/Q370 (optional).  BIOS  AMI BIOS via SPI interface.  System Memory ...

  • Page 9: Utilities Supported

    MANO520 Mini ITX Motherboard  Power Input  One ATX power input connector.  One 12V ATX power input connector for CPU power.  Operating Temperature  0°C ~ 60°C.  Storage Temperature  -10°C ~ 65°C.  Form Factor ...

  • Page 10: Block Diagram

    MANO520 Mini ITX Motherboard Block Diagram Introduction...

  • Page 11: Board And Pin Assignments

    MANO520 Mini ITX Motherboard Chapter 2 Board and Pin Assignments Board Layout Board and Pin Assignments...

  • Page 12: Rear I/O

    MANO520 Mini ITX Motherboard Rear I/O Jumpers/Headers/Connectors CPU Fan Connector (CN18) Front Audio Connector (CN29) 4-pin ATX Power Input Connector (CN16) COM1 Data/Power Select Jumper (JP5) COM1 RS-232/422/485 Mode Select PCI-Express x16 Slot (CN15) Jumpers (JP4, JP6, JP7) mSATA Connector (CN6) Clear CMOS Jumper (JP1) DDR4 SO-DIMM Connectors (CN1, CN2) Case Open Select Jumper (JP10)

  • Page 13: Jumper Settings

    And remove jumper clip from 2 jumper pins to open. The following illustration shows how to set up jumper. Before applying power to MANO520 Series, please make sure all of the jumpers are in factory default position. Below you can find a summary table of all jumpers and onboard default settings.

  • Page 14: Clear Cmos (Jp1)

    MANO520 Mini ITX Motherboard Jumper Description Setting Clear CMOS 1-2 Close Default: Normal Operation AT/ATX Power Mode Select 1-2 Close Default: ATX Mode 1-2 Close COM1 RS-232/422/485 Mode Select 3-5, 4-6 Close Default: RS-232 3-5, 4-6 Close CN21 Pin 1: DCD# 3-5 Close COM1 Data/Power Select Default: RS-232 Data...

  • Page 15: Com1 Rs-232/422/485 Mode Select (Jp4, Jp6, Jp7)

    MANO520 Mini ITX Motherboard 2.3.3 COM1 RS-232/422/485 Mode Select (JP4, JP6, JP7) These are 3x2-pin (pitch=2.0mm) jumpers for setting COM1 port to operate in RS-232, RS-422 or RS-485 communication mode. Function Setting JP4 1-2 close RS-232 mode JP6 3-5, 4-6 close (Default) JP7 3-5, 4-6 close JP4 3-4 close...

  • Page 16: Case Open Select (Jp10)

    MANO520 Mini ITX Motherboard 2.3.7 Case Open Select (JP10) The motherboard has one 2-pin (pitch=2.54mm) jumper for chassis intrusion detection feature. Function Setting Close (Default) 1-2 close Active case open 1-2 open Board and Pin Assignments...

  • Page 17: Connectors

    MANO520 Mini ITX Motherboard Connectors Signals go to other parts of the system through connectors. Loose or improper connection might cause problems, please make sure all connectors are properly and firmly connected. Here is a summary table showing connectors on the hardware. Connector Description DIMM1: DDR4 SO-DIMM Connector...

  • Page 18: Displayport Combo Connector (Cn3)

    MANO520 Mini ITX Motherboard 2.4.1 DisplayPort Combo Connector (CN3) The motherboard comes with DisplayPort Combo interface on the rear I/O. Signal DP_TX0_P DP_TX0_N DP_TX1_P DP_TX1_N DP_TX2_P DP_TX2_N DP_TX3_P DP_TX3_N DP_AUXP DP_AUXN DP_HPD +3.3V 2.4.2 SIM Card Socket (CN5) The CN5 is for inserting SIM Card which is mainly used in 3G/4G wireless network application.

  • Page 19: Msata Connector (Cn6)

    MANO520 Mini ITX Motherboard 2.4.3 mSATA Connector (CN6) Signal Signal +3.3VAUX +1.5V UIM_PWR UIM_DAT UIM_CLK UIM_REST UIM_VPP PERST# SATA0_RX_DP +3.3VAUX SATA0_RX_DN +1.5V SMB_CLK SATA0_TX_DN SMB_DATA SATA0_TX_DP USB#6_D- USB#6_D+ +3.3VAUX +3.3VAUX +1.5V +3.3VAUX 2.4.4 SATA 3.0 Connectors (CN7~CN9) These Serial Advanced Technology Attachment (Serial ATA or SATA) connectors are for SATA 3.0 interfaces allowing up to 6.0Gb/s data transfer rate.

  • Page 20: Front Panel Header (Cn12)

    MANO520 Mini ITX Motherboard 2.4.5 Front Panel Header (CN12) The CN12 is a 7x2-pin (pitch=2.54mm) header for front panel interface. Signal Power LED+ SPK- BUZZER- Power LED- SPK+ PWR- PWR+ RESET- RESET+ HD LED- HD LED+ Power LED Pin 1 connects anode(+) of LED and pin 5 connects cathode(-) of LED. The power LED lights up when the system is powered on.

  • Page 21: Usb 2.0 Port (Cn13)

    MANO520 Mini ITX Motherboard 2.4.6 USB 2.0 Port (CN13) The motherboard comes with one double-deck Universal Serial Bus (compliant with USB 2.0 (480Mbps)) connector on the rear I/O for installing USB peripherals such as keyboard, mouse, scanner, etc. Signal Signal USB VCC (+5V USB VCC (+5V 5 6 7 8...

  • Page 22: Atx Power Input Connectors (Cn16 And Cn17)

    MANO520 Mini ITX Motherboard 2.4.8 ATX Power Input Connectors (CN16 and CN17) Steady and sufficient power can be supplied to all components on the board by connecting power connector. Please make sure all components and devices are properly installed before connecting the power connector. External power supply plug fits into the connector in only one orientation.

  • Page 23: Fan Connectors (Cn18 And Cn19)

    MANO520 Mini ITX Motherboard 2.4.9 Fan Connectors (CN18 and CN19) The motherboard has two fan connectors. You can find fan speed option within BIOS Setup Utility if fan is installed. For further information, see BIOS Setup Utility: Advanced\Hardware Monitor\PC Health Status in section 4.4. CN18: 4-pin (pitch=2.54mm) Signal +12V...

  • Page 24: Com D-Sub Connector (Cn21)

    MANO520 Mini ITX Motherboard 2.4.11 COM D-Sub Connector (CN21) The CN21 is a double-deck D-Sub connector for COM1 and COM2 serial port interfaces where only COM1 is selectable for RS-232/422/485 mode by jumper settings (see section 2.3.3). The pin assignments of RS-232/422/485 are listed in table below. COM1: COM1 RS-232...

  • Page 25: Lan And Usb 3.0 Connectors (Cn26 And Cn27)

    MANO520 Mini ITX Motherboard 2.4.13 LAN and USB 3.0 Connectors (CN26 and CN27) The motherboard comes with two high performance plug and play Ethernet interfaces (RJ-45) which are fully compliant with the IEEE 802.3 standard. Connection can be established by plugging one end of the Ethernet cable into this RJ-45 connector and the other end to a 1000/100/10 Base-T hub.

  • Page 26: Front Audio Connector (Cn29)

    MANO520 Mini ITX Motherboard 2.4.15 Front Audio Connector (CN29) This is a 5x2-pin (pitch=2.00mm) connector for convenient connection and control of audio devices. Signal Signal MIC_IN LINE_IN_L LINE_IN_R AUD_OUT_L AUD_OUT_R 2.4.16 HDMI Connector (CN30) The HDMI (High-Definition Multimedia Interface) is a compact digital interface which is capable of transmitting high-definition video and high-resolution audio over a single cable.

  • Page 27: Lvds Signal Header (Cn31)

    MANO520 Mini ITX Motherboard 2.4.17 LVDS Signal Header (CN31) This is a 2x20-pin (pitch=1.0mm) connector which is compliant with JST SM40B-SRDS-G-TF for LVDS LCD interface. It is strongly recommended to connect it with matching connector, SHDR-40VS-B. Signal Signal [**] GND(Detect) LVDS_B_DATA3- LVDS_B_DATA0- LVDS_B_DATA3+...

  • Page 28: Lvds Backlight Control Header (Cn32)

    MANO520 Mini ITX Motherboard 2.4.18 LVDS Backlight Control Header (CN32) This is an 8-pin (pitch=1.25mm) connector which is compliant with Hirose DF13-8P-1.25V for inverter. We strongly recommend you to use the matching connector, DF13-8S-1.25C, to avoid malfunction. Signal +12V +12V LVDS_BKL_EN LVDS_BKL_CTL : This signal is selectable by jumper JP8, see section 2.3.5.

  • Page 29: Key E Connector (Cn34)

    MANO520 Mini ITX Motherboard 2.4.19 M.2 Key E Connector (CN34) The motherboard comes with one M.2 Key E connector (Wi-Fi & Bluetooth). Pin Signal Signal Signal +3.3V BUF_PLT_RST USB#14_D+ NGFF_CLKREQ3 +3.3V BT_KILL1 USB#14_D- PCH_WAKE WLAN_KILL1 CNV_RGI_DT CNV_WR_1_DN CNV_RGI_RSP CNV_WT_1_DN PCM_CRF_RST PCIE12_TX_DP CNV_WR_1_DP CNV_BRI_DT...
  • Page 30 MANO520 Mini ITX Motherboard This page is intentionally left blank. Board and Pin Assignments...

  • Page 31: Chapter 3 Hardware Description

    CPU from damages. BIOS The MANO520 Series uses AMI Plug and Play BIOS with a single SPI Flash. System Memory The MANO520 supports two 260-pin DDR4 SO-DIMM sockets for maximum memory capacity up to 32GB DDR4 SDRAMs.
  • Page 32 MANO520 Mini ITX Motherboard This page is intentionally left blank. Hardware Description...

  • Page 33: Ami Bios Setup Utility

    MANO520 Mini ITX Motherboard Chapter 4 AMI BIOS Setup Utility The AMI UEFI BIOS provides users with a built-in setup program to modify basic system configuration. All configured parameters are stored in a flash chip to save the setup information whenever the power is turned off.
  • Page 34 MANO520 Mini ITX Motherboard Hot Keys Description  Left/Right The Left and Right <Arrow> keys allow you to select a setup screen. The Up and Down <Arrow> keys allow you to select a setup screen or sub  Up/Down screen. The <Enter>...

  • Page 35: Main Menu

    MANO520 Mini ITX Motherboard Main Menu When you first enter the setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. System Time/Date can be set up as described below.

  • Page 36: Advanced Menu

    MANO520 Mini ITX Motherboard Advanced Menu The Advanced menu also allows users to set configuration of the CPU and other system devices. You can select any of the items in the left frame of the screen to go to the sub menus: ►...
  • Page 37 MANO520 Mini ITX Motherboard  IT8786 Super IO Configuration You can use this screen to select options for the Super IO Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 38 MANO520 Mini ITX Motherboard  Serial Port 1~4 Configuration Serial Port Enable or disable serial port 1~4. The optimal settings for base I/O address and for interrupt request address are: Serial port 1: 3F8h, IRQ4 Serial port 2: 2F8h, IRQ3 Serial port 3: 3E8h, IRQ7 Serial port 4: 2E8h, IRQ6 AMI BIOS Setup Utility...
  • Page 39 MANO520 Mini ITX Motherboard  Hardware Monitor This screen monitors hardware health status. This screen displays the temperature of system and CPU, cooling fans speed in RPM and system voltages (VCC_CPU, VCC_DDR, +12V, +5V and +3.3V standby). AMI BIOS Setup Utility...
  • Page 40 MANO520 Mini ITX Motherboard  Smart Fan Function This screen allows you to select CPU fan and system fan mode. CPU FAN\System FAN This item allows you to select the fan speed option(s) of CPU fan and system fan (see section 2.4.9) which can be set to Full on, Manual and Automatic Mode.
  • Page 41 MANO520 Mini ITX Motherboard Automatic Mode: Follow super I/O IT8786 integrated automatic mode described below to adjust the fan speed. AMI BIOS Setup Utility...
  • Page 42 MANO520 Mini ITX Motherboard  Trusted Computing This screen provides function for specifying the TPM settings. Security Device Support Enable or disable BIOS support for security device, see image below. OS will not show security device. TCG EFI protocol and INT1A interface will not be available. AMI BIOS Setup Utility...
  • Page 43 MANO520 Mini ITX Motherboard TPM Device Selection Select TPM device: ® PTT: Intel built-in TPM. dTPM: External extended Infineon’s TPM (optional). Pending operation Schedule an operation for the security device, see image below. None TPM Clear: Clear all data secured by TPM. AMI BIOS Setup Utility...
  • Page 44 MANO520 Mini ITX Motherboard  ACPI Settings ACPI Sleep State When the suspend button is pressed, the ACPI (Advanced Configuration and Power Interface) sleep state is S3 (Suspend to RAM). AMI BIOS Setup Utility...
  • Page 45 MANO520 Mini ITX Motherboard  CPU Configuration This screen shows CPU information, and you can change the value of the selected option. Intel (VMX) Virtualization Technology Enable or disable Intel Virtualization Technology. When enabled, a VMM (Virtual Machine Mode) can utilize the additional hardware capabilities. It allows a platform to run multiple operating systems and applications independently, hence enabling a single computer system to work as several virtual systems.
  • Page 46 MANO520 Mini ITX Motherboard Intel(R) SpeedStep(tm) ® Enable or disable Intel SpeedStep. It allows more than two frequency ranges to be supported. Turbo Mode ® Enable or disable Intel turbo boost mode allowing processor cores to run faster but not exceed CPU defined frequency limits.
  • Page 47 MANO520 Mini ITX Motherboard  SATA and RST Configuration During system boot up, BIOS automatically detects the presence of SATA devices. In the SATA Configuration menu, you can see the currently installed hardware in the SATA ports. SATA Controller(s) Enable or disable the SATA Controller feature. The default is Enabled. SATA Mode Selection Determine how SATA controller(s) operate.
  • Page 48 MANO520 Mini ITX Motherboard  PCH-FW Configuration This screen displays ME Firmware information.  USB Configuration USB Devices Display all detected USB devices. AMI BIOS Setup Utility...

  • Page 49: Chipset Menu

    MANO520 Mini ITX Motherboard Chipset Menu The Chipset menu allows users to change the advanced chipset settings. You can select any of the items in the left frame of the screen to go to the sub menus: ► System Agent (SA) Configuration ►...
  • Page 50 MANO520 Mini ITX Motherboard  System Agent (SA) Configuration This screen allows users to configure System Agent (SA) parameters. For items marked with “”, please press <Enter> for more options. Graphics Configuration Open sub menu for parameters related to graphics configuration. Memory Configuration Open sub menu for information related to system memory.
  • Page 51 MANO520 Mini ITX Motherboard  Graphics Configuration Primary IGFX Boot Display Select the video device which will be activated during POST (Power-On Self Test). The default is Auto. Secondary IGFX Boot Display After selecting other than “AUTO” on “Primary IGFX Boot Display”, the Secondary IGFX Boot Display will show up and the options are Disabled, HDMI and VGA.
  • Page 52 MANO520 Mini ITX Motherboard LVDS Panel Type Select the appropriate LVDS panel resolution; see the selection options in image above.  Memory Configuration This screen shows the system memory information. AMI BIOS Setup Utility...
  • Page 53 MANO520 Mini ITX Motherboard  PCH-IO Configuration This screen allows you to set PCH parameters. PCH LAN Controller Enable or disable onboard PCH LAN controller. Wake on LAN After enabling PCH LAN Controller, enabling or disabling integrated LAN to wake the system.

  • Page 54: Security Menu

    MANO520 Mini ITX Motherboard Security Menu The Security menu allows users to change the security settings for the system.  Setup Administrator Password Set setup administrator password.  User Password Set user password. AMI BIOS Setup Utility...

  • Page 55: Boot Menu

    MANO520 Mini ITX Motherboard Boot Menu The Boot menu allows users to change boot options of the system.  Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting.  Bootup NumLock State Use this item to select the power-on state for the keyboard NumLock. ...
  • Page 56 MANO520 Mini ITX Motherboard  Launch UEFI PXE OpROM policy Control the execution of UEFI PXE OpROM. When enabled, you may select LAN1 or LAN2 as PXE LAN port.  Boot Option Priorities These are settings for boot priority. Specify the boot device priority sequence from the available devices.

  • Page 57: Save & Exit Menu

    MANO520 Mini ITX Motherboard Save & Exit Menu The Save & Exit menu allows users to load your system configuration with optimal or fail-safe default values.  Save Changes and Exit When you have completed the system configuration changes, select this option to leave Setup and return to Main Menu.
  • Page 58 MANO520 Mini ITX Motherboard  Discard Changes Select this option to quit Setup without making any permanent changes to the system configuration. Select Discard Changes from the Save & Exit menu and press <Enter>. Select Yes to discard changes.  Restore Defaults It automatically sets all Setup options to a complete set of default settings when you select this option.

  • Page 59: Appendix A Watchdog Timer

    MANO520 Mini ITX Motherboard Appendix A Watchdog Timer About Watchdog Timer Software stability is major issue in most application. Some embedded systems are not watched by human for 24 hours. It is usually too slow to wait for someone to reboot when computer hangs.
