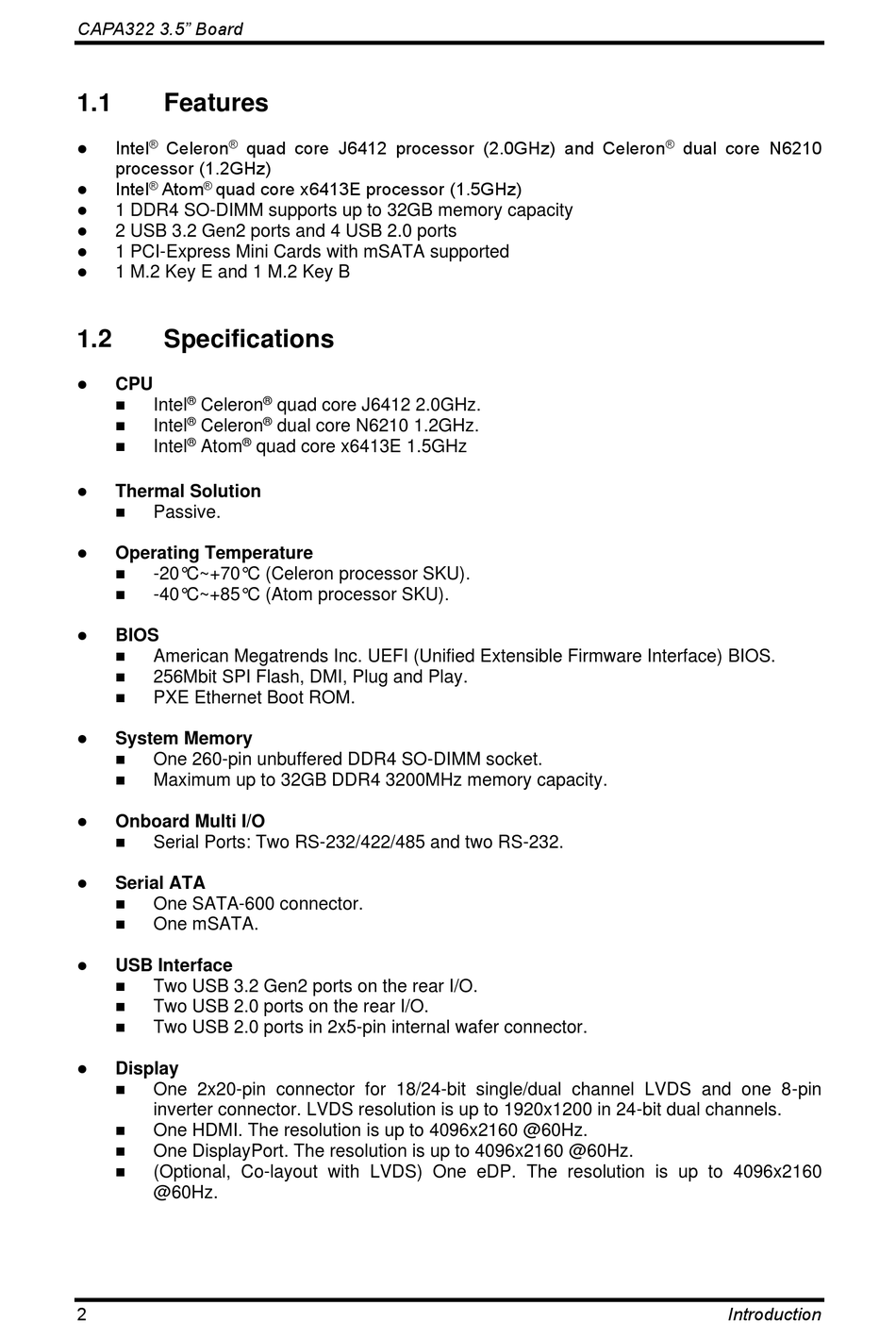

CAPA322 3.5" Board
1.1

Features

® Celeron ®
⚫
Intel
processor (1.2GHz)
Intel ® Atom ® quad core x6413E processor (1.5GHz)
⚫
⚫ 1 DDR4 SO-DIMM supports up to 32GB memory capacity
⚫ 2 USB 3.2 Gen2 ports and 4 USB 2.0 ports
⚫ 1 PCI-Express Mini Cards with mSATA supported
⚫ 1 M.2 Key E and 1 M.2 Key B
1.2

Specifications

⚫ CPU
®
◼ Intel Celeron
®
◼ Intel Celeron
® ®
◼ Intel Atom
⚫ Thermal Solution
◼ Passive.
⚫ Operating Temperature
◼
-20°C~+70°C (Celeron processor SKU).
◼ -40°C~+85°C (Atom processor SKU).
⚫ BIOS
◼ American Megatrends Inc. UEFI (Unified Extensible Firmware Interface) BIOS.
◼ 256Mbit SPI Flash, DMI, Plug and Play.
◼ PXE Ethernet Boot ROM.
⚫ System Memory
◼ One 260-pin unbuffered DDR4 SO-DIMM socket.
◼ Maximum up to 32GB DDR4 3200MHz memory capacity.
⚫ Onboard Multi I/O
◼ Serial Ports: Two RS-232/422/485 and two RS-232.
⚫ Serial ATA
◼ One SATA-600 connector.
◼ One mSATA.
⚫
USB Interface
◼ Two USB 3.2 Gen2 ports on the rear I/O.
◼ Two USB 2.0 ports on the rear I/O.
◼ Two USB 2.0 ports in 2x5-pin internal wafer connector.
⚫ Display
◼ One 2x20-pin connector for 18/24-bit single/dual channel LVDS and one 8-pin
inverter connector. LVDS resolution is up to 1920x1200 in 24-bit dual channels.
◼ One HDMI. The resolution is up to 4096x2160 @60Hz.
◼ One DisplayPort. The resolution is up to 4096x2160 @60Hz.
◼ (Optional, Co-layout with LVDS) One eDP. The resolution is up to 4096x2160
@60Hz.
2
quad core J6412 processor (2.0GHz) and Celeron
®
quad core J6412 2.0GHz.
®
dual core N6210 1.2GHz.
quad core x6413E 1.5GHz
® dual core N6210
Introduction
