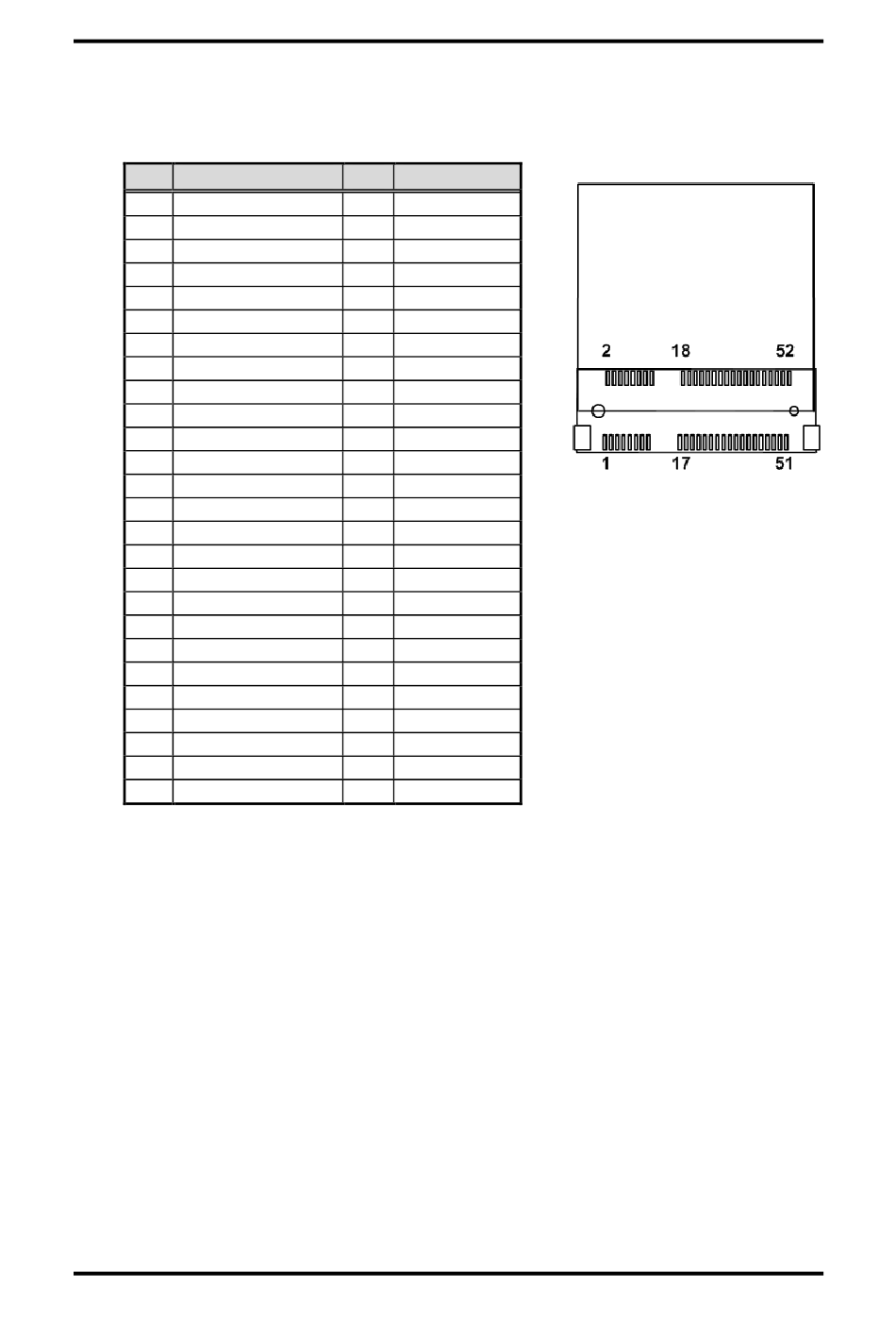

Half-size PCI-Express Mini Card Connector (MINI_PCIE1)

This is a half-size PCI-Express Mini Card connector applying to PCI-Express. It also
complies with PCI-Express Mini Card Spec. V1.2.
Pin Signal
1 WAKE#
3 N.C
5 N.C
7 CLKREQ#
9 GND
11 CLKOUT_PCIE_N
13 CLKOUT_PCIE_P
15 GND
17 N.C
19 N.C
21 GND
23 PCIE1_RX_N
25 PCIE1_RX_D
27 GND
29 GND
31 PCIE1_TX_N
33 PCIE1_TX_P
35 GND
37 GND
39 +3.3VSB
41 +3.3VSB
43 GND
45 N.C
47 N.C
49 N.C
51 N.C
Board and Pin Assignments
Pin Signal
2 +3.3VAUX
4 GND
6 +1.5V
8 N.C
10 N.C
12 N.C
14 N.C
16 N.C
18 GND
20 N.C
22 PERST#
24 +3.3VAUX
26 GND
28 +1.5V
30 SMB_CLK
32 SMB_DATA
34 GND
36 N.C
38 N.C
40 GND
42 N.C
44 N.C
46 N.C
48 +1.5V
50 GND
52 +3.3VAUX
